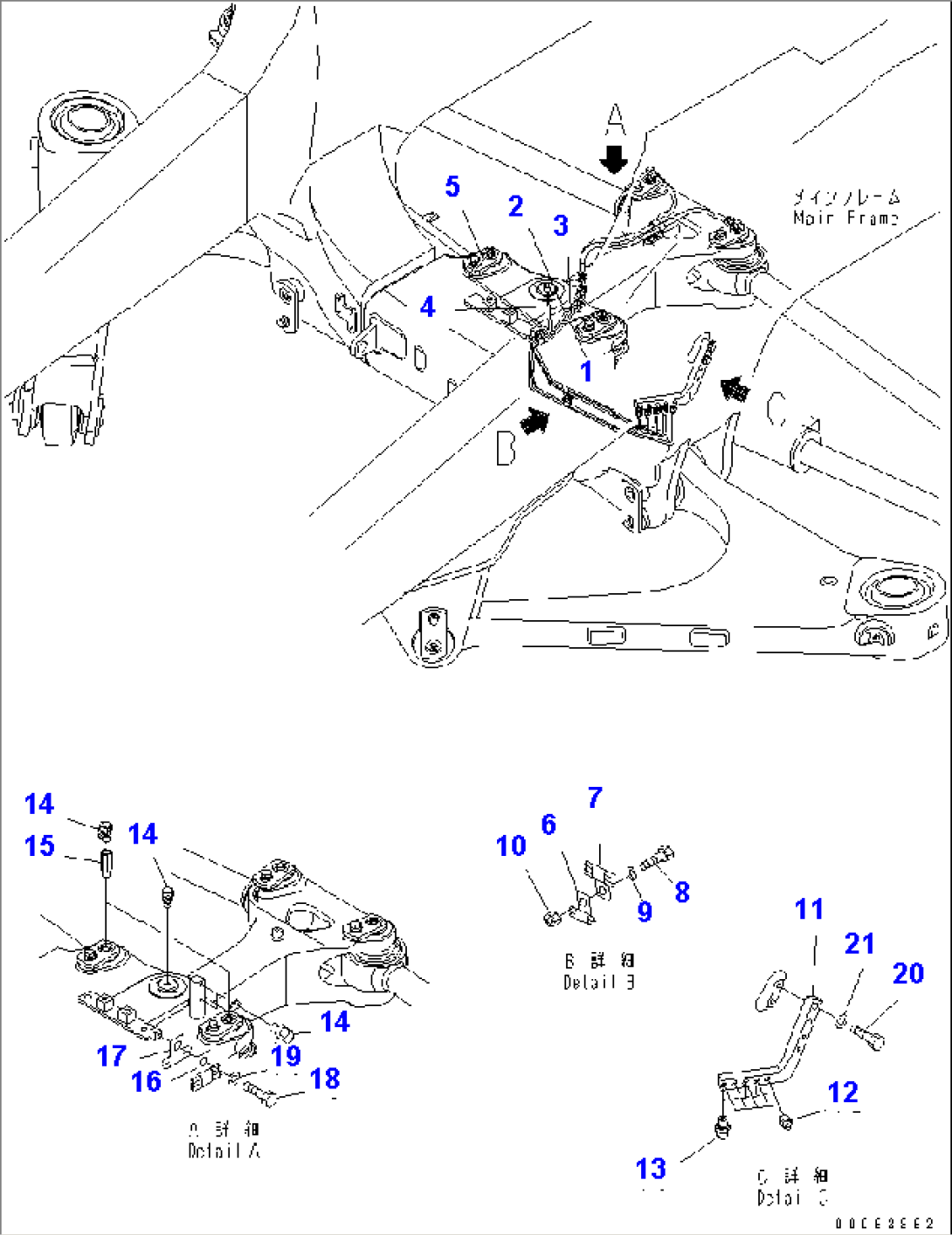

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-52-82491 | TUBE | A10001- | |
| 2 | 561-52-82481 | TUBE | A10001- | |
| 3 | 561-52-82452 | TUBE | A10001- | |
| 4 | 561-52-82472 | TUBE | A10001- | |
| 5 | 561-52-82462 | TUBE | A10001- | |
| 6 | 561-52-62590 | CLIP | A10001- | |
| 7 | 569-52-62130 | CLIP | A10001- | |
| 8 | 01010-81020 | BOLT | A10001- | |
| 9 | 01643-31032 | WASHER | A10001- | |
| 10 | 01580-11008 | NUT | A10001- | |
| 11 | 561-52-82231 | JOINT | A10001- | |
| 12 | 07020-00000 | FITTING | A10001- | |
| 13 | 423-09-12110 | CONNECTOR | A10001- | |
| 14 | 421-09-12540 | ELBOW | A10001- | |
| 15 | 562-95-13150 | NIPPLE | A10001- | |
| 16 | 569-52-62130 | CLIP | A10001- | |
| 17 | 561-52-62590 | CLIP | A10001- | |
| 18 | 01010-81020 | BOLT | A10001- | |
| 19 | 01643-31032 | WASHER | A10001- | |
| 20 | 01010-81240 | BOLT | A10001- | |
| 21 | 01643-31232 | WASHER | A10001- |
