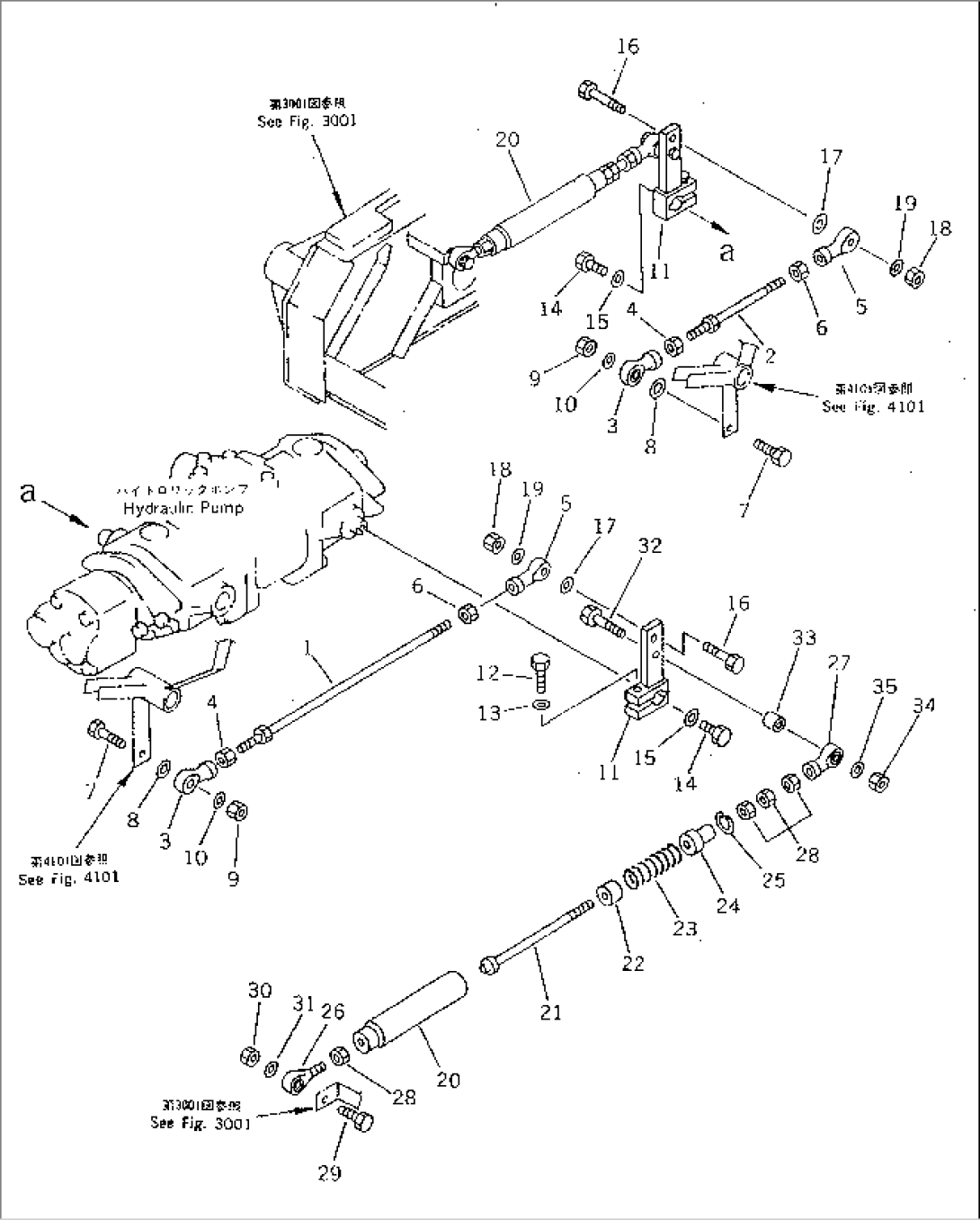

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04248-31036 | ROD | 1001- | |
| 2 | 04248-31011 | ROD | 1001- | |
| 3 | 04250-81056 | END,ROD | 1001- | |
| 4 | 01582-11006 | NUT | 1001- | |
| 5 | 04250-91056 | END,ROD | 1001- | |
| 6 | 01508-41006 | NUT | 1001- | |
| 7 | 01010-51040 | BOLT | 1001- | |
| 8 | 04254-11032 | SPACER | 1001- | |
| 9 | 01580-11008 | NUT | 1001- | |
| 10 | 01643-31032 | WASHER | 1001- | |
| 11 | FF7830-40410 | LEVER | 1001- | |
| 12 | 01010-50835 | BOLT | 1001- | |
| 13 | 01643-30823 | WASHER | 1001- | |
| 14 | 01010-50812 | BOLT | 1001- | |
| 15 | 01643-30823 | WASHER | 1001- | |
| 16 | 01010-51040 | BOLT | 1001- | |
| 17 | 04254-11032 | SPACER | 1001- | |
| 18 | 01580-11008 | NUT | 1001- | |
| 19 | 01643-31032 | WASHER | 1001- | |
| FF7830-40500 | GUIDE ASS'Y | 1001- | ||
| 20 | FF7810-40810 | GUIDE | 1001- | |
| 21 | FF7810-40850 | ROD | 1001- | |
| 22 | FF7810-40821 | RETAINER | 1001- | |
| 23 | FF7810-40840 | SPRING | 1001- | |
| 24 | FF7810-40830 | RETAINER | 1001- | |
| 25 | 04065-02812 | RING,SNAP | 1001- | |
| 26 | 04252-21061 | END,ROD | 1001- | |
| 27 | 04250-81056 | END,ROD | 1001- | |
| 28 | 01582-11008 | NUT | 1001- | |
| 29 | 01010-51040 | BOLT | 1001- | |
| 30 | 01580-11008 | NUT | 1001- | |
| 31 | 01643-31032 | WASHER | 1001- | |
| 32 | 01010-51060 | BOLT | 1001- | |
| 33 | FF7830-40420 | SPACER | 1001- | |
| 34 | 01580-11008 | NUT | 1001- | |
| 35 | 01643-31032 | WASHER | 1001- |
