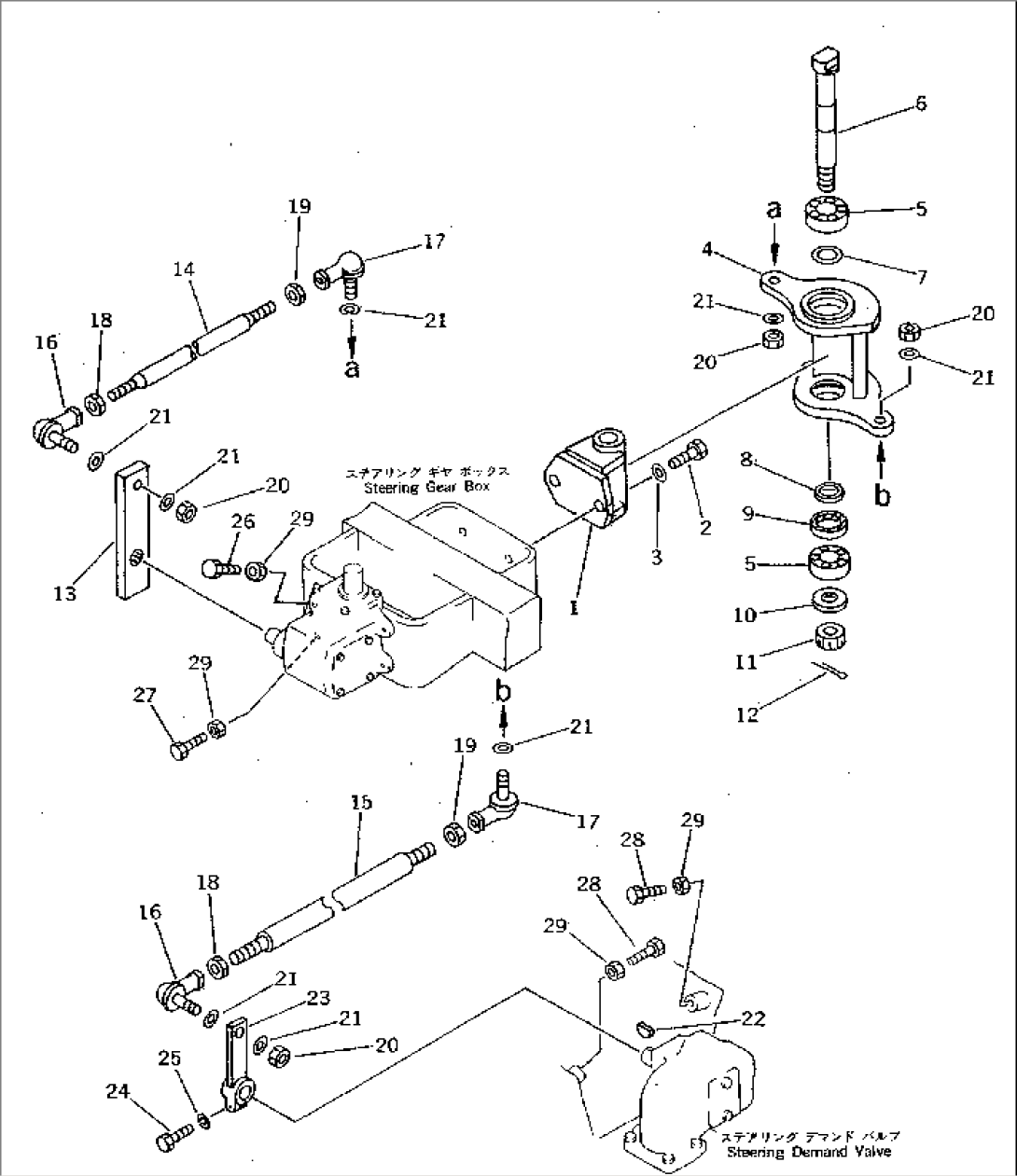

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-40-11171 | BRACKET | 10001-10499 | |
| 2 | 01010-51655 | BOLT | 10001-10499 | |
| 3 | 01643-31645 | WASHER | 10001-10499 | |
| 4 | 427-40-11161 | BRACKET | 10001-10499 | |
| 5 | 421-40-11411 | BEARING | 10001-@ | |
| 6 | 427-40-11151 | SHAFT | 10001-10499 | |
| 7 | 426-40-11130 | SPACER | 10001-@ | |
| 8 | 426-40-11110 | SPACER | 10001-@ | |
| 9 | 07145-00045 | SEAL | 10001-@ | |
| 10 | 01643-32460 | WASHER | 10001-@ | |
| 11 | 01590-12427 | NUT | 10001-@ | |
| 12 | 04050-15045 | PIN,COTTER | 10001-@ | |
| 13 | 427-40-11180 | PLATE | 10001-10499 | |
| 14 | 427-40-11110 | ROD | 10001-10499 | |
| 15 | 427-40-11120 | ROD | 10001-@ | |
| 16 | 421-40-11381 | JOINT | 10001-@ | |
| 17 | 421-40-11371 | JOINT | 10001-@ | |
| 18 | 01580-11613 | NUT | 10001-@ | |
| 19 | 421-40-11390 | NUT | 10001-@ | |
| 20 | 421-40-11510 | NUT | 10001-@ | |
| 21 | 01643-31645 | WASHER | 10001-@ | |
| 22 | 04010-00519 | KEY | 10001-@ | |
| 23 | 427-40-11131 | LEVER | 10001-10499 | |
| 24 | 01010-50830 | BOLT | 10001-@ | |
| 25 | 01602-20825 | WASHER,SPRING | 10001-@ | |
| 26 | 01016-51250 | BOLT | 10001-10499 | |
| 27 | 01016-51260 | BOLT | 10001-@ | |
| 28 | 01016-51255 | BOLT | 10001-@ | |
| 29 | 01580-11210 | NUT | 10001-@ |
