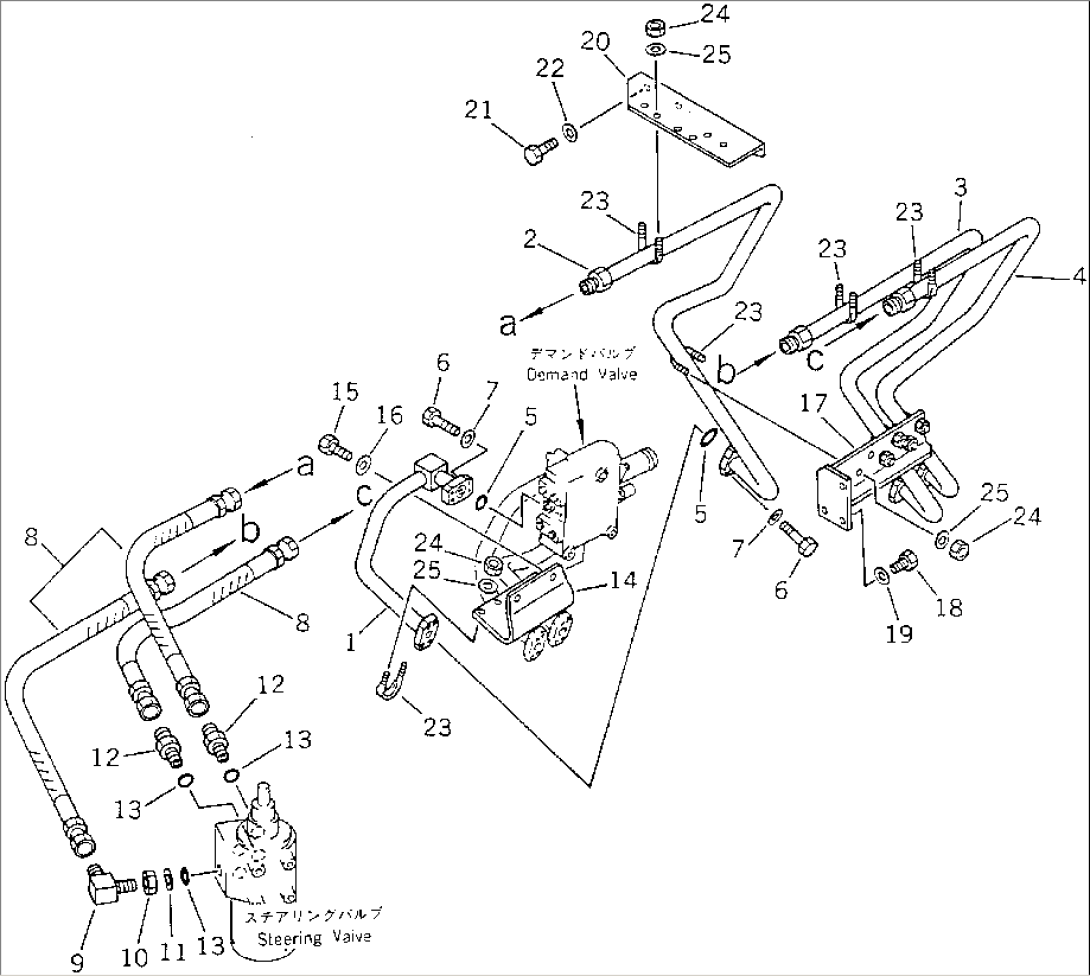

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-61-49110 | TUBE | 2001- | |
| 2 | 566-61-49121 | TUBE | 2001- | |
| 3 | 566-61-49151 | TUBE | 2001- | |
| 4 | 566-61-49191 | TUBE | 2001- | |
| 5 | 07000-23032 | O-RING (K31) | 2001- | |
| 6 | 07372-21040 | BOLT | 2001- | |
| 7 | 01643-51032 | WASHER | 2001- | |
| 8 | 566-61-49220 | HOSE | 2001- | |
| 9 | 561-61-44431 | ELBOW | 2085- | |
| 9 | \0\561-61-44430 | ELBOW | 2001-2084 | |
| 10 | 437-40-26230 | NUT | 2001-2084 | |
| 11 | 437-40-26240 | WASHER | 2001-2084 | |
| 12 | 561-61-44420 | NIPPLE | 2001- | |
| 13 | 437-40-22310 | O-RING (K31) | 2001- | |
| 14 | 566-61-49510 | BRACKET | 2001- | |
| 15 | 01010-51230 | BOLT | 2001- | |
| 16 | 01643-31232 | WASHER | 2001- | |
| 17 | 566-61-49521 | BRACKET | 2001- | |
| 18 | 01010-51230 | BOLT | 2001- | |
| 19 | 01643-31232 | WASHER | 2001- | |
| 20 | 566-61-49550 | BRACKET | 2001- | |
| 21 | 01010-51230 | BOLT | 2001- | |
| 22 | 01643-31232 | WASHER | 2001- | |
| 23 | 07283-23442 | CLIP | 2001- | |
| 24 | 01599-01011 | NUT | 2001- | |
| 25 | 01643-31232 | WASHER | 2001- |
