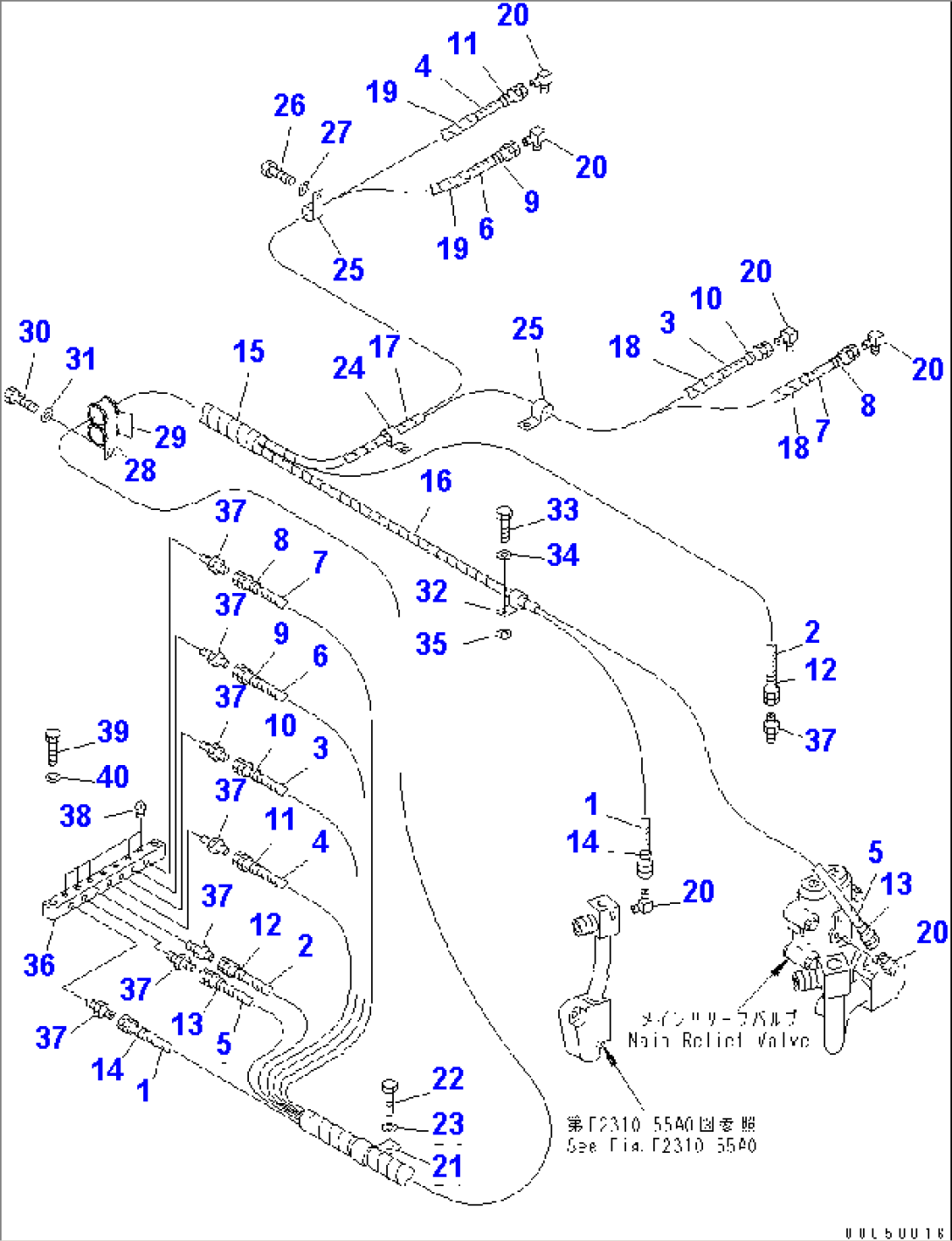

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 134-49-61650 | HOSE, 1550MM | 1001- | |
| 2 | 134-49-61690 | HOSE, 1140MM | 1001- | |
| 3 | 14X-49-11970 | HOSE, 1700MM | 1001- | |
| 4 | 14X-49-11970 | HOSE, 1700MM | 1001- | |
| 5 | 17A-49-17721 | HOSE, 1600MM | 1001- | |
| 6 | 17M-22-28320 | HOSE, 1700MM | 1001- | |
| 7 | 17M-22-28290 | HOSE, 1800MM | 1001- | |
| 8 | 203-62-57910 | MARK, 1 | 1001- | |
| 9 | 203-62-57920 | MARK, 2 | 1001- | |
| 10 | 203-62-57930 | MARK, 3 | 1001- | |
| 11 | 203-62-57940 | MARK, 4 | 1001- | |
| 12 | 203-62-57950 | MARK, 5 | 1001- | |
| 13 | 203-62-57960 | MARK, 6 | 1001- | |
| 14 | 203-62-57970 | MARK, 7 | 1001- | |
| 15 | 08210-01811 | SPIRAL TUBE | 1001- | |
| 16 | 08210-01804 | SPIRAL TUBE | 1001- | |
| 17 | 08210-01803 | SPIRAL TUBE | 1001- | |
| 18 | 08210-00603 | SPIRAL TUBE | 1001- | |
| 19 | 08210-00602 | SPIRAL TUBE | 1004- | |
| 20 | 202-62-21430 | ELBOW | 1001- | |
| 21 | 04434-52712 | CLIP | 1001- | |
| 22 | 01010-81020 | BOLT | 1001- | |
| 23 | 01643-31032 | WASHER | 1001- | |
| 24 | 04434-52312 | CLIP | 1001- | |
| 25 | 04434-51912 | CLIP | 1001- | |
| 26 | 01010-81220 | BOLT | 1001- | |
| 27 | 01643-31232 | WASHER | 1001- | |
| 28 | 569-06-61980 | CLIP | 1001- | |
| 29 | 07095-20522 | CUSHION | 1001- | |
| 30 | 01010-81020 | BOLT | 1001- | |
| 31 | 01643-31032 | WASHER | 1001- | |
| 32 | 04434-51912 | CLIP | 1001- | |
| 33 | 01010-81240 | BOLT | 1001- | |
| 34 | 01643-31232 | WASHER | 1001- | |
| 35 | 01643-31232 | WASHER | 1001- | |
| 36 | 134-49-61410 | BLOCK | 1001- | |
| 37 | 203-62-21740 | NIPPLE | 1001- | |
| 38 | 07042-20108 | PLUG | 1001- | |
| 39 | 01010-81225 | BOLT | 1004- | |
| 39 | 01010-81245 | BOLT | 1001-1003 | |
| 40 | 01643-31232 | WASHER | 1001- |
