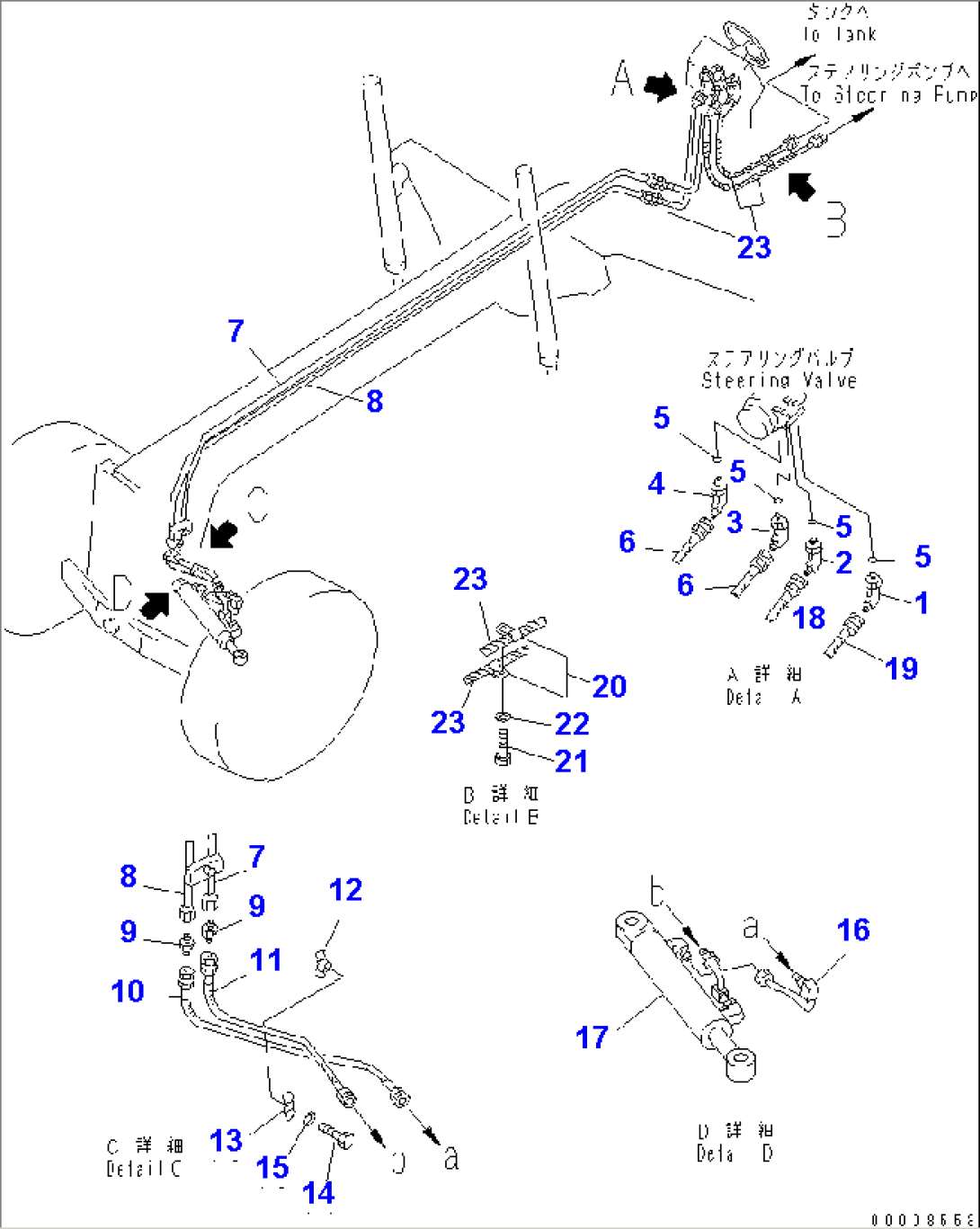

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23A-40-12230 | ELBOW | 12001- | |
| 2 | 23A-40-12240 | ELBOW | 12001- | |
| 3 | 23A-40-12250 | ELBOW | 12001- | |
| 4 | 23A-40-12260 | ELBOW | 12001- | |
| 5 | 237-40-13160 | O-RING | 12001- | |
| 6 | 230-09-23180 | HOSE | 12001- | |
| 7 | 23A-40-12430 | TUBE | 12001- | |
| 8 | 23A-40-12440 | TUBE | 12001- | |
| 9 | 234-40-51450 | NIPPLE | 12001- | |
| 10 | 23A-40-12330 | HOSE | 12001- | |
| 11 | 23A-40-12340 | HOSE | 12001- | |
| 12 | 237-60-23360 | CLIP | 12001- | |
| 13 | 236-60-24920 | CLIP | 12001- | |
| 14 | 01010-50840 | BOLT | 12001- | |
| 15 | 01643-30823 | WASHER | 12001- | |
| 16 | 23A-40-12190 | TUBE | 12001- | |
| 17 | (23B-63-X1330) | CYLINDER ASS'Y | 12212- | |
| 17 | (\0\23B-63-Z1330) | CYLINDER ASS'Y | 12194-12211 | |
| 18 | 07108-20520 | HOSE | 12001- | |
| 19 | 07102-20519 | HOSE | 12001- | |
| 20 | 08036-02514 | CLIP | 12001- | |
| 21 | 01010-51016 | BOLT | 12001- | |
| 22 | 01643-31032 | WASHER | 12001- | |
| 23 | 273-60-24450 | TUBE,SPIRAL | 12001- |
