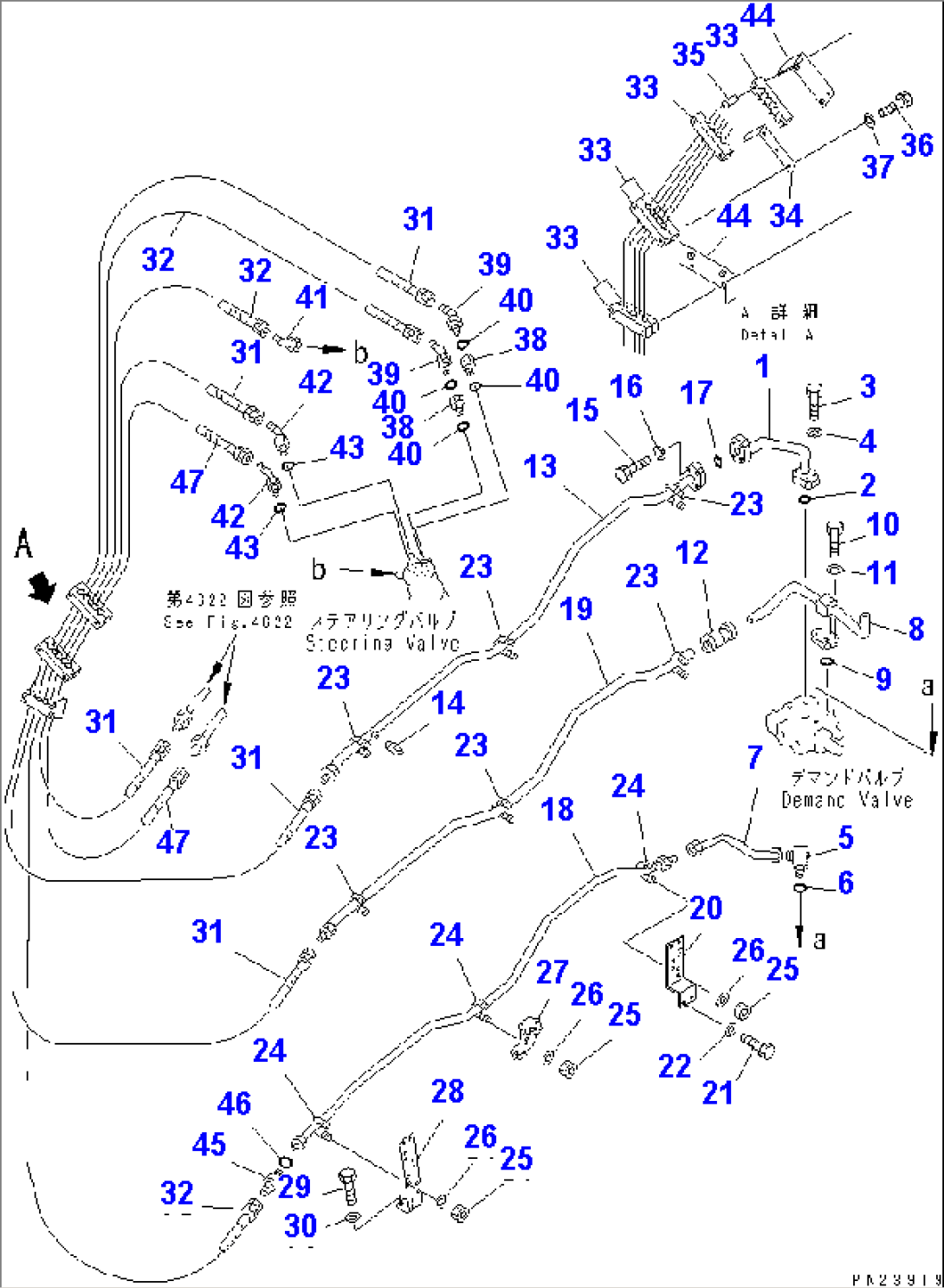

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-61-6D110 | TUBE | 1002- | |
| 1 | 561-61-64111 | TUBE | 1001-1001 | |
| 2 | 07000-23045 | O-RING | 1001- | |
| 3 | 01010-51240 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 205-62-67270 | ELBOW | 1001- | |
| 6 | 07002-21423 | O-RING | 1001- | |
| 7 | 561-61-6D170 | TUBE | 1002- | |
| 7 | 561-61-64171 | TUBE | 1001-1001 | |
| 8 | 561-61-6D160 | TUBE | 1002- | |
| 8 | 561-61-64161 | TUBE | 1001-1001 | |
| 9 | 07000-23048 | O-RING | 1001- | |
| 10 | 01010-51240 | BOLT | 1001- | |
| 11 | 01643-51232 | WASHER | 1001- | |
| 12 | 07332-01000 | COUPLING ASS'Y | 1001- | |
| 12 | 07332-51000 | GASKET | 1001- | |
| 12 | 07332-61000 | CLAMP | 1001- | |
| 13 | 561-61-64121 | TUBE | 1001- | |
| 14 | 07042-20108 | PLUG | 1001- | |
| 15 | 07372-21040 | BOLT | 1001- | |
| 16 | 01643-51032 | WASHER | 1001- | |
| 17 | 07000-23035 | O-RING | 1001- | |
| 18 | 561-61-64182 | TUBE | 1001- | |
| 19 | 561-61-64151 | TUBE | 1001- | |
| 20 | 561-61-64211 | BRACKET | 1001- | |
| 21 | 01010-51230 | BOLT | 1001- | |
| 22 | 01643-31232 | WASHER | 1001- | |
| 23 | 07283-23442 | CLIP | 1001- | |
| 24 | 07283-22236 | CLIP | 1001- | |
| 25 | 01599-01011 | NUT | 1001- | |
| 26 | 01643-31032 | WASHER | 1001- | |
| 27 | 561-44-67471 | BRACKET | 1001- | |
| 28 | 561-61-64231 | BRACKET | 1001- | |
| 29 | 01010-51230 | BOLT | 1001- | |
| 30 | 01643-31232 | WASHER | 1001- | |
| 31 | 07086-00622 | HOSE | 1002- | |
| 32 | 07086-00323 | HOSE | 1001- | |
| 33 | 561-61-64510 | CLAMP | 1001- | |
| 34 | 561-61-64520 | PLATE | 1001- | |
| 35 | 561-61-64530 | SPACER | 1001- | |
| 36 | 01010-51290 | BOLT | 1001- | |
| 37 | 01643-31232 | WASHER | 1001- | |
| 38 | 561-61-64271 | UNION | 1001- | |
| 39 | 561-61-64290 | ELBOW | 1001- | |
| 40 | 437-40-22310 | O-RING | 1001- | |
| 41 | 561-61-64310 | ELBOW | 1001- | |
| 42 | 561-61-64280 | ELBOW | 1001- | |
| 43 | 15R-62-11320 | O-RING | 1001- | |
| 44 | 585-61-12920 | PLATE | 1001- | |
| 45 | 561-61-64550 | FILTER | 1001- | |
| 46 | 07002-22034 | O-RING | 1001- | |
| 47 | 07086-00620 | HOSE | 1002- | |
| 47 | 07086-00622 | HOSE | 1001-1001 |
