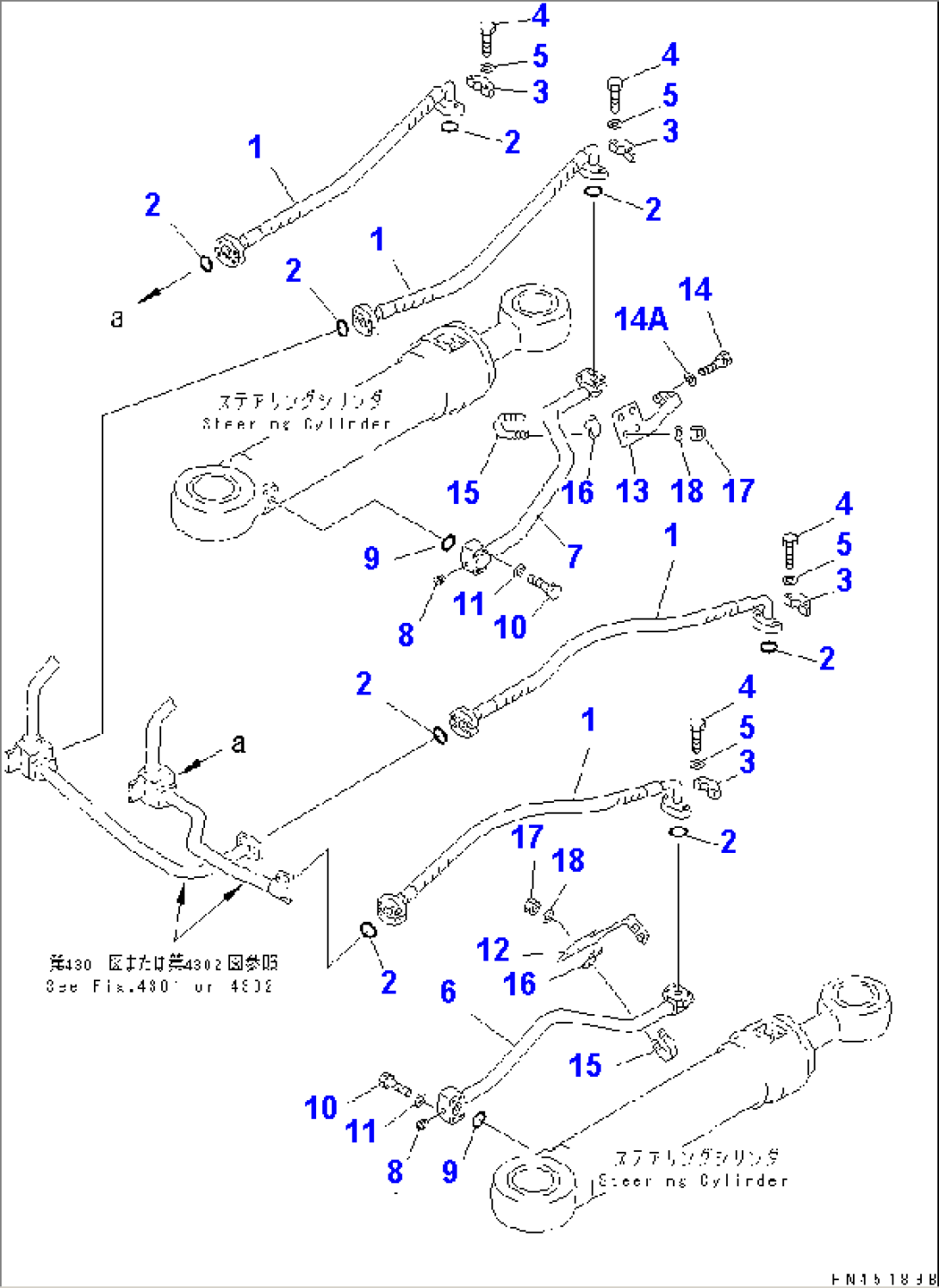

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-62-12610 | HOSE | 10001- | |
| 1 | (\2\428-62-11260) | HOSE | (10001-.) | |
| 1 | 428-62-12610 | HOSE,(WITH JOY STICK STEERING) | 10001- | |
| 2 | 07000-F3032 | O-RING | 10001- | |
| 3 | 07371-31049 | FLANGE,SPLIT | 10001- | |
| 4 | 07372-21035 | BOLT | 10001- | |
| 5 | 01643-51032 | WASHER | 10001- | |
| 6 | 428-62-11270 | TUBE | 10001- | |
| 7 | 428-62-11280 | TUBE | 10001- | |
| 8 | 07042-20108 | PLUG | 10001- | |
| 9 | 07000-F3035 | O-RING | 10001- | |
| 10 | 01010-81060 | BOLT | 10001- | |
| 11 | 01643-51032 | WASHER | 10001- | |
| 12 | 428-62-11311 | PLATE,L.H. | 10001- | |
| 13 | 428-62-11321 | PLATE,R.H. | 10001- | |
| 14 | 01010-81240 | BOLT | 10001- | |
| 14A | 01643-51232 | WASHER | 10001- | |
| 15 | 07283-33450 | CLIP | 10001- | |
| 16 | 07283-53444 | SEAT | 10001- | |
| 17 | 01582-11008 | NUT | 10001- | |
| 18 | 01643-31032 | WASHER | 10001- |
