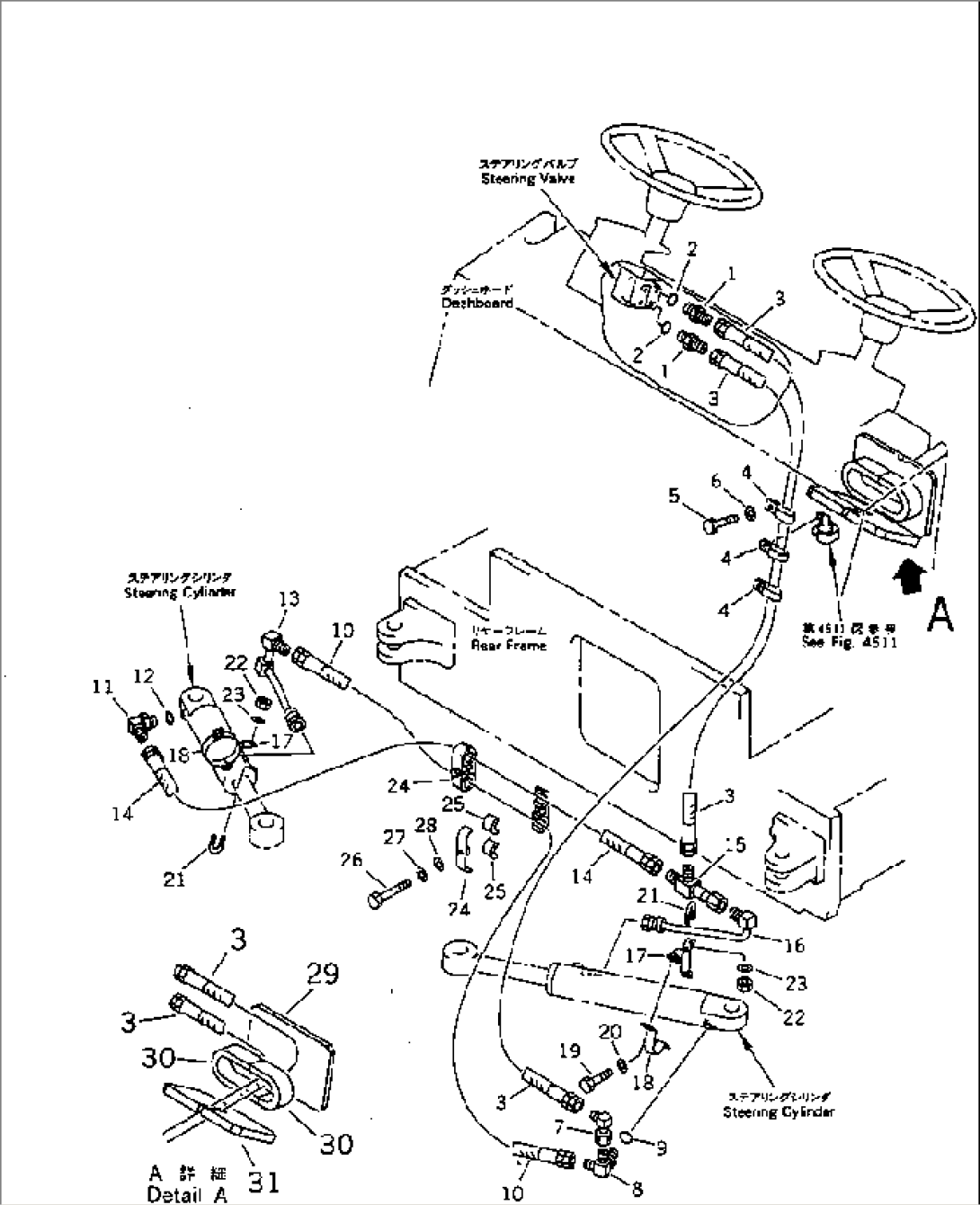

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 233-40-31110 | NIPPLE | 10001- | |
| 2 | 234-40-33290 | O-RING | 10001- | |
| 3 | 07108-20423 | HOSE | 10001- | |
| 4 | 04435-52110 | CLIP | 10001- | |
| 5 | 01010-51020 | BOLT | 10001- | |
| 6 | 01643-31032 | WASHER | 10001- | |
| 7 | 237-60-22160 | ELBOW | 10001- | |
| 8 | 232-60-69510 | ELBOW | 10001- | |
| 9 | 07002-12034 | O-RING | 10001- | |
| 10 | 07108-20413 | HOSE | 10001- | |
| 11 | 07235-10422 | ELBOW | 10001- | |
| 12 | 07002-12034 | O-RING | 10001- | |
| 13 | 278-40-12150 | TUBE,R.H. | 10001- | |
| 14 | 07108-20411 | HOSE | 10001- | |
| 15 | 278-40-12220 | ELBOW | 10001- | |
| 16 | 278-40-12160 | TUBE,L.H. | 10001- | |
| 17 | 278-40-12170 | CLIP | 10001- | |
| 18 | 278-40-12180 | CLIP | 10001- | |
| 19 | 01010-50820 | BOLT | 10001- | |
| 20 | 01643-30823 | WASHER | 10001- | |
| 21 | 07283-21529 | CLIP | 10001- | |
| 22 | 01598-00809 | NUT | 10001- | |
| 23 | 01643-30823 | WASHER | 10001- | |
| 24 | 07094-30417 | CLAMP | 10001- | |
| 25 | 07095-00420 | CUSHION | 10001- | |
| 26 | 01010-51265 | BOLT | 10001- | |
| 27 | 01643-31232 | WASHER | 10001- | |
| 28 | 01640-21223 | WASHER | 10001- | |
| 29 | 278-54-11650 | SHEET | 10009- | |
| 30 | 278-54-11640 | SHEET | 10009- | |
| 31 | 278-54-11630 | SHEET | 10009- |
