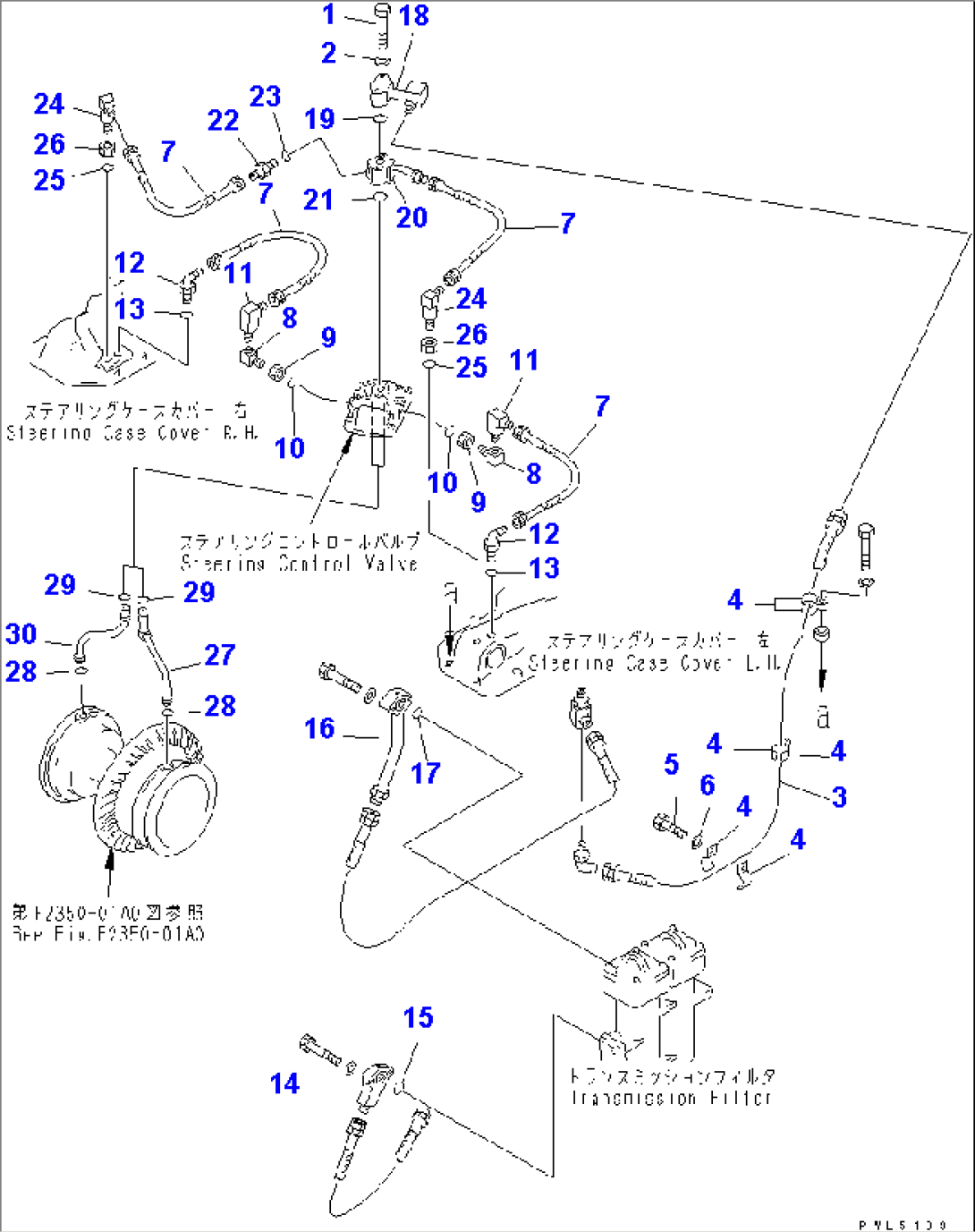

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01011-81020 | BOLT | 3689- | |
| 2 | 01643-31032 | WASHER | 3689- | |
| 3 | 07102-20616 | HOSE | 3689- | |
| 4 | 154-49-51970 | CLAMP | 3689- | |
| 5 | 01010-81230 | BOLT | 3689- | |
| 6 | 01643-31232 | WASHER | 3689- | |
| 7 | 07102-20303 | HOSE | 3689- | |
| 8 | 195-49-13830 | ELBOW | 3689- | |
| 9 | 195-49-13840 | NUT | 3689- | |
| 10 | 07002-11623 | O-RING | 3689- | |
| 11 | 203-62-12330 | ELBOW | 3689- | |
| 12 | 07235-10315 | ELBOW | 3689- | |
| 13 | 07002-02034 | O-RING | 3689- | |
| 14 | 154-49-51751 | ELBOW | 3689- | |
| 15 | 07000-13035 | O-RING | 3689- | |
| 16 | 154-49-51760 | TUBE | 3689- | |
| 17 | 07000-13035 | O-RING | 3689- | |
| 18 | 154-49-51590 | TUBE | 3689- | |
| 19 | 07000-13028 | O-RING | 3689- | |
| 20 | 154-49-51570 | TUBE | 3689- | |
| 21 | 07000-13028 | O-RING | 3689- | |
| 22 | 07230-20315 | UNION | 3689- | |
| 23 | 07002-02034 | O-RING | 3689- | |
| 24 | 175-49-25670 | ELBOW | 3689- | |
| 25 | 07002-02034 | O-RING | 3689- | |
| 26 | 01583-12012 | NUT | 3689- | |
| 27 | 154-49-51651 | TUBE,L.H. | 3689- | |
| 28 | 07000-13022 | O-RING | 3689- | |
| 29 | 07000-12018 | O-RING | 3689- | |
| 30 | 154-49-51660 | TUBE,R.H. | 3689- |
