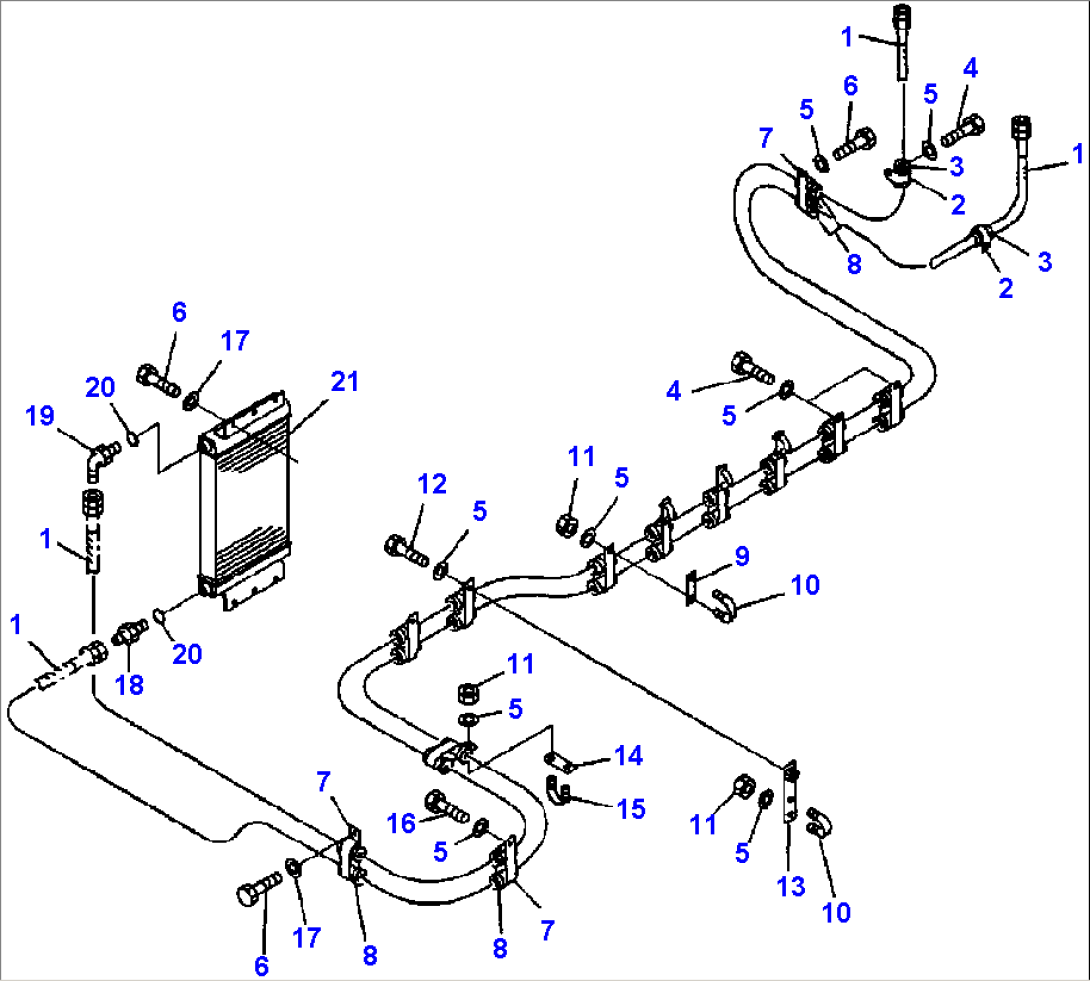

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-20661 | HOSE | ||
| 2 | 285-02-11320 | CLIP | ||
| 3 | 566-61-49810 | INSULATOR | ||
| 4 | 01010-81016 | CAPSCREW | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | 01010-81225 | CAPSCREW | ||
| 7 | 582-35-11170 | CLIP | ||
| 8 | 566-06-41290 | INSULATOR | ||
| 9 | 561-61-63660 | PLATE | ||
| 10 | 07283-24354 | CLIP | ||
| 11 | 01599-01011 | NUT | ||
| 12 | 01010-81025 | CAPSCREW | ||
| 13 | 561-61-63650 | PLATE | ||
| 14 | 569-54-41380 | PLATE | ||
| 15 | 07283-26155 | CLIP | ||
| 16 | 01010-81020 | CAPSCREW | ||
| 17 | 01643-31232 | WASHER | ||
| 18 | 07230-20628 | UNION | ||
| 19 | 07235-10628 | ELBOW | ||
| 20 | 07002-62434 | O-RING | ||
| 21 | 562-61-24910 | COOLER | ||
| NS|22 | NOTE: NS = NOT SHOWN | |||
| NS|23 | 561-61-63670 | BRACKET, COOLER MOUNTING | ||
| NS|24 | 01010-81245 | CAPSCREW | ||
| NS|25 | 01643-31232 | WASHER |
