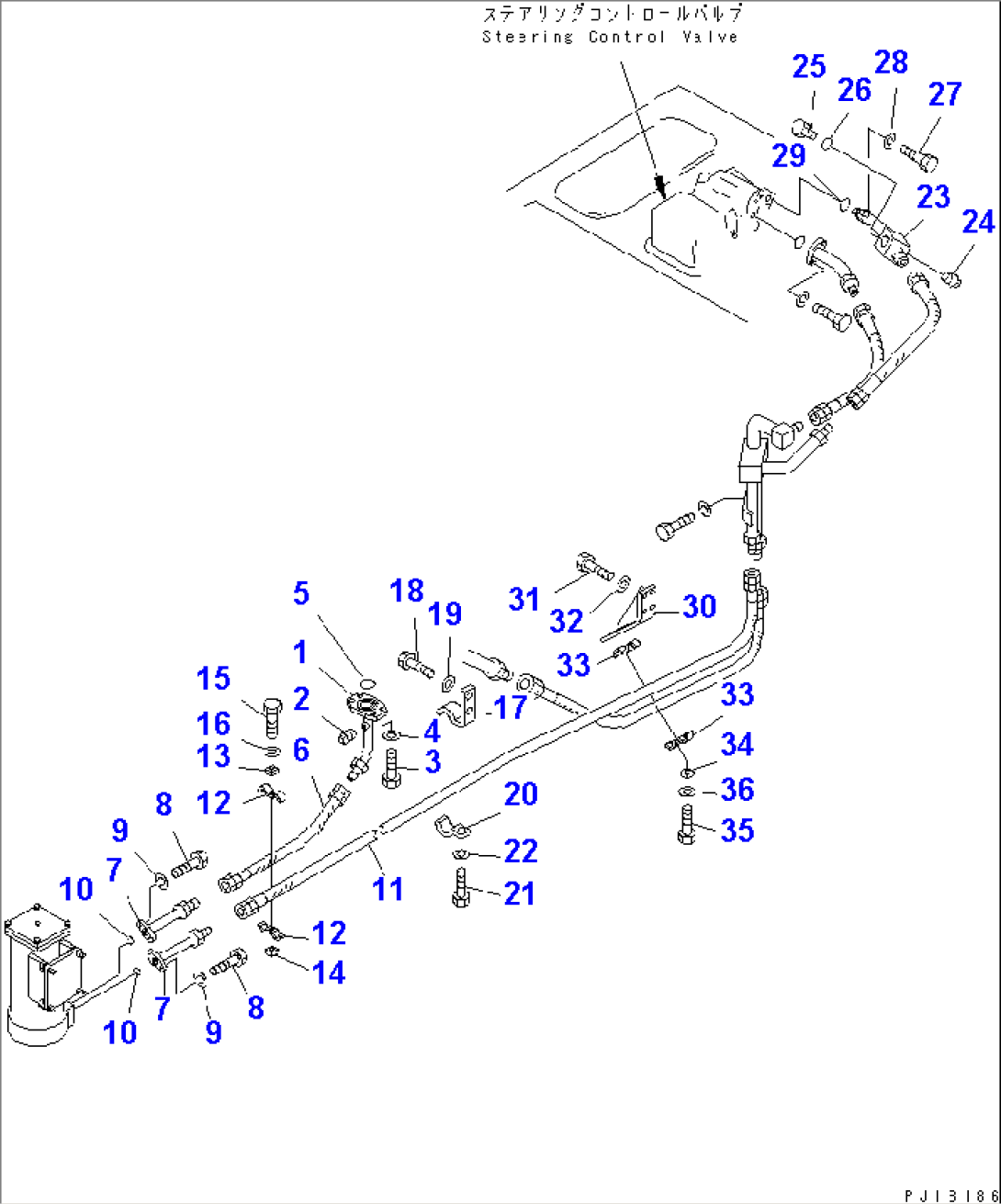

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 176-49-41150 | TUBE | 31416- | |
| 2 | 07042-10108 | PLUG | 31416- | |
| 3 | 01010-81240 | BOLT | 31416- | |
| 4 | 01643-31232 | WASHER | 31416- | |
| 5 | 07000-43035 | O-RING | 31416- | |
| 6 | 07102-21005 | HOSE | 31416- | |
| 7 | 176-49-41161 | TUBE | 31416- | |
| 8 | 01010-81030 | BOLT | 31416- | |
| 9 | 01602-21030 | WASHER | 31416- | |
| 10 | 07000-43035 | O-RING | 31416- | |
| 11 | 07102-21023 | HOSE | 31416- | |
| 12 | 175-49-22610 | CLAMP | 31416- | |
| 13 | 150-19-25330 | SEAT | 31416- | |
| 14 | 150-19-25290 | SEAT | 31416- | |
| 15 | 01010-81250 | BOLT | 31416- | |
| 16 | 01643-31232 | WASHER | 31416- | |
| 17 | 175-49-22212 | CLAMP | 31416- | |
| 18 | 01010-81230 | BOLT | 31416- | |
| 19 | 01643-31232 | WASHER | 31416- | |
| 20 | 175-49-22471 | CLAMP | 31416- | |
| 21 | 01010-81230 | BOLT | 31416- | |
| 22 | 01643-31232 | WASHER | 31416- | |
| 23 | 176-49-41182 | TUBE | 31416- | |
| 24 | 07042-10108 | PLUG | 31416- | |
| 25 | 07040-12012 | PLUG | 31416- | |
| 26 | 07002-42034 | O-RING | 31416- | |
| 27 | 01010-81030 | BOLT | 31416- | |
| 28 | 01602-21030 | WASHER | 31416- | |
| 29 | 07000-43032 | O-RING | 31416- | |
| 30 | 176-49-41310 | BRACKET | 31416- | |
| 31 | 01010-81245 | BOLT | 31416- | |
| 32 | 01643-31232 | WASHER | 31416- | |
| 33 | 150-19-25312 | CLAMP | 31416- | |
| 34 | 176-49-41330 | SEAT | 31416- | |
| 35 | 01010-81250 | BOLT | 31416- | |
| 36 | 01643-31232 | WASHER | 31416- |
