| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 267-97-62339 | HOSE | 1201- | |
| 2 | 258-07-02223 | ELBOW | 1201- | |
| 3 | 258-07-02323 | ADAPTER | 1201- | |
| 4 | 267-97-62332 | HOSE | 1201- | |
| 5 | 267-13-10303 | NIPPLE | 1201- | |
| 6 | 07000-12014 | O-RING | 1201- | |
| 7 | 258-07-02123 | ELBOW | 1201- |
- Главная
- Каталог запчастей
- Каток
- Jv25cw 2 s/n 1201 up
- Control system
- Steering piping (4/5) (steering valve line)
Поиск по каталогу

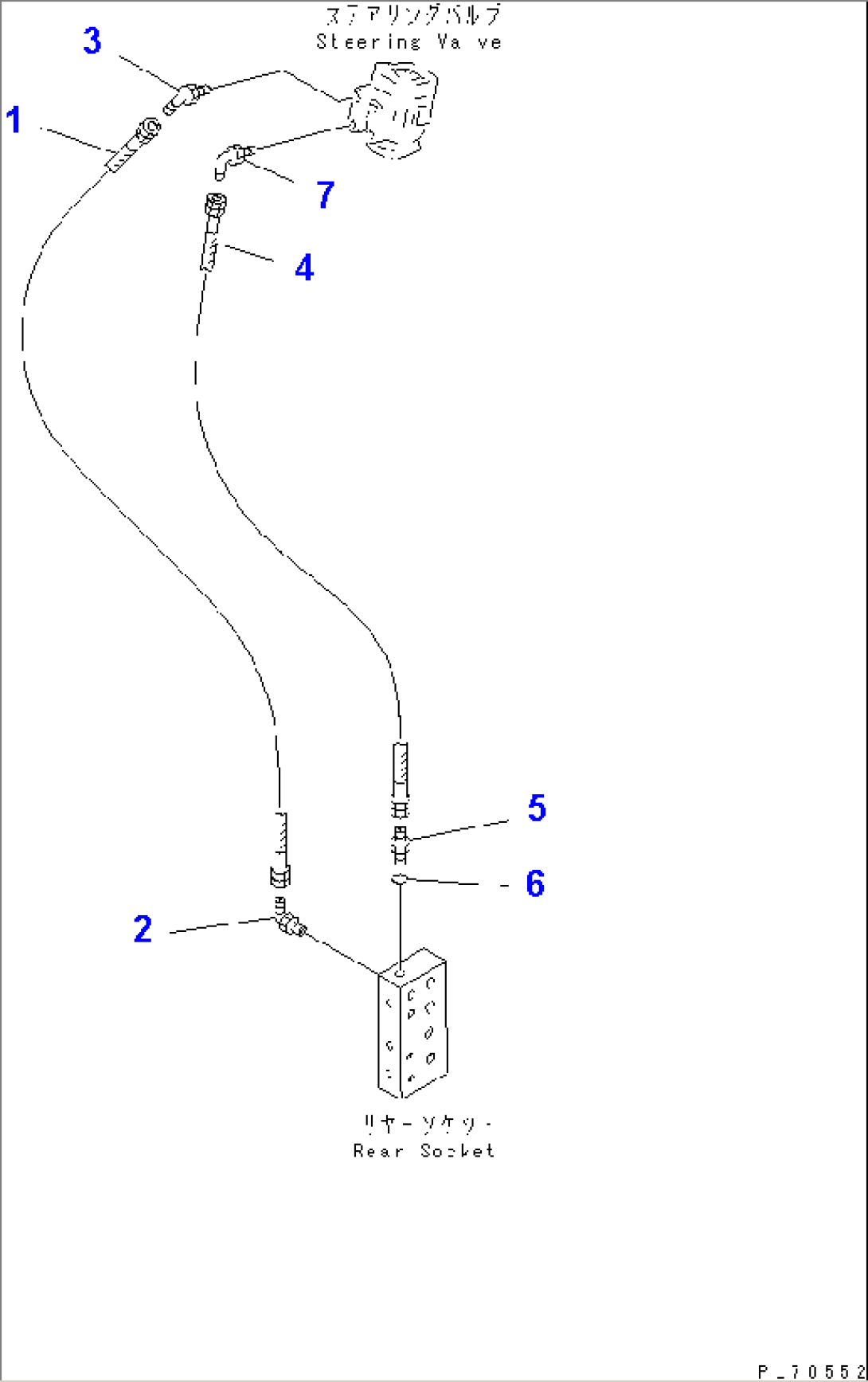

STEERING PIPING (4/5) (STEERING VALVE LINE)
