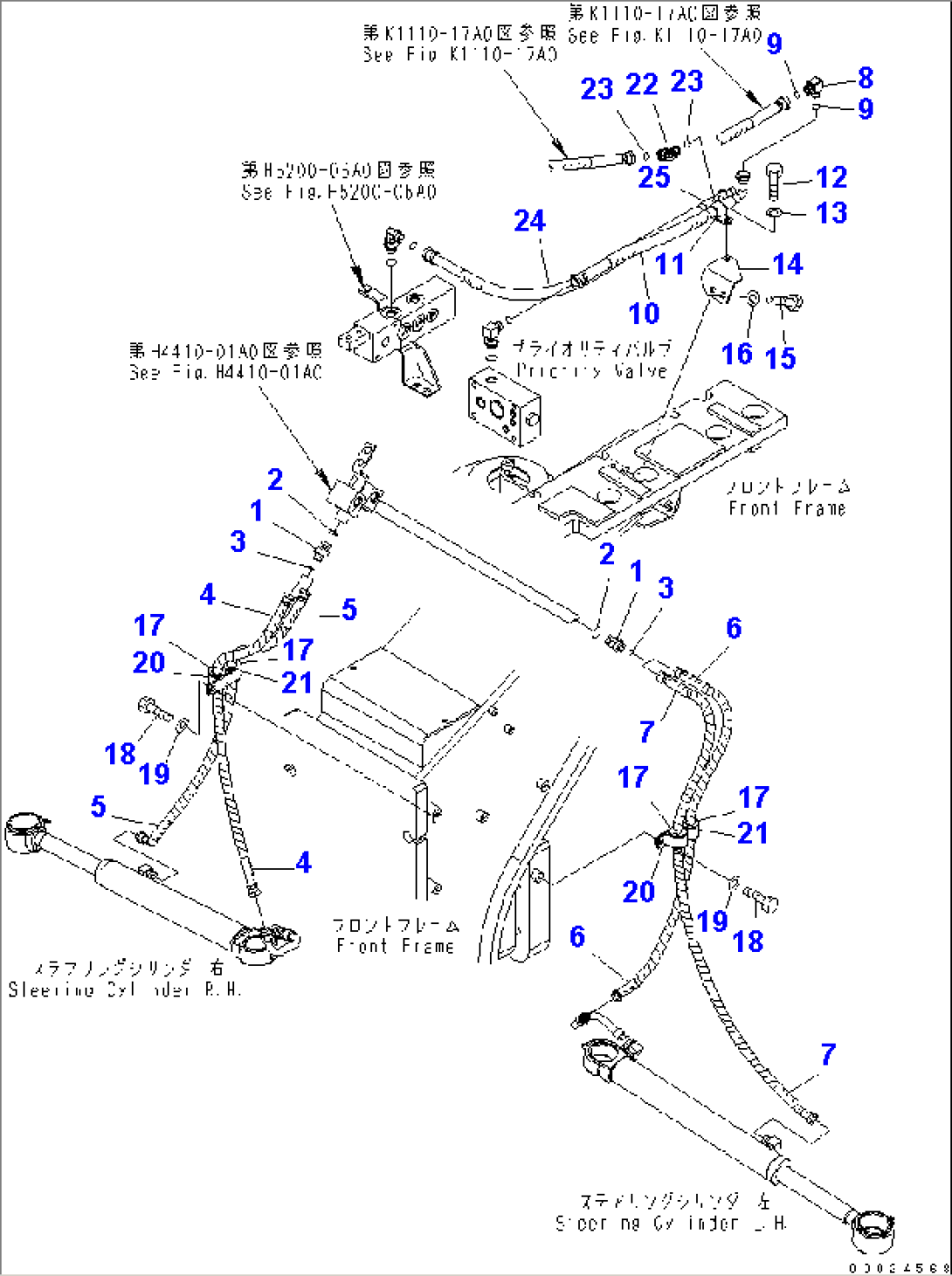

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02781-00315 | UNION | 30001- | |
| 2 | 07002-12034 | O-RING | 30001- | |
| 3 | 02896-11009 | O-RING | 30001- | |
| 4 | 23C-40-53220 | HOSE | 30001- | |
| 5 | 23C-40-53240 | HOSE | 30001- | |
| 6 | 23C-40-53210 | HOSE | 30001- | |
| 7 | 23C-40-53230 | HOSE | 30001- | |
| 8 | 23B-60-41191 | ELBOW | 30001- | |
| 9 | 02896-11012 | O-RING | 30001- | |
| 10 | 02754-00405 | HOSE | 30001- | |
| 11 | 04434-52310 | CLIP | 30001- | |
| 12 | 01010-81020 | BOLT | 30001- | |
| 13 | 01643-31032 | WASHER | 30001- | |
| 14 | 23C-60-52740 | BRACKET | 30001- | |
| 15 | 01010-81020 | BOLT | 30001- | |
| 16 | 01643-31032 | WASHER | 30001- | |
| 17 | 07095-20522 | CUSHION | 30001- | |
| 18 | 01010-81025 | BOLT | 30001- | |
| 19 | 01643-31032 | WASHER | 30001- | |
| 20 | 04434-53211 | CLIP | 30001- | |
| 21 | 23B-40-43210 | CLIP | 30001- | |
| 22 | 23B-60-41191 | ELBOW | 30001- | |
| 23 | 02896-11012 | O-RING | 30001- | |
| 24 | 02763-004A8 | HOSE | 30001- | |
| 25 | 23C-60-55110 | CLIP | 30001- |
