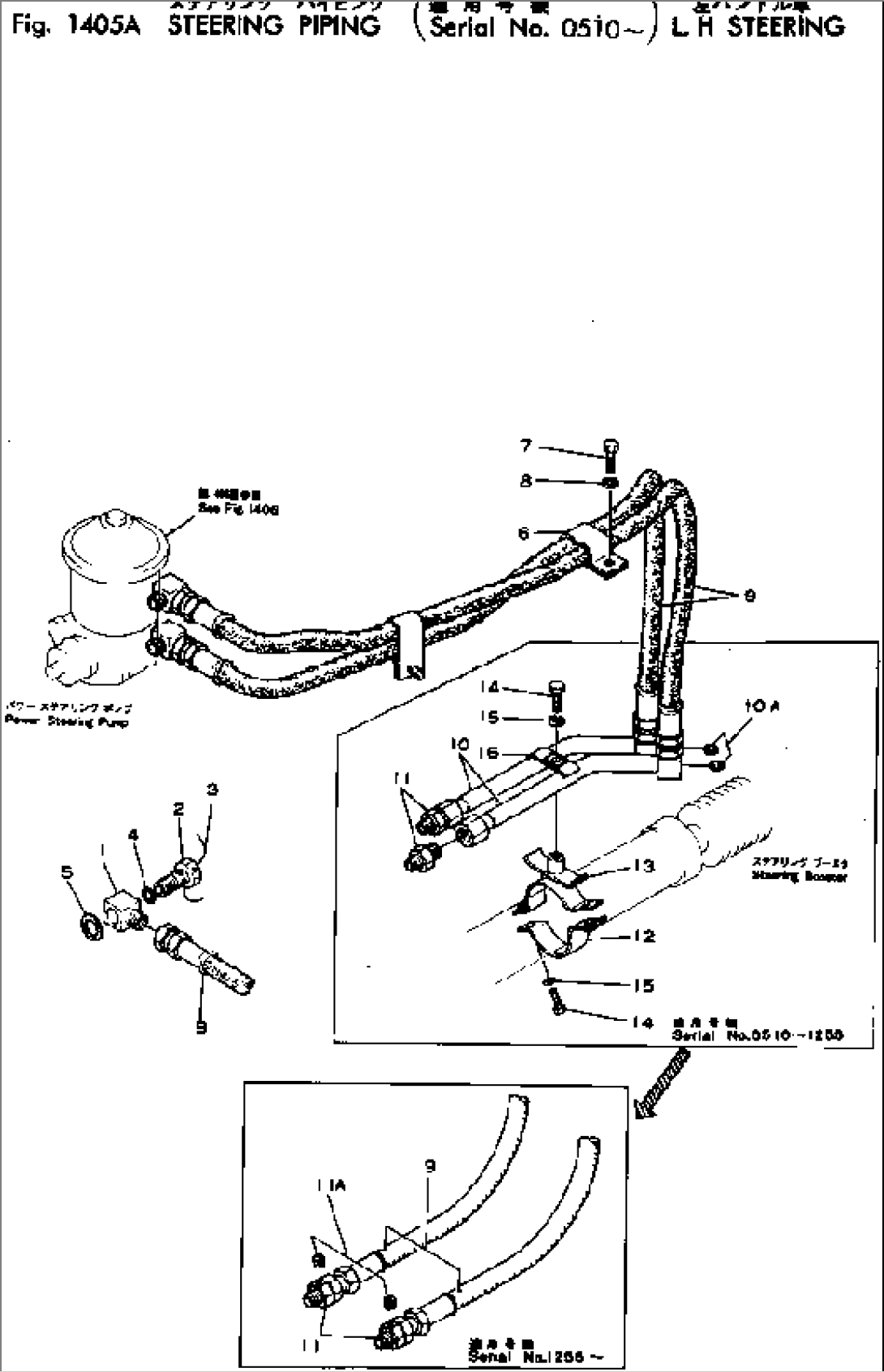

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 560-41-17110 | JOINT | 510- | |
| 2 | 560-41-17120 | BOLT | 510- | |
| 3 | 04059-01650 | WIRE | 510- | |
| 4 | 07000-02018 | O-RING | 510- | |
| 5 | 565-41-17880 | O-RING | 510- | |
| 6 | 560-41-17130 | CLIP | 510- | |
| 7 | 01010-51020 | BOLT | 516- | |
| 8 | 01602-21030 | WASHER | 510- | |
| 9 | 07104-20516 | HOSE | 1256- | |
| 07104-20513 | HOSE | 510-1255 | ||
| 10 | 565-41-77241 | TUBE | 935-1255 | |
| \3\565-41-77240 | TUBE | 510-934 | ||
| (565-41-77241{07042-20108)} | ||||
| 10A | 07042-20108 | PLUG | 834-1255 | |
| 11 | 565-41-17140 | NIPPLE | 1256- | |
| 285-04-11210 | NIPPLE | 510-1255 | ||
| 11A | 07043-00108 | PLUG | 1256- | |
| 12 | 565-41-17940 | BAND | 510-1255 | |
| 13 | 565-41-17230 | BAND | 510-1255 | |
| 14 | 01010-51025 | BOLT | 510-1255 | |
| 15 | 01602-21030 | WASHER | 510-1255 | |
| 16 | 565-41-17280 | CLIP | 510-1255 |
