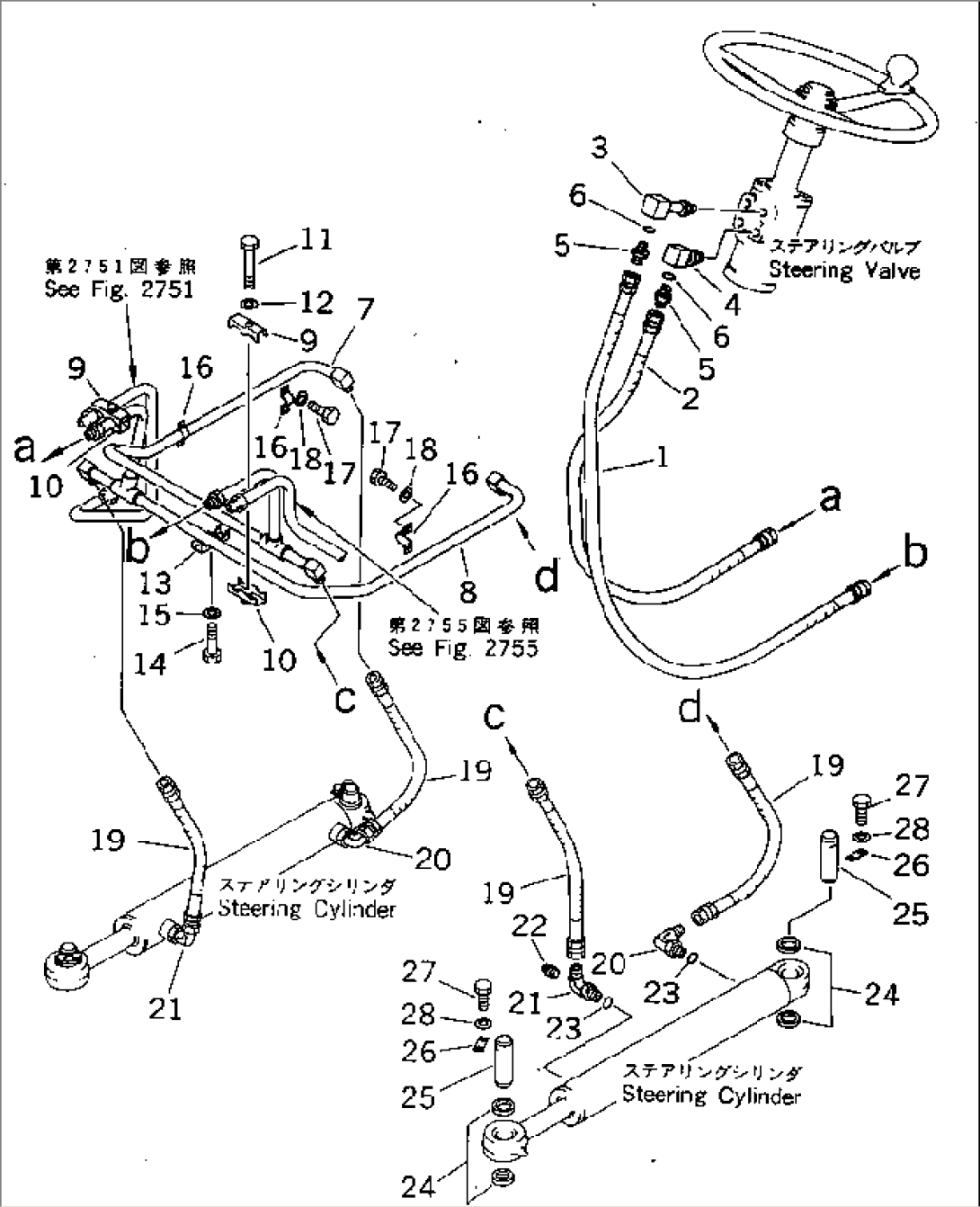

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 273-40-13520 | HOSE | 30003- | |
| 2 | 07108-20409 | HOSE | 30003- | |
| 3 | 273-40-13150 | ELBOW | 30003- | |
| 273-40-13160 | O-RING | 30003- | ||
| 4 | 237-40-13110 | ELBOW | 30003- | |
| 273-40-13160 | O-RING | 30003- | ||
| 5 | 07230-10422 | UNION | 30003- | |
| 6 | 07002-12034 | O-RING | 30003- | |
| 7 | 273-40-13180 | TUBE | 30003- | |
| 8 | 273-40-13230 | TUBE | 30003- | |
| 9 | 232-60-54820 | CLIP | 30003- | |
| 10 | 232-60-54850 | CLIP | 30003- | |
| 11 | 01010-51055 | BOLT | 30003- | |
| 12 | 01643-31032 | WASHER | 30003- | |
| 13 | 232-60-54820 | CLIP | 30003- | |
| 14 | 01010-51045 | BOLT | 30003- | |
| 15 | 01643-31032 | WASHER | 30003- | |
| 16 | 07282-02288 | CLAMP | 30003- | |
| 17 | 01010-51020 | BOLT | 30003- | |
| 18 | 01643-31032 | WASHER | 30003- | |
| 19 | 07108-20403 | HOSE | 30003- | |
| 20 | 07235-10422 | ELBOW | 30003- | |
| 21 | 07235-50422 | ELBOW | 30003- | |
| 22 | 07042-20108 | PLUG | 30003- | |
| 23 | 07002-12034 | O-RING | 30003- | |
| 24 | 273-63-11120 | SPACER | 30003- | |
| 25 | 273-63-11110 | PIN | 30003- | |
| 26 | 04082-00206 | LOCK | 30003- | |
| 27 | 01010-51225 | BOLT | 30003- | |
| 28 | 01643-31232 | WASHER | 30003- |
