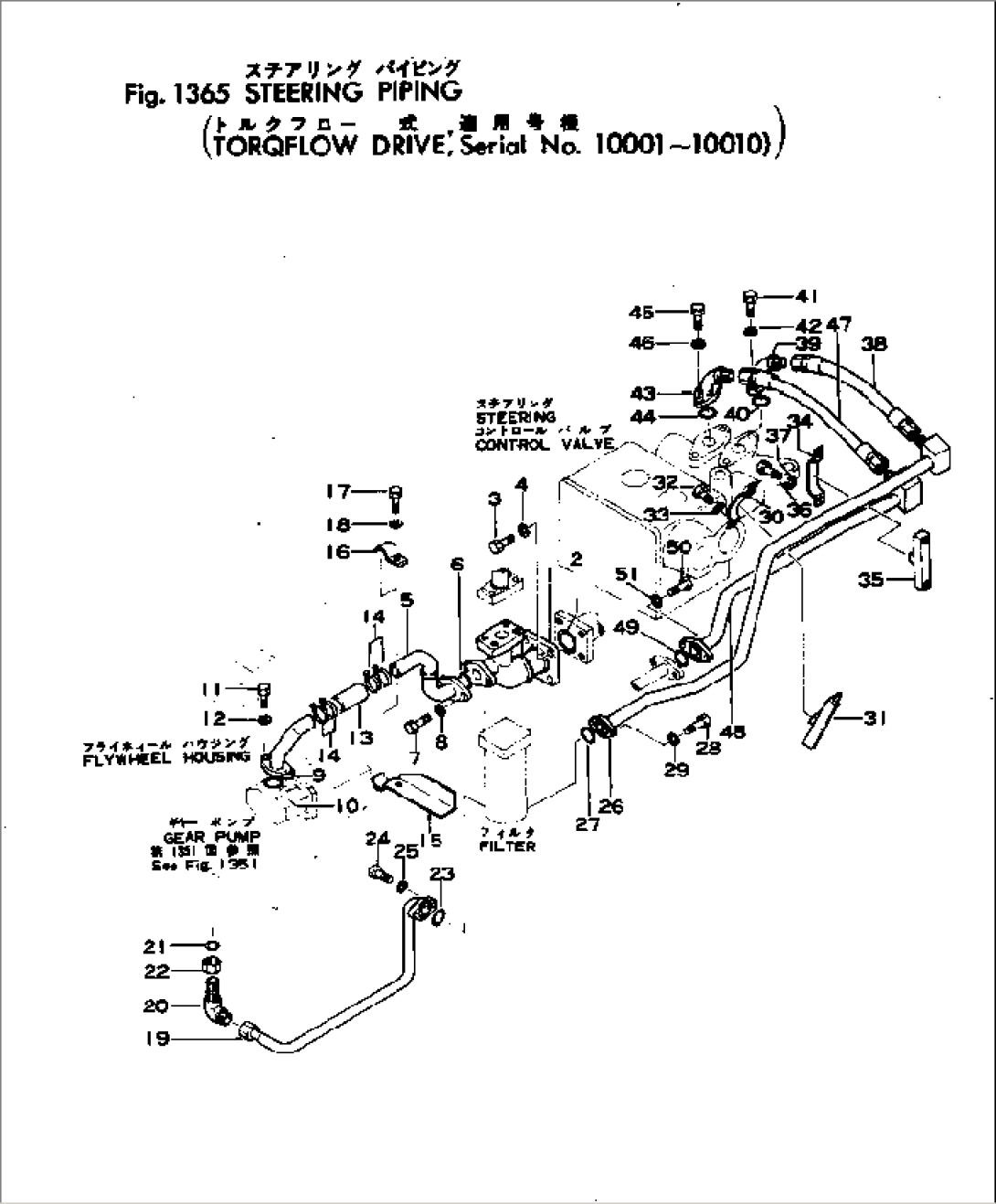

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 154-19-18120 | JOINT | 10001-10010 | |
| 2 | 07000-03058 | O-RING (KIT) | 10001-@ | |
| 3 | 01040-41230 | BOLT | 10001-@ | |
| 4 | 01602-11236 | WASHER | 10001-@ | |
| 5 | 154-19-18130 | TUBE | 10001-10010 | |
| 6 | 07000-03032 | O-RING (KIT) | 10001-10010 | |
| 7 | 01040-41030 | BOLT | 10001-10010 | |
| 8 | 01602-11030 | WASHER | 10001-10010 | |
| 9 | 154-19-18141 | TUBE | 10001-10010 | |
| 10 | 07000-03032 | O-RING (KIT) | 10001-10010 | |
| 11 | 01040-41030 | BOLT | 10001-10010 | |
| 12 | 01602-11030 | WASHER | 10001-10010 | |
| 13 | 07260-03216 | HOSE | 10001-10010 | |
| 14 | 07280-05026 | CLAMP | 10001-10010 | |
| 15 | 154-19-25131 | CLAMP | 10001-10010 | |
| 16 | 154-19-25140 | CLAMP | 10001-10010 | |
| 17 | 01040-41025 | BOLT | 10001-10010 | |
| 18 | 01602-11030 | WASHER | 10001-10010 | |
| 19 | 154-19-19110 | TUBE | 10001-@ | |
| 20 | 07232-00522 | ELBOW | 10001-@ | |
| 21 | 07000-03022 | O-RING (KIT) | 10001-@ | |
| 22 | 07239-02410 | NUT | 10001-@ | |
| 23 | 07000-03028 | O-RING (KIT) | 10001-@ | |
| 24 | 01040-41030 | BOLT | 10001-@ | |
| 25 | 01602-11030 | WASHER | 10001-@ | |
| 26 | 154-19-19121 | TUBE | 10001-10010 | |
| 27 | 07000-03028 | O-RING (KIT) | 10001-@ | |
| 28 | 01040-41030 | BOLT | 10001-@ | |
| 29 | 01602-11030 | WASHER | 10001-@ | |
| 30 | 154-19-25190 | CLAMP | 10001-@ | |
| 31 | 154-19-25260 | CLAMP | 10001-@ | |
| 32 | 01040-41025 | BOLT | 10001-@ | |
| 33 | 01602-11030 | WASHER | 10001-@ | |
| 34 | 154-19-25190 | CLAMP | 10001-@ | |
| 35 | 154-19-25210 | SEAT | 10001-@ | |
| 36 | 01040-41025 | BOLT | 10001-@ | |
| 37 | 01602-11030 | WASHER | 10001-@ | |
| 38 | 07102-00504 | HOSE | 10001-@ | |
| 39 | 154-19-19130 | TUBE | 10001-@ | |
| 40 | 07000-03028 | O-RING (KIT) | 10001-@ | |
| 41 | 01040-41030 | BOLT | 10001-@ | |
| 42 | 01602-11030 | WASHER | 10001-@ | |
| 43 | 154-19-21190 | TUBE | 10001-@ | |
| 44 | 07000-03030 | O-RING (KIT) | 10001-@ | |
| 45 | 01040-41030 | BOLT | 10001-@ | |
| 46 | 01602-11030 | WASHER | 10001-@ | |
| 47 | 07102-00604 | HOSE | 10001-@ | |
| 48 | 154-19-21130 | TUBE | 10001-@ | |
| 49 | 07000-03030 | O-RING (KIT) | 10001-@ | |
| 50 | 01040-41030 | BOLT | 10001-@ | |
| 51 | 01602-11030 | WASHER | 10001-@ |
