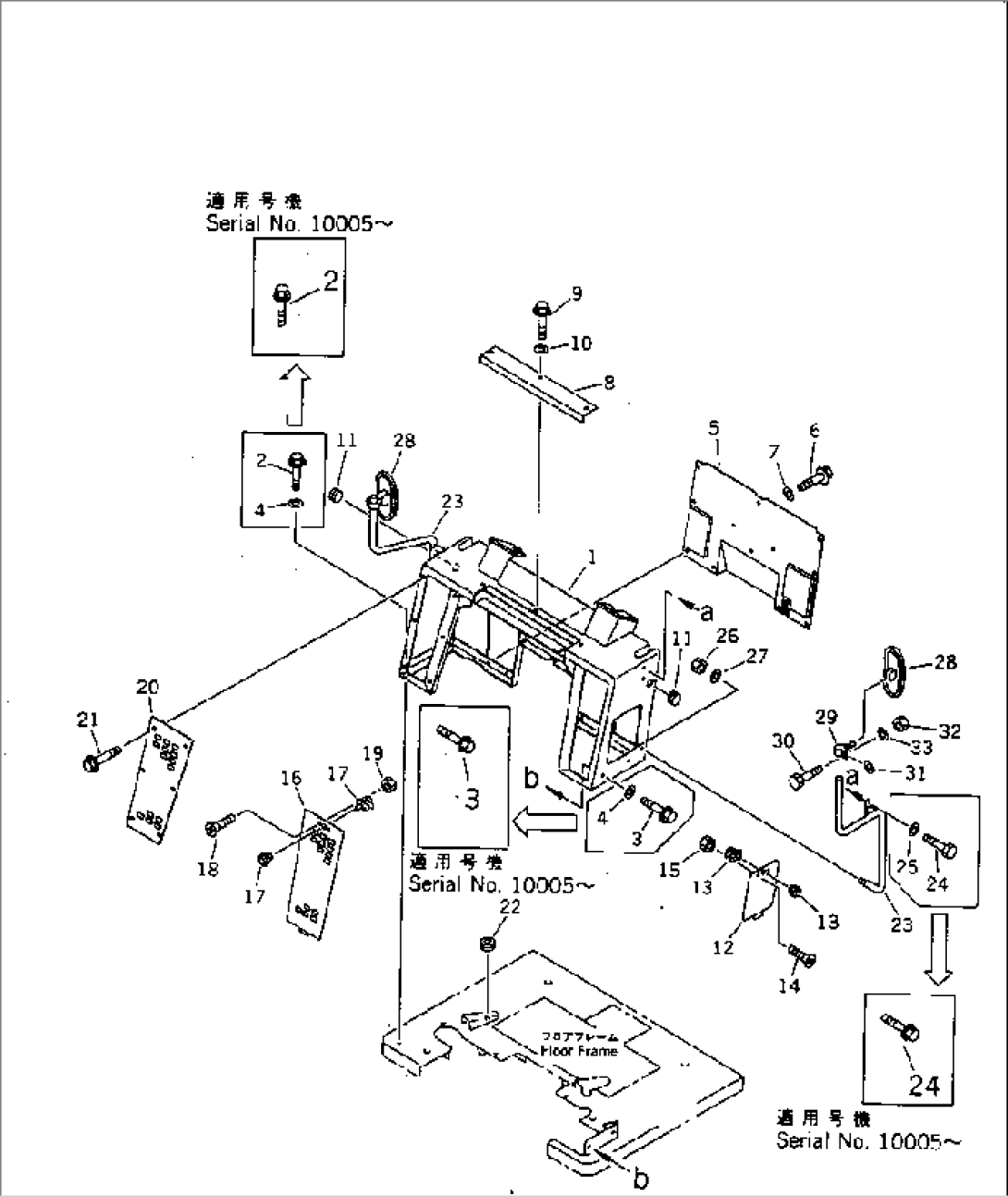

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 278-54-11120 | DASHBOARD | 10001-10023 | |
| 2 | 01439-01020 | BOLT | 10005-@ | |
| 01439-01025 | BOLT | 10001-10004 | ||
| 3 | 01439-01020 | BOLT | 10001-@ | |
| 4 | 01643-31032 | WASHER | 10001-10004 | |
| 5 | 278-54-11130 | COVER | 10001-@ | |
| 6 | 01439-00820 | BOLT | 10001-@ | |
| 7 | 01643-30823 | WASHER | 10001-@ | |
| 8 | 278-54-11290 | COVER | 10001-@ | |
| 9 | 01439-00814 | BOLT | 10001-@ | |
| 10 | 01643-30823 | WASHER | 10001-@ | |
| 11 | 09415-03614 | CAP | 10001-@ | |
| 12 | 278-54-11350 | PLATE | 10001-@ | |
| 13 | 278-54-11360 | CATCH | 10001-@ | |
| 14 | 01224-40510 | SCREW | 10001-@ | |
| 15 | 01580-10504 | NUT | 10001-@ | |
| 16 | 278-54-11230 | COVER,L.H. | 10001-10023 | |
| 17 | 278-54-11360 | CATCH | 10001-@ | |
| 18 | 01224-40510 | SCREW | 10001-@ | |
| 19 | 01580-10504 | NUT | 10001-@ | |
| 20 | 278-54-11240 | COVER,R.H. | 10001-10023 | |
| 21 | 01439-00820 | BOLT | 10001-@ | |
| 22 | 08037-01008 | GROMMET | 10001-@ | |
| 23 | 278-54-11330 | STAY,L.H. | 10001-10023 | |
| 278-54-11340 | STAY,R.H. | 10001-10023 | ||
| 24 | 01439-01020 | BOLT | 10005-@ | |
| 01010-51025 | BOLT | 10001-10004 | ||
| 25 | 01643-31032 | WASHER | 10001-10004 | |
| 26 | 01580-11210 | NUT | 10001-@ | |
| 27 | 01643-31232 | WASHER | 10001-@ | |
| 28 | 08174-10001 | MIRROR | 10001-@ | |
| 29 | 232-06-15151 | PIVOT | 10001-@ | |
| 30 | 01010-50825 | BOLT | 10001-@ | |
| 31 | 01643-30823 | WASHER | 10001-@ | |
| 32 | 01580-10806 | NUT | 10001-@ | |
| 33 | 01643-30823 | WASHER | 10001-@ |
