| Item | Part No. | Part Name | Qty | Serial No. |
| (708-45-10104) | PUMP ASS'Y | 10001- | ||
| (\2\708-45-10103) | PUMP ASS'Y | (10056-10530) | ||
| (\2\708-45-10102) | PUMP ASS'Y | (10049-10055) | ||
| (\2\708-45-10101) | PUMP ASS'Y | (.-10048) | ||
| (\2\708-45-10100) | PUMP ASS'Y | (10001-.) | ||

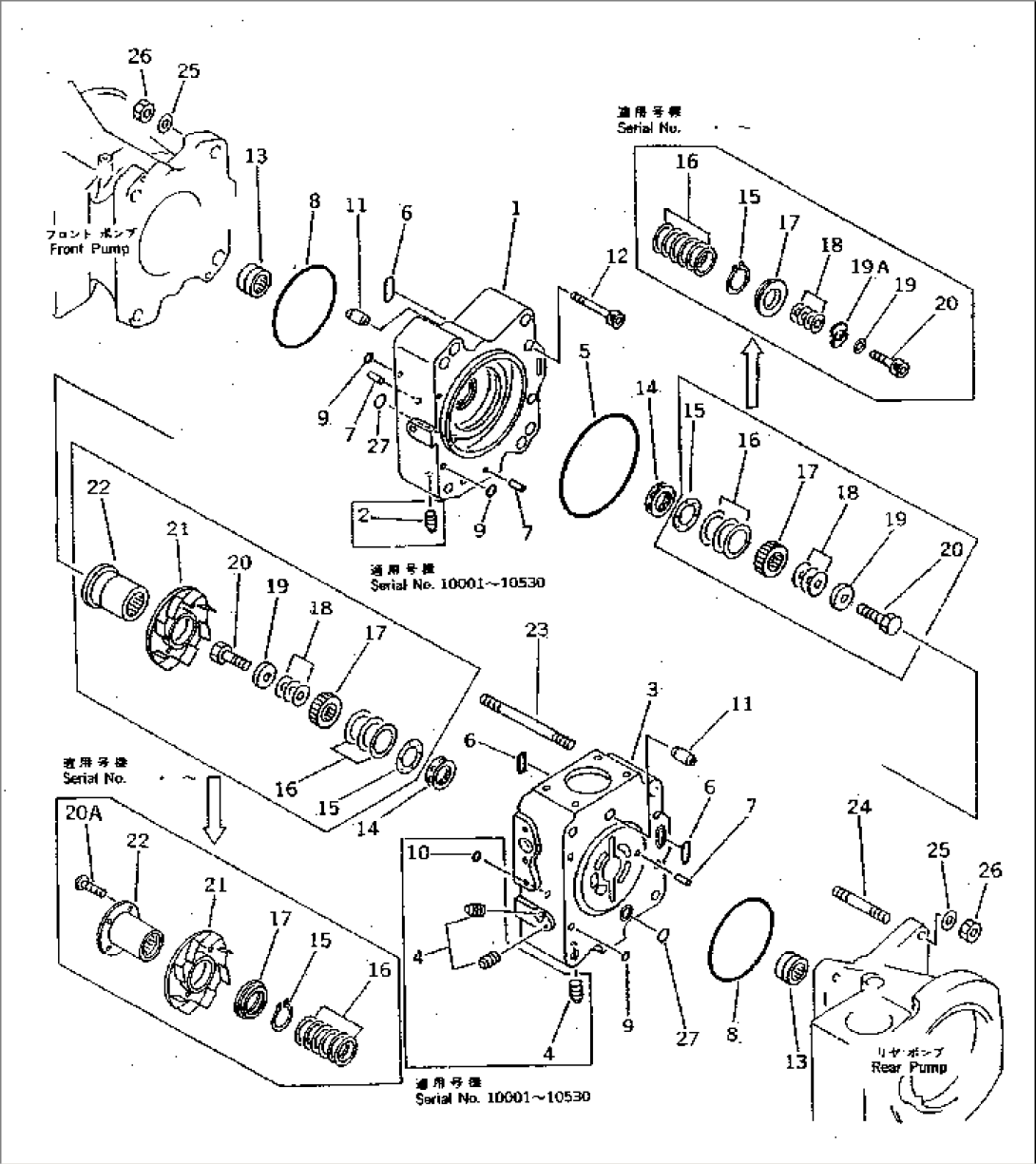

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6021 TO 6024. | ||||
| (708-45-11104) | PUMP SUB ASS'Y | 10001- | ||
| (\2\708-45-11103) | PUMP SUB ASS'Y | (10056-10530) | ||
| (\2\708-45-11102) | PUMP SUB ASS'Y | (10049-10055) | ||
| (\2\708-45-11101) | PUMP SUB ASS'Y | (.-10048) | ||
| (\2\708-45-11100) | PUMP SUB ASS'Y | (10001-.) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6022 TO 6024. | ||||
| (\7\708-25-52561) | CAP,END | .- | ||
| (\2\708-25-00420) | END CAP ASS'Y,FRONT | (10056-10530) | ||
| (\2\708-25-00290) | END CAP ASS'Y,FRONT | (.-10055) | ||
| \6\ | END CAP ASS'Y,FRONT | 10001-. | ||
| 1 | \6\ | CAP,END¤ FRONT | 10056-10530 | |
| \6\ | CAP,END¤ FRONT | .-10055 | ||
| \6\ | CAP,END¤ FRONT | 10001-. | ||
| 2 | \6\ | PLUG | .-10530 | |
| \6\ | PLUG | 10001-. | ||
| (\7\708-25-52571) | CAP,END | .- | ||
| (\2\708-25-00440) | END CAP ASS'Y,REAR | (10056-10530) | ||
| (\2\708-25-00300) | END CAP ASS'Y,REAR | (.-10055) | ||
| \6\ | END CAP ASS'Y,REAR | 10001-. | ||
| 3 | \6\ | CAP,END¤ REAR | 10056-10530 | |
| \6\ | CAP,END¤ REAR | .-10055 | ||
| \6\ | CAP,END¤ REAR | 10001-. | ||
| 4 | \6\ | PLUG | .-10530 | |
| \6\ | PLUG | 10001-. | ||
| 5 | (\7\07000-35165) | O-RING | 10001- | |
| (\2\07000-05165) | O-RING | (10001-10048) | ||
| 6 | (\7\07000-33032) | O-RING | 10001- | |
| (\2\07000-03032) | O-RING | (10001-10048) | ||
| 7 | (\7\720-68-19610) | PIN | 10001- | |
| 8 | (\7\07000-32135) | O-RING | 10001- | |
| (\2\07000-02135) | O-RING | (10001-10048) | ||
| 9 | (\7\07000-21009) | O-RING | 10531- | |
| (\7\07000-21009) | O-RING | 10001-10530 | ||
| (\2\07000-11009) | O-RING | (10001-10048) | ||
| 10 | (\7\07000-22012) | O-RING | 10001-10530 | |
| (\2\07000-12012) | O-RING | (10001-10048) | ||
| 11 | (\7\6130-21-1910) | PIN,DOWEL | 10001- | |
| 12 | (\7\708-25-12530) | BOLT | 10001- | |
| 13 | (\7\708-2E-12260) | BEARING | 10001- | |
| (\2\708-25-12740) | BEARING | (10001-10055) | ||
| 14 | (\7\06000-51106) | BEARING | 10001- | |
| 15 | (\7\708-25-52830) | RING | .- | |
| \6\ | SPACER | 10001-. | ||
| 16 | (\7\708-25-05140) | WASHER KIT | .- | |
| \6\ | WASHER¤ 2.25MM | .- | ||
| \6\ | WASHER¤ 2.55MM | .- | ||
| \6\ | WASHER¤ 2.85MM | .- | ||
| \6\ | WASHER¤ 3.15MM | .- | ||
| \6\ | WASHER¤ 3.45MM | .- | ||
| \6\ | WASHER¤ 3.75MM | .- | ||
| (\2\708-25-05040) | SPACER KIT | (10001-.) | ||
| \6\ | SPACER¤ 0.1MM | 10001-. | ||
| \6\ | SPACER¤ 0.2MM | 10001-. | ||
| \6\ | SPACER¤ 0.5MM | 10001-. | ||
| 17 | (\7\708-25-52840) | RETAINER | .- | |
| \6\ | BOSS | 10001-. | ||
| 18 | (\7\708-25-05021) | SHIM KIT | .- | |
| \6\ | SHIM KIT | 10001-. | ||
| \6\ | SHIM¤ 0.1MM | 10001- | ||
| \6\ | SHIM¤ 0.15MM | 10001- | ||
| \6\ | SHIM¤ 0.2MM | .- | ||
| \6\ | SHIM¤ 0.2MM | 10001-. | ||
| \6\ | SHIM¤ 0.5MM | .- | ||
| \6\ | SHIM¤ 0.5MM | 10001-. | ||
| 19 | (\7\01643-31032) | WASHER | .- | |
| \6\ | PLATE | 10001-. | ||
| 19A | (\7\708-25-12950) | PLATE | .- | |
| 20 | (\7\706-73-40320) | BOLT | .- | |
| \6\ | BOLT | 10001-. | ||
| 20A | (\7\706-73-42270) | SCREW | .- | |
| 21 | (\7\708-25-12542) | IMPELLER | .- | |
| \6\ | IMPELLER | 10001-. | ||
| 22 | (\7\708-25-52550) | COUPLING | .- | |
| \6\ | COUPLING | 10001-. | ||
| 23 | (\7\01141-81620) | STUD | 10001- | |
| (\2\01141-61620) | STUD | (10001-.) | ||
| 24 | (\7\01140-81645) | STUD | 10001- | |
| (\2\01140-61645) | STUD | (10001-.) | ||
| 25 | (\7\01643-31645) | WASHER | 10001- | |
| 26 | (\7\01582-01613) | NUT | 10001- | |
| 27 | (\7\07000-22015) | O-RING | .- |
