| Item | Part No. | Part Name | Qty | Serial No. |

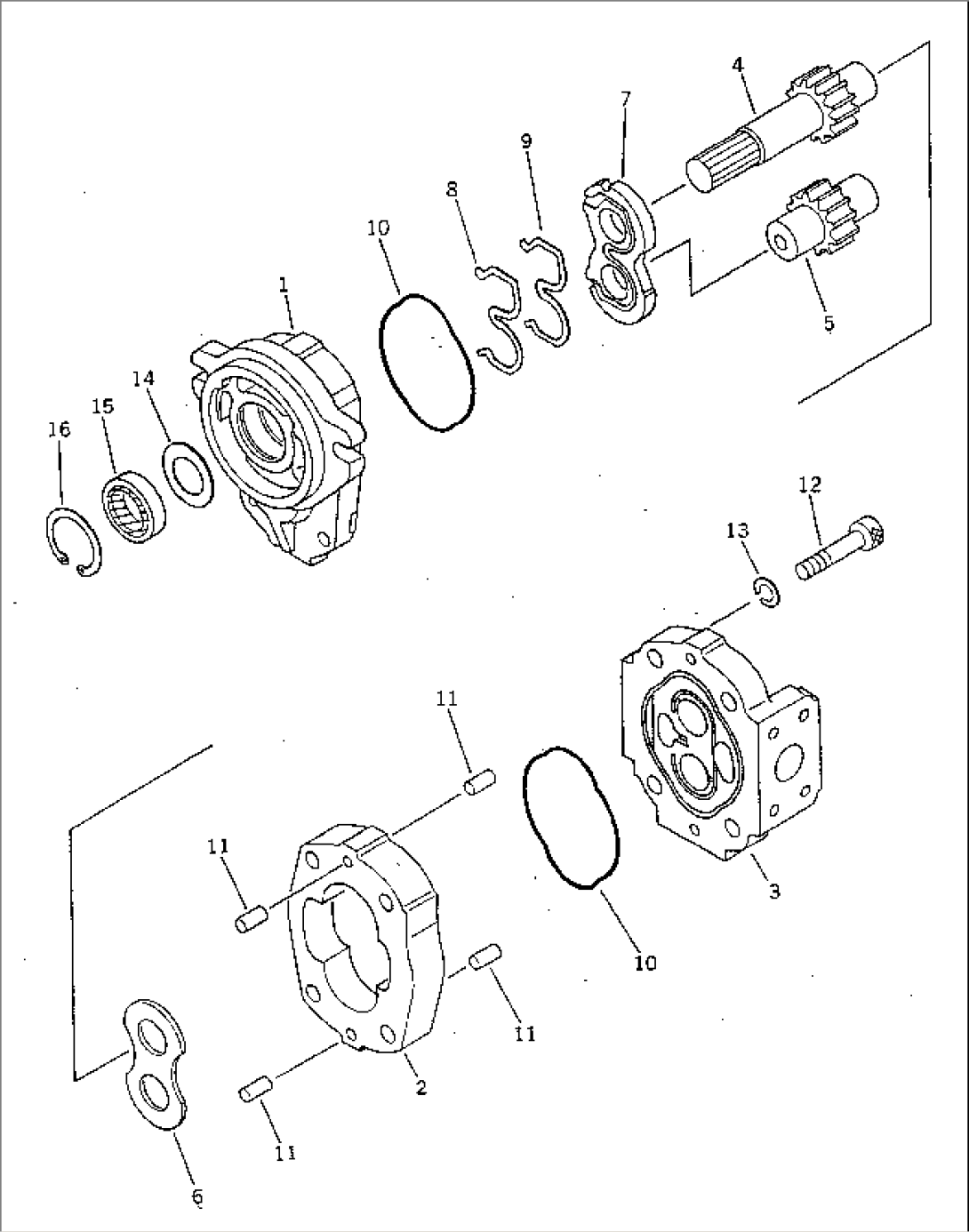

| 705-62-20010 | PUMP ASS'Y (KAR8) | 1001- | ||
| 1 | \6\ | BRACKET ASS'Y | 1001- | |
| 2 | \6\ | CASE,GEAR | 1001- | |
| 3 | \6\ | COVER ASS'Y | 1001- | |
| 4 | \6\ | GEAR,DRIVE | 1001- | |
| 5 | \6\ | GEAR,DRIVEN | 1001- | |
| 6 | 705-67-01620 | PLATE,SIDE | 1001- | |
| 7 | 705-67-01610 | PLATE,SIDE | 1001- | |
| 8 | 705-67-01440 | RING,BACK-UP | 1001- | |
| 9 | 705-17-01470 | SEAL,SEAL | 1001- | |
| 10 | 705-17-01381 | O-RING | 1001- | |
| 11 | 705-67-01920 | PIN,DOWEL | 1001- | |
| 12 | 01252-31055 | BOLT | 1001- | |
| 13 | 01602-21030 | WASHER,SPRING | 1001- | |
| 14 | 705-17-01870 | PLATE | 1001- | |
| 15 | 704-17-01810 | SEAL,OIL | 1001- | |
| 16 | 04065-03515 | RING,SNAP | 1001- |
