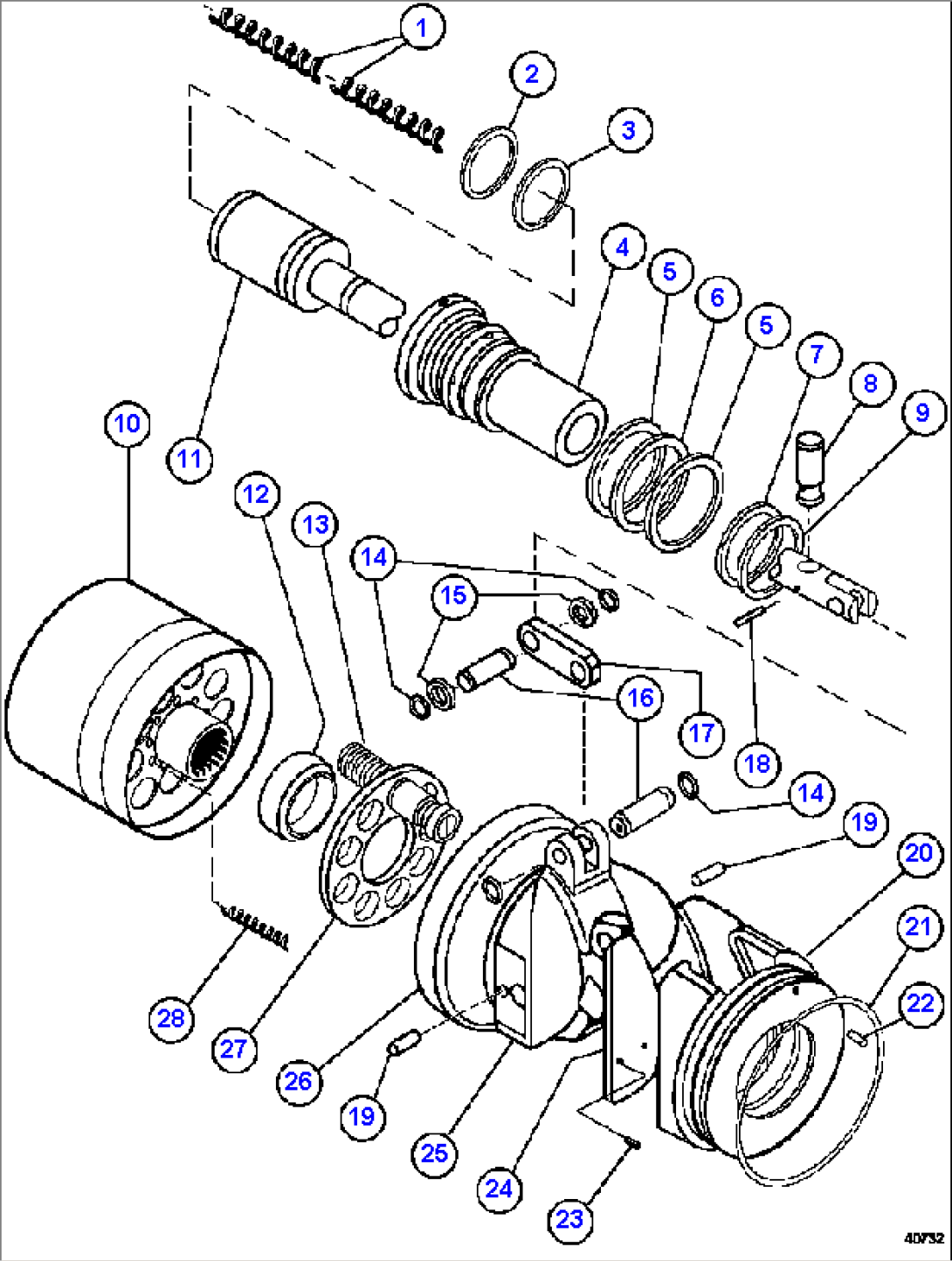

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VE9591 | SPRING | ||
| 2 | VE9586 | SEAL (1) | ||
| 3 | VE9581 | RING, PISTON (1) | ||
| 4 | 58E-98-00470 | SLEEVE | ||
| 5 | 58E-98-00040 | RING, BACKUP (1) | ||
| 6 | 58E-98-00020 | O-RING (1) | ||
| 7 | 58E-98-00010 | O-RING (1) | ||
| 8 | VE9579 | PIN | ||
| 9 | 58E-98-00030 | RING, BACKUP (1) | ||
| 10 | VE9553 | BARREL, CYLINDER | ||
| 11 | VE9577 | PISTON | ||
| 12 | BALL (3) | |||
| 13 | VE9554 | PISTON SHOE ASSEMBLY | ||
| 14 | VE9574 | RING, RETAINER | ||
| 15 | VE9575 | WASHER | ||
| 16 | VE9573 | PIN | ||
| 17 | VE7572 | LINK | ||
| 18 | VE9584 | PIN | ||
| 19 | VE9564 | PIN, DOWEL | ||
| 20 | VE9559 | SADDLE | ||
| 21 | VE9539 | SEAL, O-RING | ||
| 22 | VE9533 | PIN, ROLL | ||
| 23 | BF2617 | PIN, ROLL (2) | ||
| 24 | BF2616 | BEARING (2) | ||
| 25 | BF3176 | SWASH BLOCK (W/ PIN) | ||
| 26 | VE9531 | BEARING, CYLINDER | ||
| 27 | RETAINER (3) | |||
| 28 | VE9556 | SPRING | ||
| NS|29 | 58E-98-00000 | NOTE: (1) INCLUDED IN 58E-98-00000 PUMP SEAL KIT. | ||
| NS|30 | BF2613 | (2) INCLUDED IN BF2613 BEARING KIT. | ||
| NS|31 | (3) NOT SERVICED SEPARATELY. |
