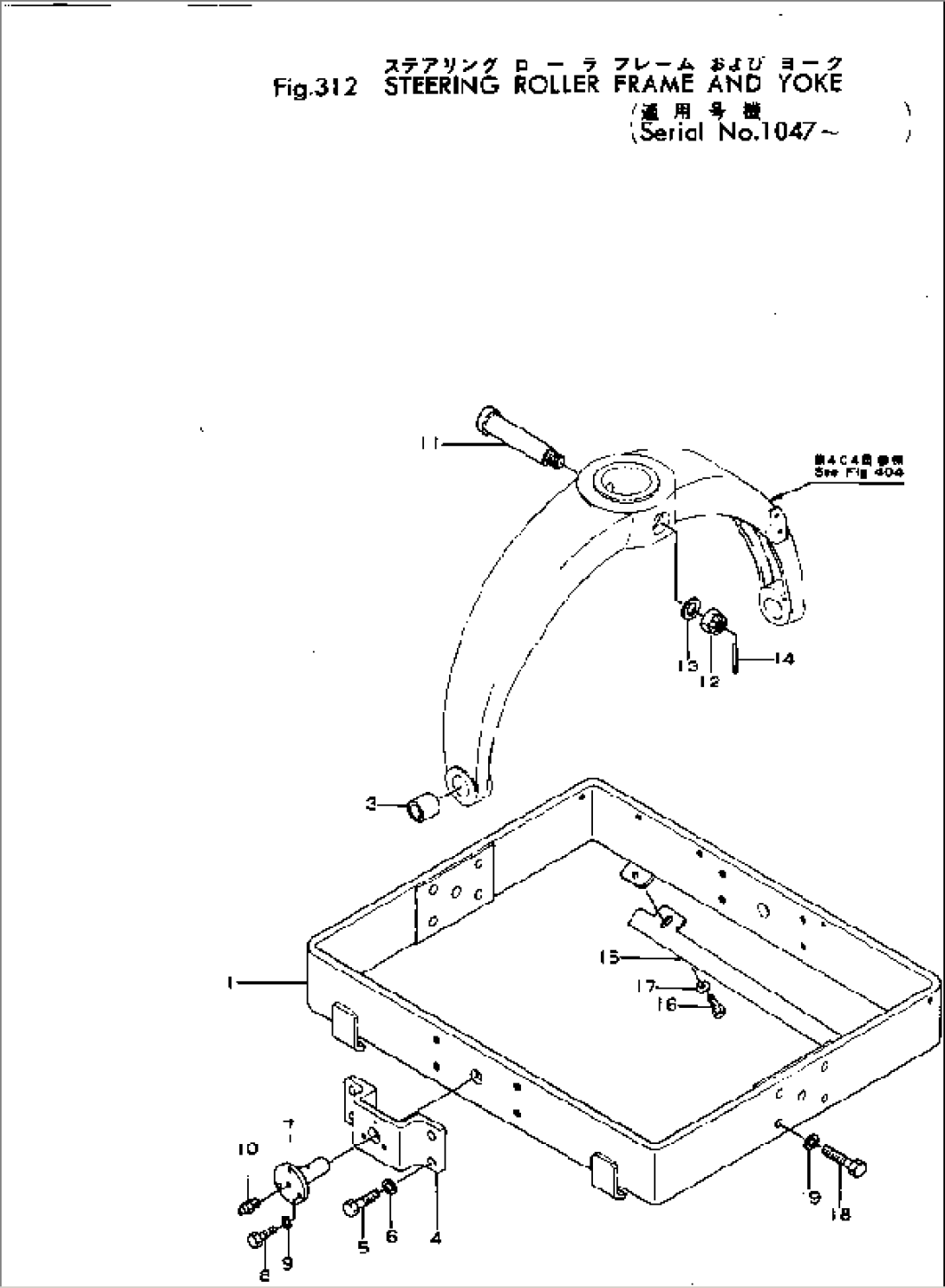

| Item | Part No. | Part Name | Qty | Serial No. |
| 267-70-10202 | FRAME ASS'Y | 1157- | ||
| 267-70-10201 | FRAME ASS'Y | 1137-1156 | ||
| 267-70-10200 | FRAME ASS'Y | 1047-1136 | ||
| 1 | 267-70-11101 | FRAME | 1137- | |
| 267-70-11100 | FRAME | 1047-1136 | ||
| 3 | 267-60-12430 | BUSHING | 1157- | |
| 267-70-11420 | BUSHING | 1047-1156 | ||
| 4 | 267-70-11430 | BRACKET | 1047- | |
| 5 | 01040-31640 | BOLT | 1047- | |
| 6 | 01602-01648 | WASHER | 1047- | |
| 7 | 267-70-11500 | PIN | 1047- | |
| 8 | 01000-30825 | BOLT | 1047- | |
| 9 | 01602-00825 | WASHER | 1047- | |
| 10 | 07020-00000 | FITTING | 1047- | |
| 11 | 267-70-11440 | PIN | 1047- | |
| 12 | 01510-02022 | NUT | 1047- | |
| 13 | 267-14-13730 | WASHER | 1047- | |
| 14 | 04050-03035 | PIN | 1047- | |
| 15 | 267-70-11450 | GUARD | 1047- | |
| 16 | 01040-31220 | BOLT | 1137- | |
| 01000-31220 | BOLT | 1047-1136 | ||
| 17 | 267-70-11460 | WASHER | 1047- | |
| 18 | 01040-31645 | BOLT | 1047- | |
| 19 | 01602-01648 | WASHER | 1047- |
