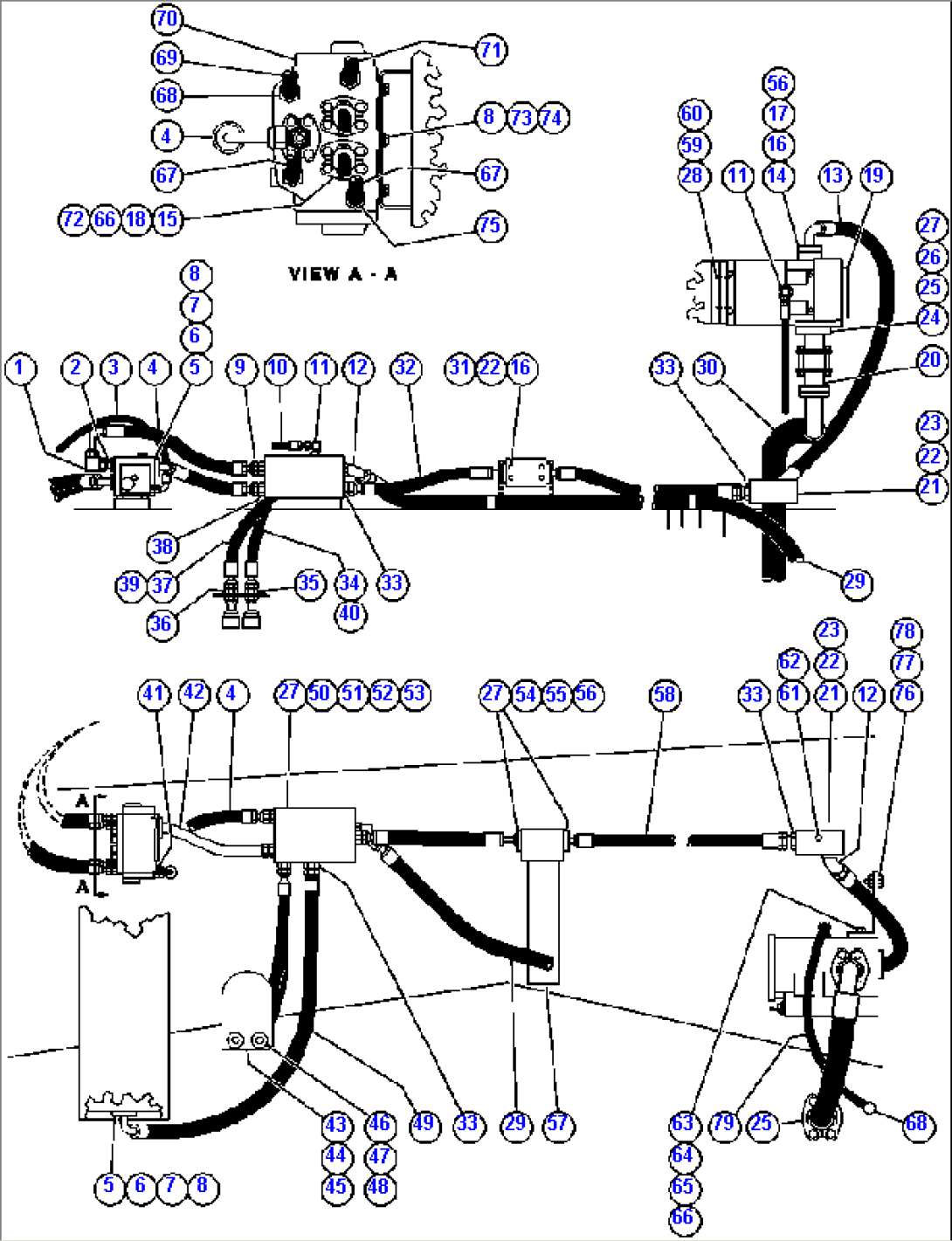

STEERING SYSTEM PIPING - 1

STEERING SYSTEM PIPING - 1
ItemPart No.Part NameQtySerial No.
1WB0378ELBOW - 90 DEG
2WA4850FITTING
3HA6225HOSE
4HA6226HOSE
5TF3237CLAMP, SPLIT
6VG9096SEAL, O-RING
7C1609CAPSCREW - 7/16" - 14NC X 1 1/2"
8C5775LOCKWASHER - 7/16"
9WB0600ADAPTOR, STRAIGHT
10HA6295HOSE
11WB0510FITTING, ELBOW - 90 DEG
12WB0549FITTING, ELBOW - 45 DEG
13HA6937HOSE
14WA5629CLAMP, HALF
15VG9097SEAL, O-RING
16C1631CAPSCREW - 5/8" - 11NC X 2 1/4"
17TF8077FLANGE, SPLIT
18WB0510FITTING - 90 DEG
19PB8760PUMP, PISTON
20TY8353SHUT-OFF VALVE ASSEMBLY (SEE INDEX)
21EC4888MANIFOLD
22WA2551CAPSCREW - 3/8" - 16NC X 3 1/2"
23TC1231LOCKWASHER - 3/8"
24VH6718FLANGE, SPLIT
25WA0232SEAL, O-RING
26C1615CAPSCREW - 1/2" - 13NC X 1 3/4"
27C1540LOCKWASHER - 1/2"
28C1645CAPSCREW - 3/4" - 10NC X 2 1/4"
29HA6227HOSE
30HA6833HOSE
31WA0720FLAT WASHER - 3/8" (HARDENED)
32HA4165HOSE
33WB0601ADAPTOR, STRAIGHT
34HA6242HOSE
35WB0433FITTING, BULKHEAD STRAIGHT
36WB0432FITTING, BULKHEAD STRAIGHT
37HA0155HOSE
38WB0602FITTING, STRAIGHT ADAPTOR
39WB0593FITTING, STRAIGHT ADAPTOR
40WB0599FITTING, STRAIGHT ADAPTOR
41WB0574FITTING, STRAIGHT ADAPTOR
42TZ5905TUBE
43VN3308ADAPTOR, SWIVEL
44PB4683COUPLING, QUICK DISCONNECT (FEMALE)
45PB4686PLUG, DUST
46PB4685COUPLING, QUICK DISCONNECT (FEMALE)
47WA3568FITTING, TUBE
48TA2968PLUG, DUST
49HA6245HOSE
50PB6923BLEEDDOWN MANIFOLD VALVE (SEE INDEX)
51C1628CAPSCREW - 1/2" - 13NC X 7"
52WA0360FLAT WASHER - 1/2"
53C1523NUT - 1/2" - 13NC
54C1614CAPSCREW - 1/2" - 13NC X 1 1/2"
55TF8090FLANGE, SPLIT
56VG9095SEAL, O-RING
57PB7056HIGH-PRESSURE FILTER ASSEMBLY
57HEAD ASSEMBLY (1)
57VE1750KIT, SEAL
57VE4206INDICATOR - 24 VDC
57VE3431KIT, SEAL
57VE0731ELEMENT
57VE4207HOUSING
57VE3434PLUG
57VE3435O-RING
58HA6458HOSE
59VL5418SEAL, O-RING
60VG9058RING, SEATING
61PB6528COUPLING, DIAGNOSTIC
62PB6041CAP, DUST
63EC8707BRACKET
64DC7524CAPSCREW - 3/8" - 16NC X 7/8"
65WA0720FLAT WASHER - 3/8"
66C0312LOCKWASHER - 3/8"
67HA6235HOSE (SEE HYD TANK/CABINET PIPING PG)
68WB0584FITTING, STRAIGHT ADAPTOR
69HA6238HOSE (SEE HYD TANK/CABINET PIPING PG)
70PB6908FLOW AMPLIFIER (SEE INDEX)
71HA6236HOSE (SEE HYD TANK/CABINET PIPING PG)
72C1603CAPSCREW - 3/8" - 16NC X 1 1/4"
73C1608CAPSCREW - 7/16" - 16NC X 1"
74PB1255FLAT WASHER - 7/16"
75WB0537FITTING, ELBOW - 45 DEG
76C1629CAPSCREW - 5/8" - 11NC X 1 3/4"
77WA0361FLAT WASHER - 5/8"
78VN9952LOCKNUT - 5/8" - 11NC
79HA5568HOSE
NS|88NOTE: (1) NOT SERVICED SEPARATELY.
