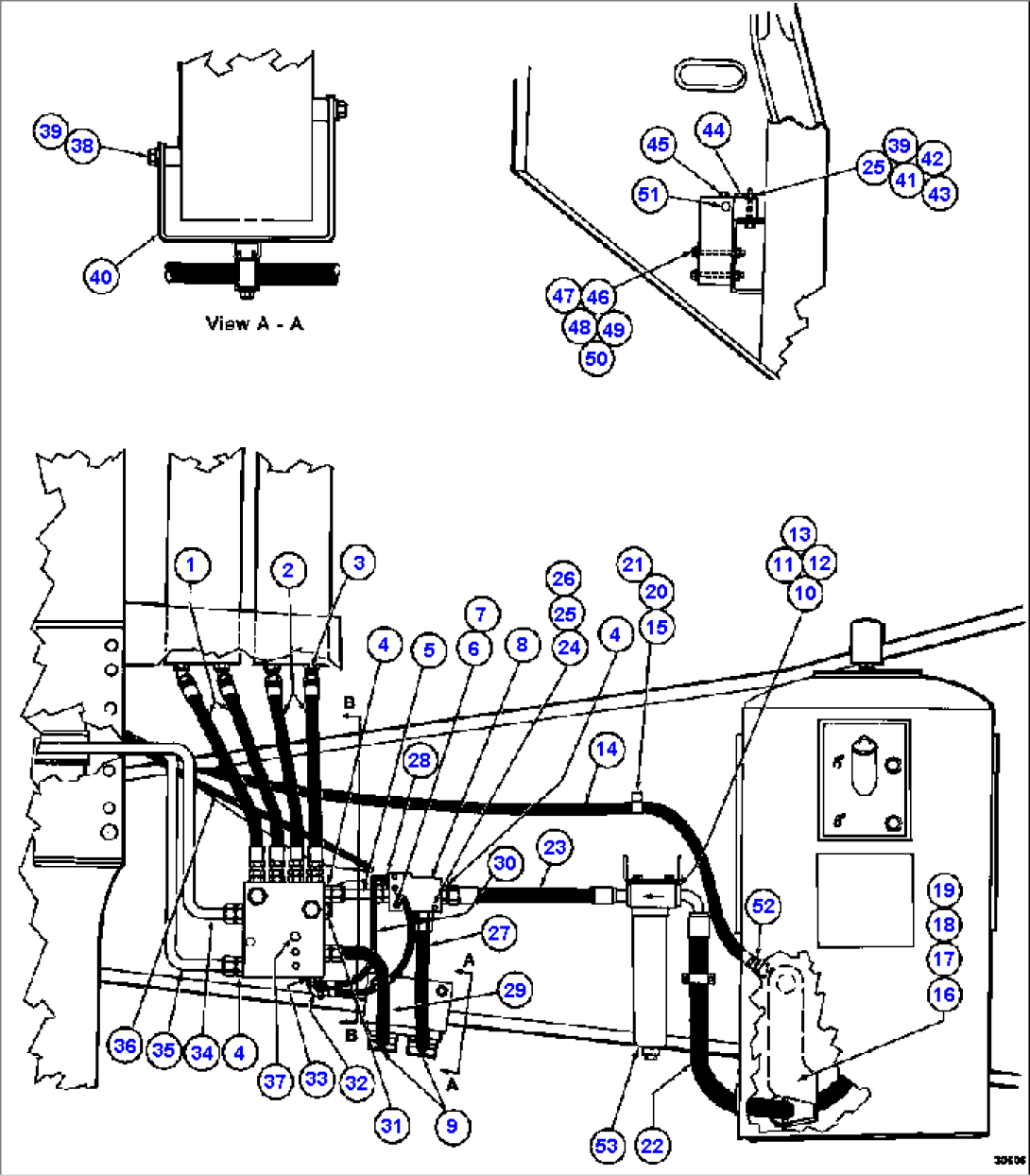

STEERING SYSTEM PIPING 2/2

Item	Part No.	Part Name	Qty	Serial No.
1	HA2272	HOSE
2	HA1886	HOSE
3	WB0542	FITTING, O-RING
4	WB0601	FITTING, O-RING
5	TZ2206	TUBE
6	PB6528	COUPLING, DIAGNOSTIC
7	PB6041	CAP, DUST
8	PB8511	UNLOADER VALVE (SEE INDEX)
9	WA4709	CLAMP, HYDRA ZORB
10	VG9096	SEAL, O-RING
11	TF8090	CLAMP, HALF
12	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"
13	C1540	LOCKWASHER - 1/2"
14	HA6621	HOSE
15	VN9908	CLAMP
16	C5774	LOCKWASHER - 1/4"
17	C7588	CAPSCREW - 1/4" - 20NC X 1"
18	EB2091	BRACKET
19	WA3083	CLAMP, HALF
20	C1602	CAPSCREW - 3/8" - 16NC X 1"
21	HE5611	LOCKNUT - 3/8" - 16NC
22	HA6344	HOSE
23	HA4165	HOSE
24	C5753	CAPSCREW - 3/8" - 16NC X 4"
25	C0312	LOCKWASHER - 3/8"
26	C1547	FLAT WASHER - 3/8"
27	TZ2207	TUBE
28	WB0574	FITTING, STRAIGHT ADAPTER
29	TZ2208	TUBE
30	HA0569	HOSE
31	VM0319	PLUG, O-RING
32	WB0508	FITTING, ELBOW - 90 DEG
33	WB0499	FITTING, ELBOW - 90 DEG
34	TZ2210	TUBE
35	TZ2209	TUBE
36	HA6616	HOSE
37	VM0317	PLUG, O-RING
38	C1601	CAPSCREW - 3/8" - 16NC X 3/4"
39	WA0720	FLAT WASHER - 3/8"
40	TY2105	BRACKET
41	C1521	NUT - 3/8" - 16NC
42	H9918	CAPSCREW - 3/8" - 16NC X 3/4"
43	TZ2220	MANIFOLD ASSEMBLY
43	VM0319	PLUG, O-RING
43	VE2511	CHECK VALVE CARTRIDGE W/O-RING
43	TZ2219	MANIFOLD
44	WB0593	FITTING, O-RING
45	WB0594	FITTING, O-RING
46	C5761	CAPSCREW - 1/2" - 13NC X 6"
47	PB6181	BLEEDDOWN MANIFOLD VALVE (SEE INDEX)
48	C1523	NUT - 1/2" - 13NC
49	WA0360	FLAT WASHER - 1/2"
50	C1540	LOCKWASHER - 1/2"
51	VM0314	PLUG, O-RING
52	WB0297	FITTING, ELBOW - 45 DEG
53	PB7056	FILTER ASSEMBLY, HIGH PRESSURE (SEE FIG. 30606)
