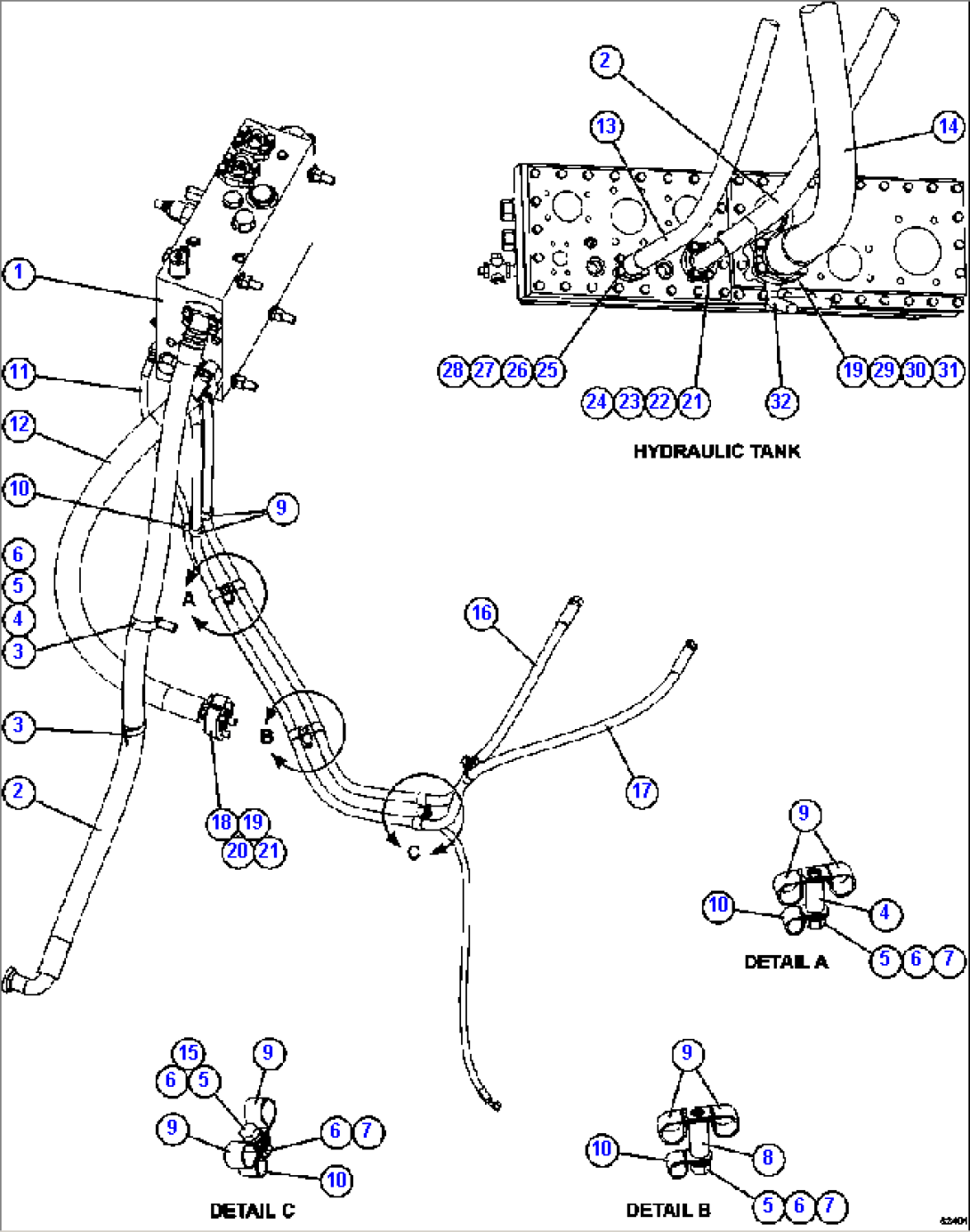

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PC1493 | BLEED DOWN MANIFOLD (SEE INDEX) | ||
| 2 | HA7985 | HOSE | ||
| 3 | WB3094 | CLAMP, CUSHIONED - 1 3/4" | ||
| 4 | TY8375 | SPACER | ||
| 5 | MM0471 | LOCKWASHER - M10 | ||
| 6 | MM0461 | FLAT WASHER - M10 | ||
| 7 | MM0178 | NUT - M10 X 1.50 | ||
| 8 | EM1393 | SPACER | ||
| 9 | WB3855 | CLAMP, CUSHIONED - 13/16" | ||
| 10 | WB1304 | CLAMP, CUSHIONED - 9/16" | ||
| 11 | HA7688 | HOSE | ||
| 12 | HA8831 | HOSE | ||
| 13 | HA7687 | HOSE | ||
| 14 | HA7341 | HOSE | ||
| 15 | MM0606 | CAPSCREW - M10 X 1.50 X 30 | ||
| 16 | HA5582 | HOSE | ||
| 17 | HA7331 | HOSE | ||
| 18 | C1615 | CAPSCREW - 1/2" - 13NC X 1 3/4" | ||
| 19 | C1540 | LOCKWASHER - 1/2" | ||
| 20 | WA5630 | CLAMP, SPLIT FLANGE - 1 1/4" | ||
| 21 | VG9096 | O-RING | ||
| 22 | C1609 | CAPSCREW - 7/16" - 14NC X 1 1/2" | ||
| 23 | C5775 | LOCKWASHER - 7/16" | ||
| 24 | TF3237 | CLAMP, SPLIT FLANGE - 1 1/4" | ||
| 25 | C1603 | CAPSCREW - 3/8" - 16NC X 1 1/4" | ||
| 26 | C0312 | LOCKWASHER - 3/8" | ||
| 27 | TF8077 | CLAMP, SPLIT FLANGE - 1" | ||
| 28 | VG9097 | O-RING | ||
| 29 | C1623 | CAPSCREW - 12" - 13NC X 3 3/4" | ||
| 30 | VH6718 | CLAMP, SPLIT FLANGE - 2 1/2" | ||
| 31 | WA0232 | O-RING | ||
| 32 | PC0170 | VALVE, SHUT-OFF |
