| Item | Part No. | Part Name | Qty | Serial No. |
| (17A-22-51000) | STEERING ASS'Y | 85001- | ||

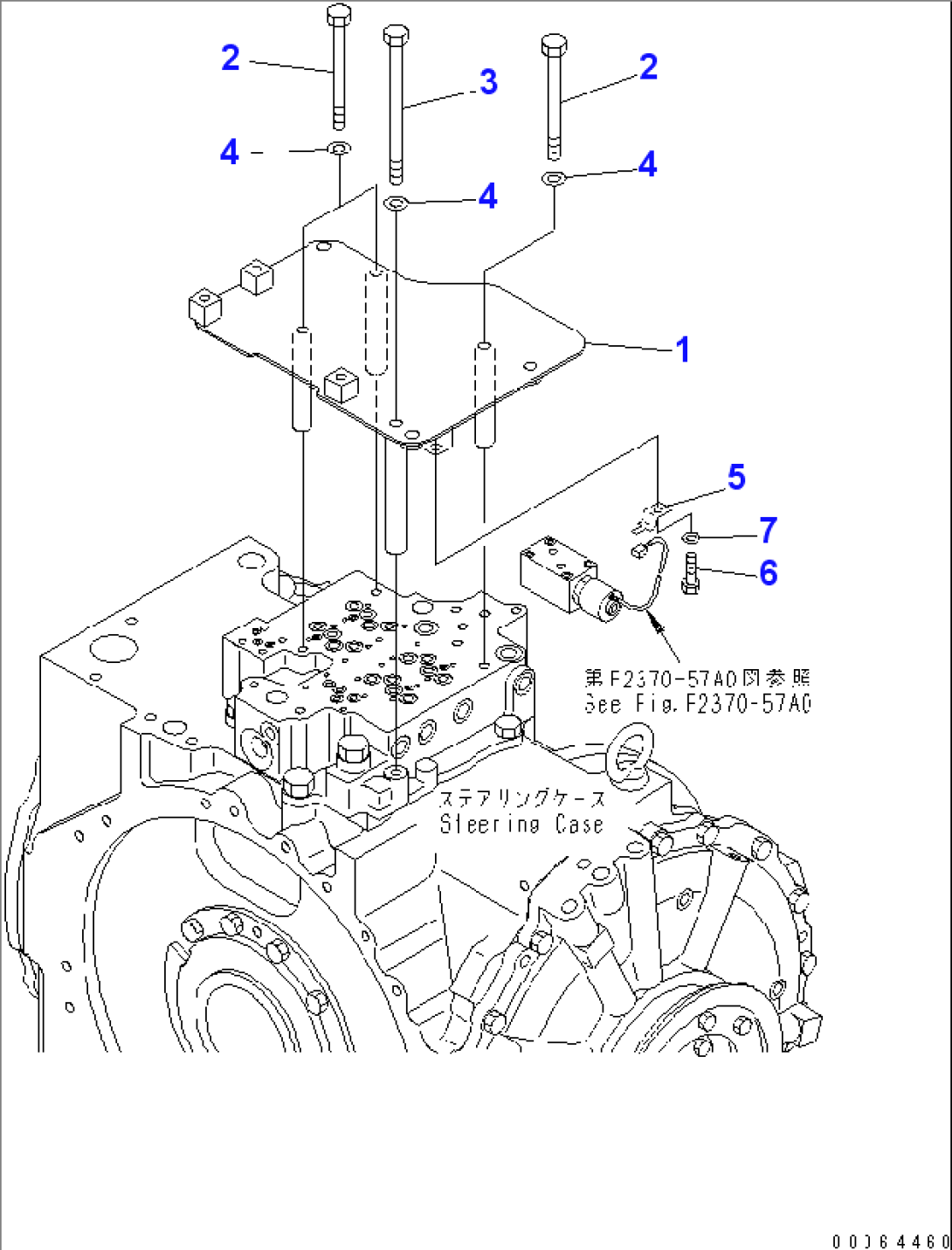

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2370-51A0 TO F2370-60A0. | ||||
| (17A-22-56001) | STEERING VALVE | 85001- | ||
| (\2\17A-22-56000) | STEERING VALVE | (85001-85009) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.F2370-56A0 AND F2370-57A0. | ||||
| 1 | 01252-70650 | BOLT | 85001- | |
| 2 | 07000-72015 | O-RING (K6) | 85001- | |
| 3 | 07000-71007 | O-RING (K6) | 85001- | |
| 4 | 17A-22-46250 | ORIFICE | 85001- | |
| 5 | 17A-22-46260 | ORIFICE | 85001- | |
| 17A-22-46100 | VALVE ASS'Y | 85001- | ||
| 6 | 209-60-77290 | SOLENOID VALVE | 85001- | |
| 7 | \6\ | VALVE BODY | 85001- | |
| 8 | 714-23-15690 | BRACKET | 85001- | |
| 9 | 01252-70510 | BOLT | 85001- | |
| 10 | 20T-62-61970 | BOLT | 85001- | |
| 11 | 01643-30823 | WASHER | 85001- | |
| 12 | 07000-71007 | O-RING (K6) | 85001- | |
| 13 | 08034-00310 | BAND | 85001- | |
| 14 | 17M-22-42100 | VALVE ASS'Y | 85001- | |
| 15 | 07042-80108 | PLUG | 85001- | |
| 16 | 01252-70650 | BOLT | 85001- | |
| 17 | 07000-72010 | O-RING (K6) | 85001- | |
| 18 | 569-15-51720 | FILTER ASS'Y | 85001- | |
| 18 | 569-15-51731 | ELEMENT ASS'Y | 85010- | |
| 18 | \1\569-15-51730 | ELEMENT ASS'Y | 85001-85009 | |
| 18 | 07000-02060 | O-RING (K6) | 85001- | |
| 19 | 07040-11812 | PLUG | 85001- | |
| 20 | 07002-61823 | O-RING (K6) | 85001- | |
| 21 | 07000-73022 | O-RING (K6) | 85001- | |
| 22 | 01010-81035 | BOLT | 85001- | |
| 23 | 01643-31032 | WASHER | 85001- | |
| 24 | 01010-81085 | BOLT | 85001- | |
| 25 | 01643-31032 | WASHER | 85001- | |
| 26 | 07750-01623 | VALVE | 85001- | |
| 27 | 07750-01628 | SPRING | 85001- | |
| 28 | 709-25-11670 | PLATE | 85001- | |
| 29 | 01252-60616 | BOLT | 85001- | |
| 30 | 07000-72021 | O-RING (K6) | 85001- | |
| 31 | 708-7R-11220 | PLUG | 85001- | |
| 32 | 07002-61223 | O-RING (K6) | 85001- | |
| 33 | 07040-12412 | PLUG | 85001- | |
| 34 | 07002-62434 | O-RING (K6) | 85001- | |
| 35 | 02782-10317 | ELBOW | 85001- | |
| 36 | 07002-62034 | O-RING (K6) | 85001- | |
| 37 | 02789-10315 | PLUG | 85001- | |
| 38 | 02896-61009 | O-RING (K6) | 85001- | |
| 39 | 02782-10422 | ELBOW | 85001- | |
| 40 | 07002-62034 | O-RING (K6) | 85001- | |
| 41 | 02896-11012 | O-RING (K6) | 85001- |
