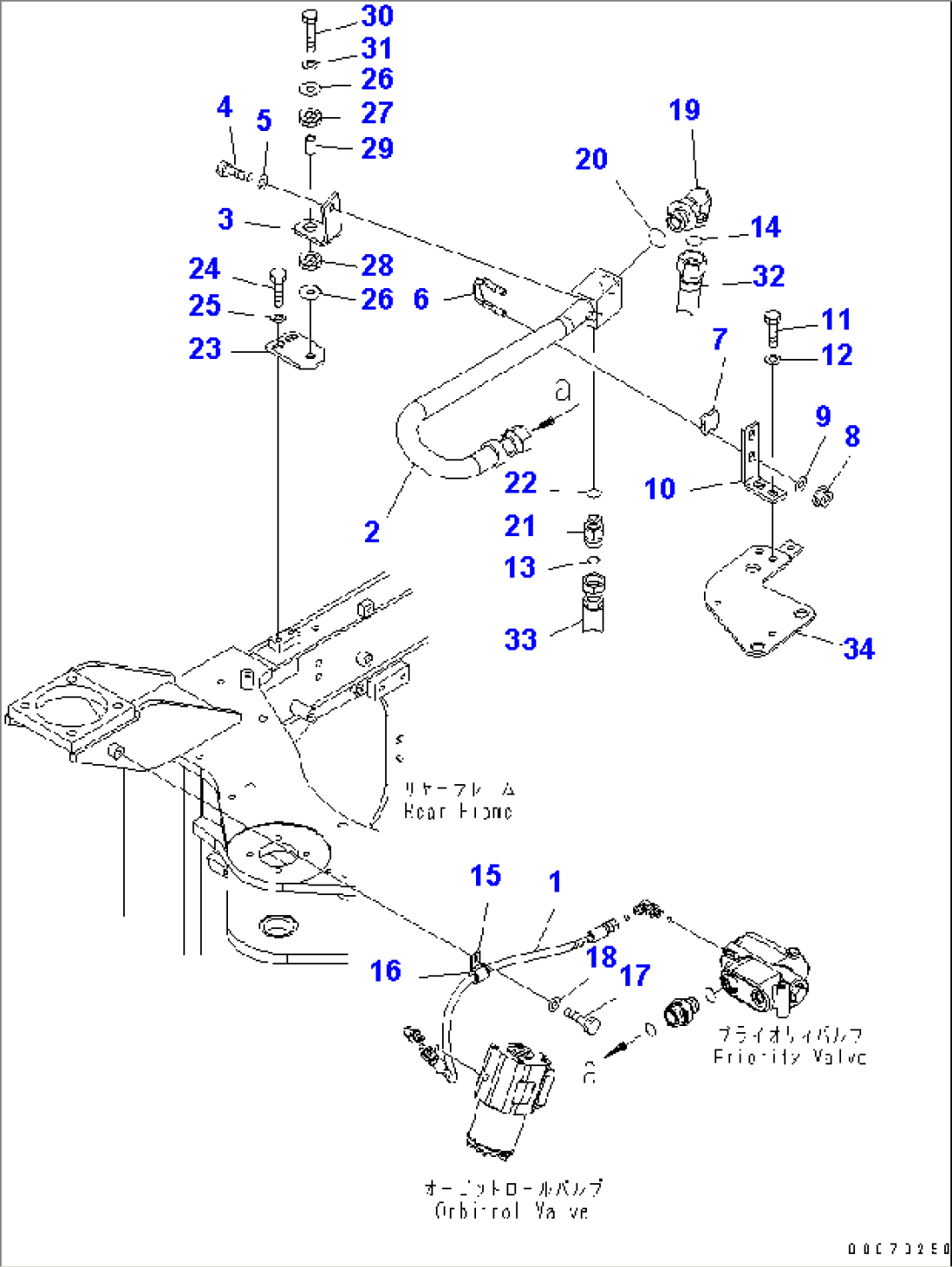

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-31720 | HOSE | A89001- | |
| 2 | 418-62-31525 | TUBE | A89001- | |
| 418-62-32322 | TUBE,(AUXILIARY STEERING) | A89001- | ||
| 3 | 417-62-31240 | PLATE | A89001- | |
| 4 | 01010-81225 | BOLT | A89001- | |
| 5 | 01643-31232 | WASHER | A89001- | |
| 6 | 07283-23450 | CLIP | A89001- | |
| 7 | 07283-53444 | SEAT | A89001- | |
| 8 | 01597-01009 | NUT | A89001- | |
| 9 | 01643-31032 | WASHER | A89001- | |
| 10 | 418-64-35530 | PLATE | A89001- | |
| 11 | 01010-81025 | BOLT | A89001- | |
| 12 | 01643-31032 | WASHER | A89001- | |
| 13 | 02896-11018 | O-RING | A89001- | |
| 14 | 11Y-62-11980 | O-RING | A89001- | |
| 15 | 04434-51710 | CLIP | A89001- | |
| 16 | 07095-20211 | CUSHION | A89001- | |
| 17 | 01010-81020 | BOLT | A89001- | |
| 18 | 01643-31032 | WASHER | A89001- | |
| 19 | 21W-62-42640 | ELBOW | A89001- | |
| 20 | 07002-13334 | O-RING | A89001- | |
| 21 | 02781-00628 | UNION | A89001- | |
| 22 | 07002-12434 | O-RING | A89001- | |
| 23 | 418-64-35550 | PLATE | A89001- | |
| 24 | 01010-81025 | BOLT | A89001- | |
| 25 | 01643-31032 | WASHER | A89001- | |
| 26 | 419-43-17920 | WASHER | A89001- | |
| 27 | 417-62-31170 | CUSHION | A89001- | |
| 28 | 417-62-31180 | CUSHION | A89001- | |
| 29 | 417-62-14130 | SPACER | A89001- | |
| 30 | 01010-81255 | BOLT | A89001- | |
| 31 | 01643-31232 | WASHER | A89001- | |
| 32 | HOSE,(SEE FIG. H4200-01A0) | A89001- | ||
| 33 | HOSE, 660MM,(SEE FIG. H4200-01A0) | A89001- | ||
| 34 | BRACKET,(SEE FIG. H0122-01A0) | A89001- |
