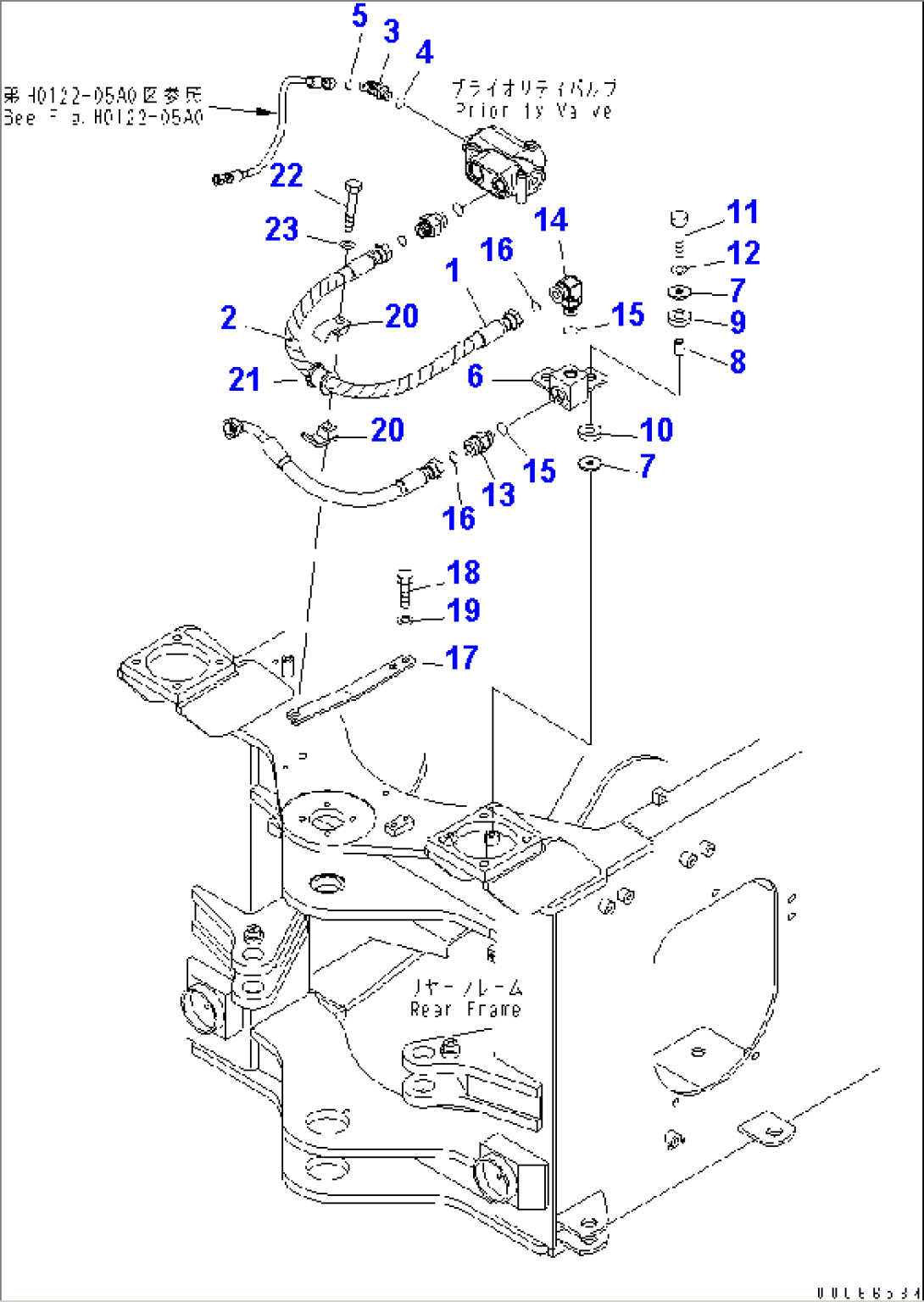

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-42420 | HOSE, 840MM | 70001- | |
| 2 | 08210-01803 | SPIRAL TUBE | 70001- | |
| 3 | 418-62-32162 | ELBOW | 70001- | |
| 4 | 416-62-11480 | O-RING | 70001- | |
| 5 | 02896-11008 | O-RING | 70001- | |
| 6 | 418-62-41920 | BLOCK | 70001- | |
| 7 | 415-64-13120 | WASHER | 70001- | |
| 8 | 417-54-13470 | SPACER | 70001- | |
| 9 | 417-62-31170 | CUSHION | 70001- | |
| 10 | 417-62-31180 | CUSHION | 70001- | |
| 11 | 01010-81050 | BOLT | 70001- | |
| 12 | 01643-31032 | WASHER | 70001- | |
| 13 | 02781-00422 | UNION | 70001- | |
| 14 | 02782-10422 | ELBOW | 70001- | |
| 15 | 07002-12034 | O-RING | 70001- | |
| 16 | 02896-11012 | O-RING | 70001- | |
| 17 | 418-62-41960 | BRACKET | 70001- | |
| 18 | 01010-81025 | BOLT | 70001- | |
| 19 | 01643-31032 | WASHER | 70001- | |
| 20 | 418-03-43880 | CLAMP | 70001- | |
| 21 | 07095-00420 | CUSHION | 70001- | |
| 22 | 01010-81265 | BOLT | 70001- | |
| 23 | 01643-31232 | WASHER | 70001- |
