| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-12520 | TUBE | 63001- | |
| 2 | 07261-20923 | HOSE | 63001- | |
| 3 | 07281-00197 | CLAMP | 63001- | |
| 4 | 04434-51710 | CLIP | 63001- | |
| 5 | 01435-01016 | BOLT | 63001- | |
| 6 | 08034-20536 | BAND | 63001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa350 3 h s/n 63001 up
- Hydraulic system
- Steering valve (steering valve drain line)
Поиск по каталогу

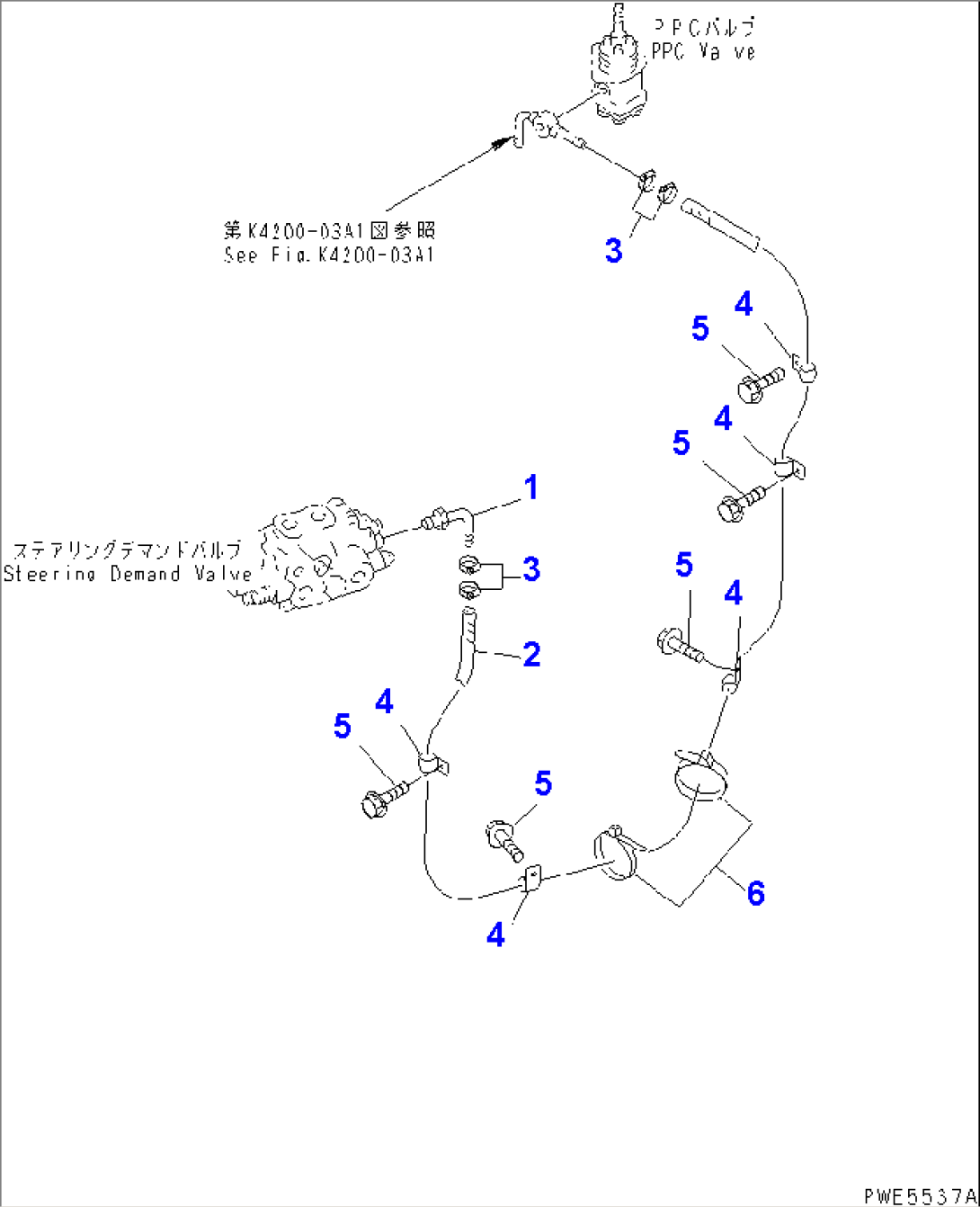

STEERING VALVE (STEERING VALVE DRAIN LINE)
