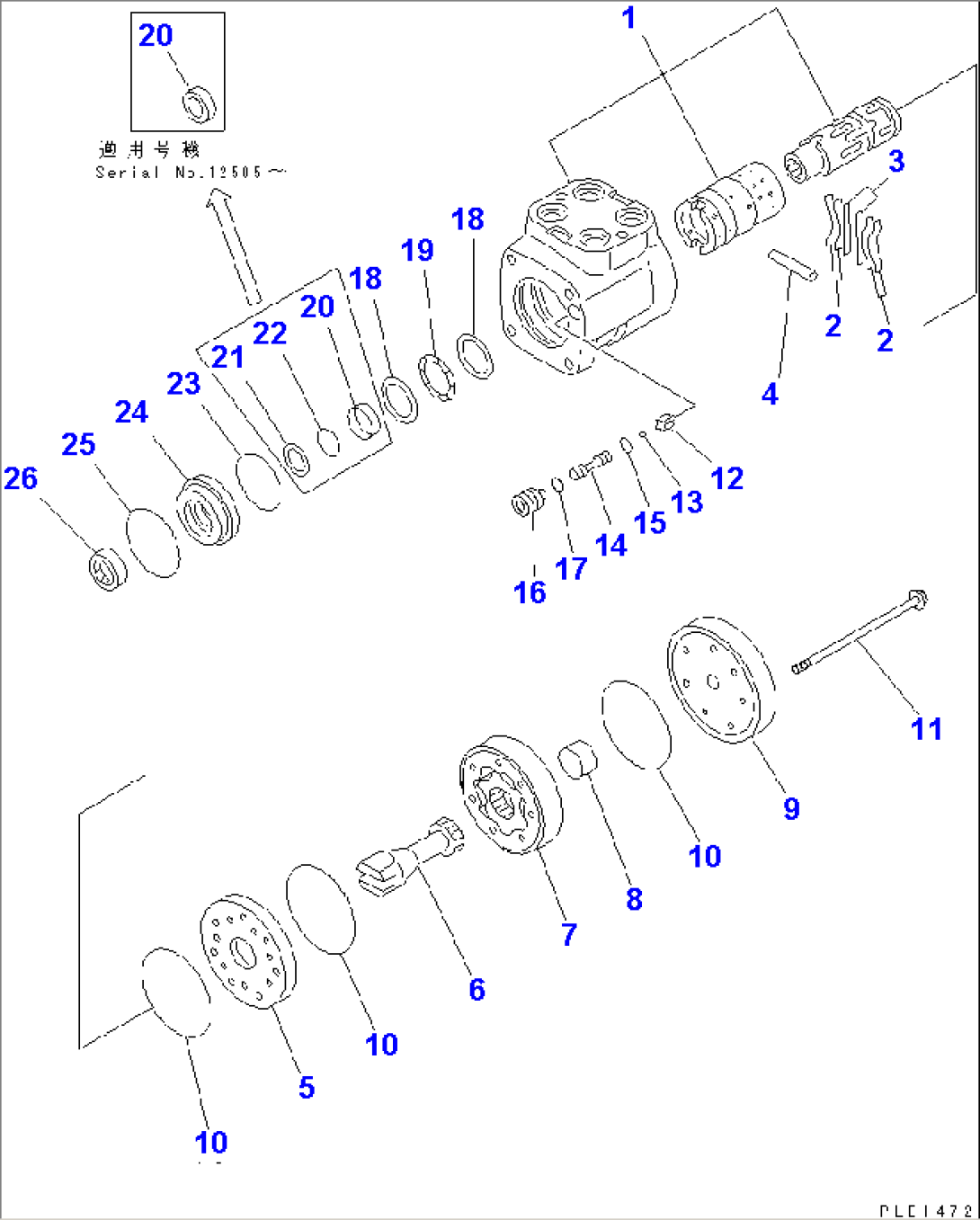

| Item | Part No. | Part Name | Qty | Serial No. |
| 415-64-11102 | VALVE ASS'Y | 12505- | ||
| \0\415-64-11101 | VALVE ASS'Y | 12001-12504 | ||
| 1 | 415-64-11410 | CONTROL ASS'Y | 12001- | |
| 2 | 416-64-15190 | SPRING | 12001- | |
| 3 | 417-64-15110 | SPRING | 12001- | |
| 4 | 416-64-15410 | PIN | 10001- | |
| 5 | 416-64-15160 | PLATE,SPACER | 10001- | |
| 6 | 416-64-15170 | DRIVE | 10001- | |
| 7 | 415-64-11130 | GEROTOR | 10001- | |
| 8 | 415-64-11140 | SPACER | 10001- | |
| 9 | 416-64-15130 | CAP,END | 10001- | |
| 10 | 416-64-15520 | O-RING (K5) | 10001- | |
| 11 | 415-64-11110 | SCREW | 10001- | |
| 12 | 416-64-15470 | RETAINER | 10001- | |
| 13 | 416-64-15460 | BALL | 10001- | |
| 14 | 416-64-15440 | SEAT,CHECK | 10001- | |
| 15 | 416-64-15450 | O-RING (K5) | 10001- | |
| 16 | 416-64-15420 | SCREW,SET | 10001- | |
| 17 | 416-64-15430 | O-RING (K5) | 10001- | |
| 416-64-15480 | BEARING ASS'Y | 10001- | ||
| 18 | 416-64-15490 | RACE,BEARING | 10001- | |
| 19 | 416-64-15510 | NEEDLE | 10001- | |
| 20 | 416-64-15581 | SEAL,OIL (K5) | 12505- | |
| 20 | 416-64-15580 | SEAL,OIL (K5) | 12001-12504 | |
| 21 | 416-64-15590 | RING,BACK-UP (K5) | 12001-12504 | |
| 22 | 416-64-15570 | O-RING (K5) | 12001-12504 | |
| 23 | 416-64-15560 | O-RING (K5) | 12001- | |
| 24 | 416-64-15540 | BUSHING | 12001- | |
| 25 | 416-64-15530 | RING | 12001- | |
| 26 | 416-64-15550 | SEAL,DUST (K5) | 12001- |
