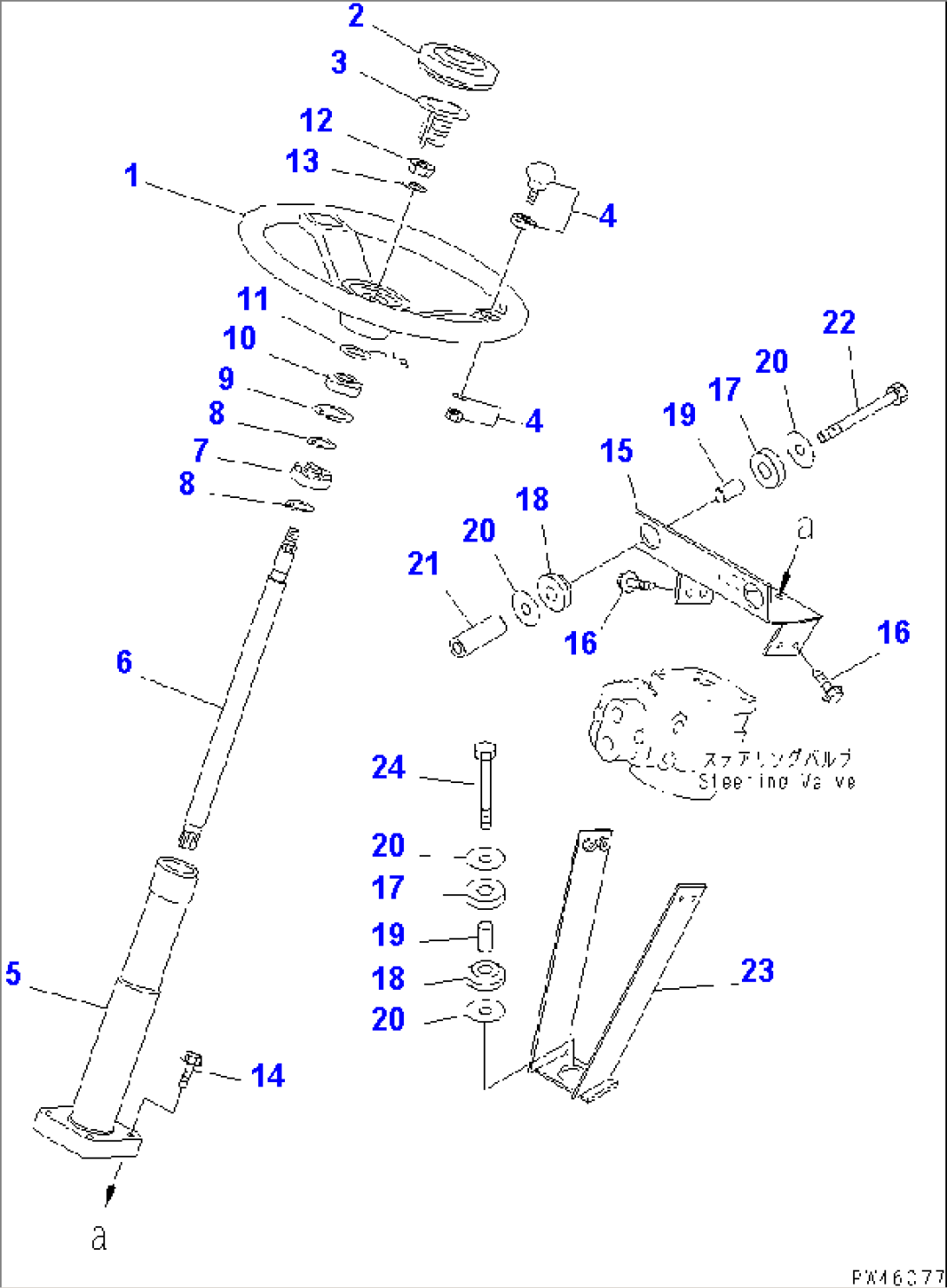

Item | Part No. | Part Name | Qty | Serial No. |
1 | 363-43-25110 | WHEEL | 20001- | |
2 | 363-43-25120 | BUTTON,HORN | 20001- | |
3 | 363-43-25130 | CAP,CONTACT | 20001- | |
4 | 363-43-25140 | GRIP ASS'Y | 20001- | |
363-40-32211 | COLUMN ASS'Y | 20094- | ||
\0\363-40-32210 | COLUMN ASS'Y | 20001-20093 | ||
5 | 363-40-32221 | COLUMN | 20094- | |
5 | \0\363-40-32220 | COLUMN | 20001-20093 | |
6 | 363-40-32231 | SHAFT | 20094- | |
6 | \3\363-40-32230 | SHAFT | 20001-20093 | |
(363-40-32231,01641-21223, | ||||
01582-11210) | ||||
7 | 06002-06004 | BEARING | 20001- | |
8 | 04064-02012 | RING,SNAP | 20001- | |
9 | 04065-04218 | RING,SNAP | 20001- | |
10 | 363-43-25170 | SEAT | 20001- | |
11 | 363-43-25180 | RING | 20001- | |
12 | 01582-11210 | NUT | 20094- | |
12 | 421-40-12440 | NUT | 20001-20093 | |
13 | 01641-21223 | WASHER | 20094- | |
13 | 421-40-12450 | WASHER | 20001-20093 | |
14 | 01435-01035 | BOLT | 20094- | |
14 | 01435-01045 | BOLT | 20001-20093 | |
15 | 363-40-32171 | BRACKET | 20001- | |
16 | 01435-01020 | BOLT | 20001- | |
17 | 417-62-13620 | CUSHION | 20001- | |
18 | 363-40-32160 | CUSHION | 20001- | |
19 | 417-62-14130 | SPACER | 20001- | |
20 | 419-43-17920 | WASHER | 20001- | |
21 | 363-40-32140 | SPACER | 20001- | |
22 | 01011-81215 | BOLT | 20001- | |
23 | 363-40-32180 | BRACKET | 20001- | |
24 | 01010-81245 | BOLT | 20001- |
