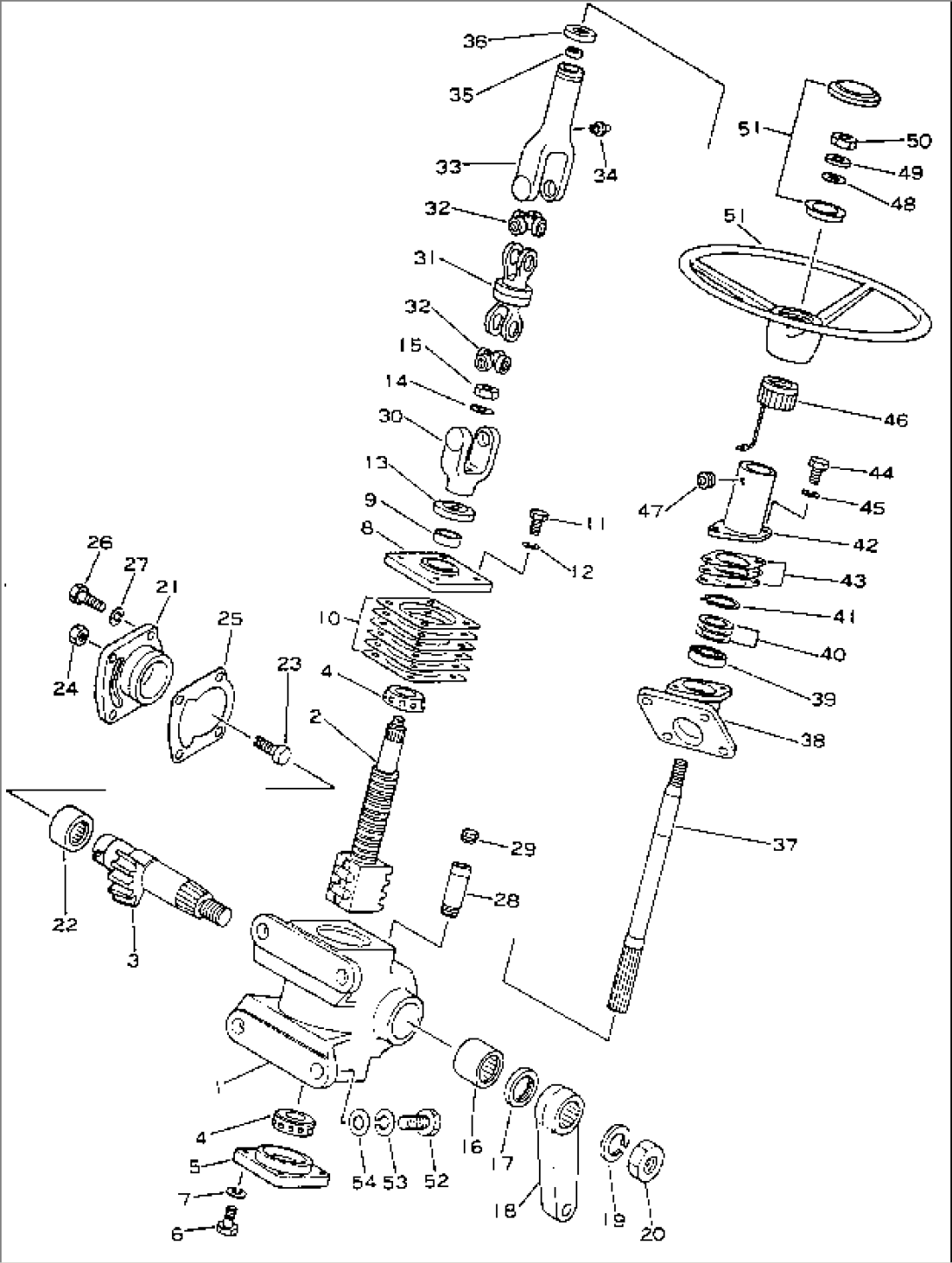

| Item | Part No. | Part Name | Qty | Serial No. |
| 566-40-12003 | STEERING WHEEL ASS'Y | 1002- | ||
| 566-40-02010 | BOX ASS'Y | 1002- | ||
| 1 | 566-40-12410 | BOX | 1002- | |
| 2 | 566-40-12420 | SHAFT ASS'Y | 1002- | |
| 3 | 566-40-12220 | SHAFT | 1002- | |
| 4 | 06001-30305 | BEARING | 1002- | |
| 5 | 566-40-12430 | COVER | 1002- | |
| 6 | 01010-31025 | BOLT | 1002- | |
| 7 | 01602-01030 | WASHER | 1002- | |
| 8 | 566-40-12440 | COVER | 1002- | |
| 9 | 566-40-12450 | SEAL | 1002- | |
| 10 | 566-40-00011 | SHIM ASS'Y | 1002- | |
| 10 | \6\ | SHIM, 0.05MM | 1002- | |
| 10 | \6\ | SHIM, 0.07MM | 1002- | |
| 10 | \6\ | SHIM, 0.08MM | 1002- | |
| 10 | \6\ | SHIM, 0.10MM | 1002- | |
| 10 | \6\ | SHIM, 0.20MM | 1002- | |
| 10 | \6\ | SHIM, 0.50MM | 1002- | |
| 11 | 01010-31025 | BOLT | 1002- | |
| 12 | 01602-01030 | WASHER | 1002- | |
| 13 | 566-40-12460 | COVER | 1002- | |
| 14 | 01650-21616 | WASHER | 1002- | |
| 15 | 01583-01610 | NUT | 1002- | |
| 16 | 566-40-12270 | BEARING | 1002- | |
| 17 | 566-40-12280 | SEAL | 1002- | |
| 18 | 566-40-12211 | ARM | 1002- | |
| 19 | 01602-02783 | WASHER | 1002- | |
| 20 | 01582-02722 | NUT | 1002- | |
| 21 | 566-40-12230 | COVER | 1002- | |
| 22 | 566-40-12260 | BEARING | 1002- | |
| 23 | 566-40-12250 | SCREW | 1002- | |
| 24 | 01583-01408 | NUT | 1002- | |
| 25 | 566-40-12240 | GASKET | 1002- | |
| 26 | 01050-31020 | BOLT | 1002- | |
| 27 | 01602-01030 | WASHER | 1002- | |
| 28 | 566-40-12480 | NIPPLE | 1002- | |
| 29 | 566-40-12470 | PLUG | 1002- | |
| 566-40-02020 | YOKE ASS'Y | 1002- | ||
| 30 | 566-40-12620 | YOKE | 1002- | |
| 31 | 566-40-12590 | YOKE | 1002- | |
| 32 | 566-40-12570 | SPIDER | 1002- | |
| 33 | 566-40-12580 | YOKE | 1002- | |
| 34 | 07020-00001 | FITTING | 1002- | |
| 35 | 566-40-12610 | RING | 1002- | |
| 36 | 566-40-12630 | COVER | 1002- | |
| 566-40-02030 | SHAFT ASS'Y | 1002- | ||
| 37 | 566-40-12510 | SHAFT | 1002- | |
| 38 | 566-40-12550 | HOUSING | 1002- | |
| 39 | 566-40-12520 | BEARING | 1002- | |
| 40 | 566-40-00021 | SHIM ASS'Y | 1002- | |
| 40 | \6\ | SHIM | 1002- | |
| 40 | \6\ | SHIM | 1002- | |
| 40 | \6\ | SHIM | 1002- | |
| 41 | 566-40-12560 | RING | 1002- | |
| 42 | 566-40-12490 | COLUMN | 1002- | |
| 43 | 566-40-00031 | SHIM ASS'Y | 1002- | |
| 43 | \6\ | SHIM, 0.05MM | 1002- | |
| 43 | \6\ | SHIM, 0.1MM | 1002- | |
| 43 | \6\ | SHIM, 0.2MM | 1002- | |
| 44 | 01010-30820 | BOLT | 1002- | |
| 45 | 01602-00825 | WASHER | 1002- | |
| 46 | 281-40-12390 | BUSHING | 1002- | |
| 47 | 281-40-12470 | GROMMET | 1002- | |
| 48 | 281-40-12510 | WASHER | 1002- | |
| 49 | 281-40-12490 | WASHER | 1002- | |
| 50 | 281-40-12480 | NUT | 1002- | |
| 51 | 569-40-12100 | STEERING WHEEL ASS'Y | 1002- | |
| 52 | 01010-51245 | BOLT | 1002- | |
| 53 | 01602-21236 | WASHER | 1002- | |
| 54 | 01643-21232 | WASHER | 1002- |
