| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21N-30-37570 | LADDER | 30001- | |
| 2 | 01010-81635 | BOLT | 30001- | |
| 3 | 01643-31645 | WASHER | 30001- | |
| 4 | 21N-30-37580 | BRACKET | 30001- | |
| 5 | 01010-81645 | BOLT | 30001- | |
| 6 | 01643-31645 | WASHER | 30001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc1250lc 8 s/n 30001 30157 (ecot3) (for lc)
- Under carriage
- Step (track frame side) (for 1200mm wide shoe)(#30001 )
Поиск по каталогу

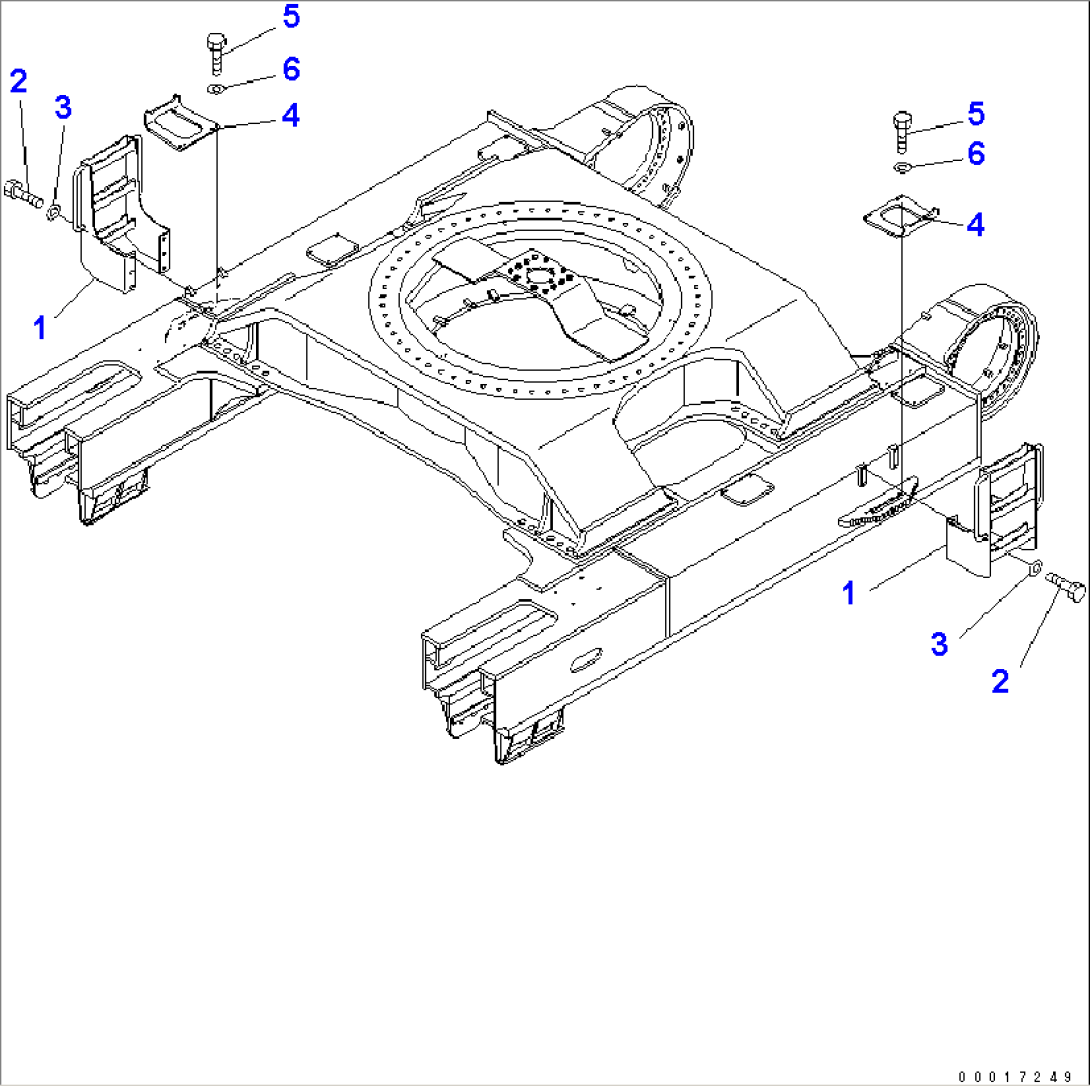

STEP (TRACK FRAME SIDE) (FOR 1200MM WIDE SHOE)(#30001-)
