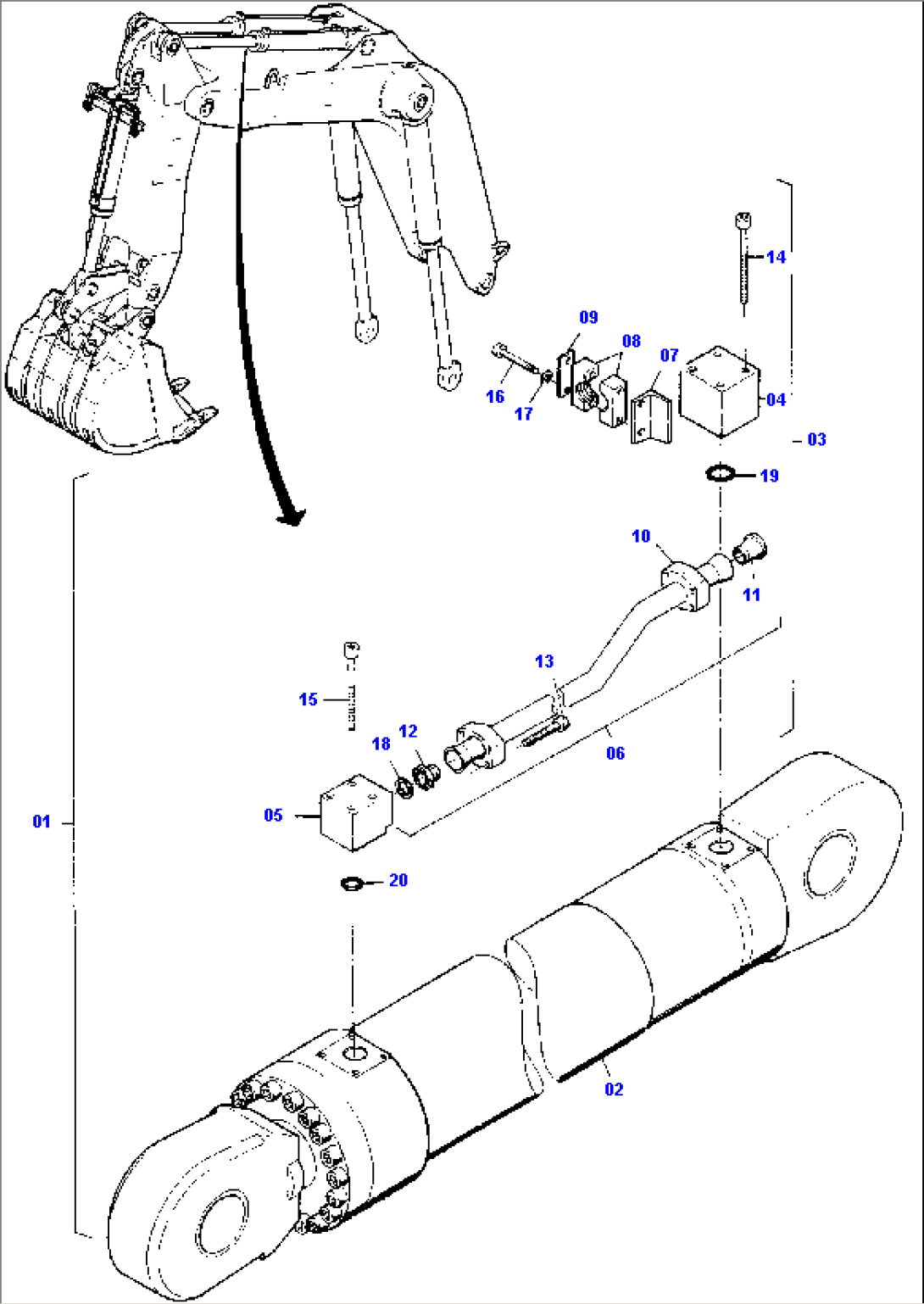

| Item | Part No. | Part Name | Qty | Serial No. |
| 01 | 627 534 40 | Stick cylinder consist. of fig-nos: 02+03 | ||
| 02 | Hydraulic cylinder | |||
| 03 | 494 191 40 | Pipes, l.h. and r.h. consist. of fig-nos: 04-20 | ||
| 04 | 304 142 40 | Connecting block | ||
| 05 | 438 959 40 | Connecting block | ||
| 06 | 698 822 73 | Pipe assy. Ã 50 | ||
| 07 | 301 894 40 | Weld on angle | ||
| 08 | 502 977 98 | Half clamp | ||
| 09 | 534 008 99 | Plate | ||
| 10 | 500 127 98 | Flange | ||
| 11 | 500 203 98 | Ring | ||
| 12 | 501 898 98 | Ring | ||
| 13 | 319 289 99 | Bolt | ||
| 14 | 319 303 99 | Bolt | ||
| 15 | 319 193 99 | Bolt | ||
| 16 | 308 459 99 | Bolt | ||
| 17 | 343 006 99 | Washer | ||
| 18 | 356 209 40 | Quadring | ||
| 19 | 367 135 99 | O-ring | ||
| 20 | 006 728 98 | O-ring |
