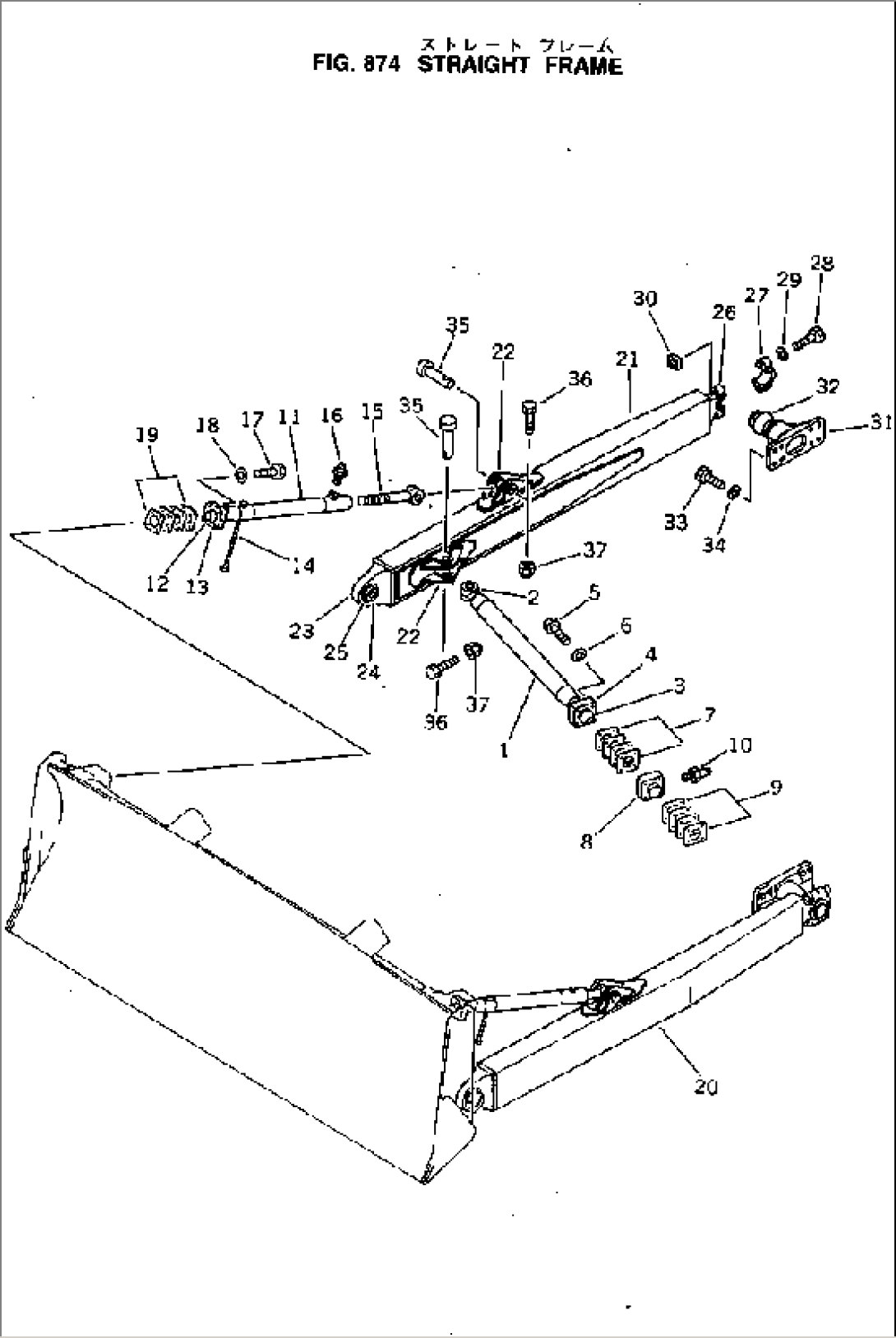

| Item | Part No. | Part Name | Qty | Serial No. |
| 144-920-0121 | BRACE ASS'Y | 45001- | ||
| 1 | 144-920-2711 | BRACE | 45001- | |
| 2 | 144-920-2592 | BOSS | 45001- | |
| 3 | 144-920-2610 | JOINT,BALL | 45001- | |
| 4 | 144-817-2420 | RETAINER | 45001- | |
| 5 | 144-920-2720 | BOLT | 45001- | |
| 6 | 01643-32060 | WASHER | 45001- | |
| 7 | 144-920-0610 | SHIM KIT | 45001- | |
| \6\ | SHIM¤ 1.0MM | 45001- | ||
| \6\ | SHIM¤ 0.5MM | 45001- | ||
| 8 | 144-920-1590 | RETAINER | 45001- | |
| 9 | 144-920-0620 | SHIM KIT | 45001- | |
| \6\ | SHIM¤ 6.0MM | 45001- | ||
| \6\ | SHIM¤ 1.0MM | 45001- | ||
| 10 | 07020-00000 | FITTING,GREASE | 45001- | |
| 144-920-0021 | TILT BRACE ASS'Y | 45001- | ||
| 11 | 144-920-2113 | BRACE | 45001- | |
| 12 | 144-817-2171 | JOINT | 45001- | |
| 13 | 144-817-2361 | RETAINER | 45001- | |
| 14 | 144-817-2280 | ROD | 45001- | |
| 15 | 144-920-2122 | JOINT | 45001- | |
| 16 | 07020-00000 | FITTING,GREASE | 45001- | |
| 17 | 01010-31865 | BOLT | 45001- | |
| 18 | 01643-31845 | WASHER | 45001- | |
| 19 | 144-817-0620 | SHIM ASS'Y | 45001- | |
| \6\ | SHIM¤ 1.0MM | 45001- | ||
| \6\ | SHIM¤ 0.5MM | 45001- | ||
| 144-920-0131 | FRAME ASS'Y,L.H. | 45001- | ||
| 144-920-0141 | FRAME ASS'Y,R.H. | 45001- | ||
| 20 | \6\ | FRAME,L.H. | 45001- | |
| 21 | \6\ | FRAME,R.H. | 45001- | |
| 22 | 144-920-3172 | BRACKET (WELDED) | 45001- | |
| 23 | 144-Z20-3420 | JOINT (WELDED) | 45001- | |
| 24 | 144-817-3150 | BUSHING (WELDED) | 45001- | |
| 25 | 140-920-3180 | BUSHING (WELDED) | 45001- | |
| 26 | \6\ | PIVOT,(WELDED) (KIT) | 45001- | |
| 27 | 140-70-13151 | CAP (KIT) | 45001- | |
| 28 | 01011-82430 | BOLT (KIT) | 45001- | |
| 29 | 01643-32460 | WASHER (KIT) | 45001- | |
| 30 | 130-70-13241 | NUT (KIT) | 45001- | |
| 31 | 144-920-3211 | TRUNNION | 45001- | |
| 32 | 144-920-3191 | SHAFT | 45001- | |
| 33 | 01010-32045 | BOLT | 45001- | |
| 34 | 01643-32060 | WASHER | 45001- | |
| 35 | 13F-Z27-5610 | PIN | 45001- | |
| 36 | 01010-51265 | BOLT | 45001- | |
| 37 | 01598-01214 | NUT | 45001- | |
| SERVICE KIT | ||||
| 140-70-00032 | PIVOT ASS'Y | 45001- | ||
| 26 | \6\ | PIVOT | 45001- | |
| 27 | 140-70-13151 | CAP | 45001- | |
| 28 | 01011-82430 | BOLT | 45001- | |
| 29 | 01643-32460 | WASHER | 45001- | |
| 30 | 130-70-13241 | NUT | 45001- |
