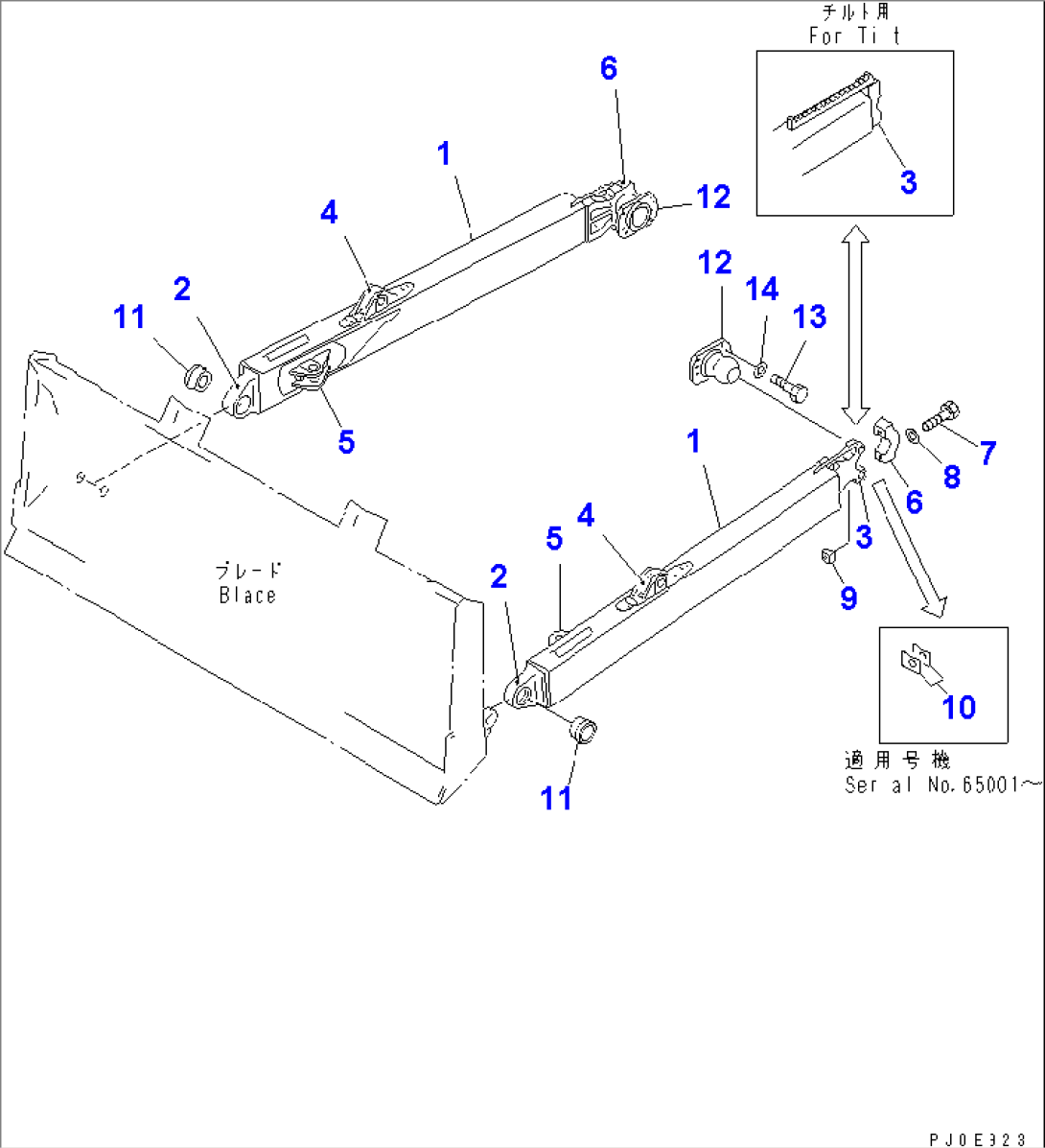

| Item | Part No. | Part Name | Qty | Serial No. |
| 14Y-71-00131 | FRAME ASS'Y,L.H. | 62110- | ||
| \0\14Y-71-00130 | FRAME ASS'Y,L.H. | 61376-62109 | ||
| 14Y-71-00030 | FRAME ASS'Y,L.H. | 60942-61375 | ||
| 14Y-71-00141 | FRAME ASS'Y,R.H. | 62110- | ||
| \0\14Y-71-00140 | FRAME ASS'Y,R.H. | 61376-62109 | ||
| 14Y-71-00040 | FRAME ASS'Y,R.H. | 60942-61375 | ||
| 1 | \6\ | FRAME,L.H. | 62110- | |
| 1 | \6\ | FRAME,L.H. | 61376-62109 | |
| 1 | \6\ | FRAME,L.H. | 60942-61375 | |
| 1 | \6\ | FRAME,R.H. | 62110- | |
| 1 | \6\ | FRAME,R.H. | 61376-62109 | |
| 1 | \6\ | FRAME,R.H. | 60942-61375 | |
| 2 | 14X-952-1390 | JOINT (WELDED) | 61376- | |
| 2 | 14X-952-1190 | JOINT (WELDED) | 60942-61375 | |
| 3 | \6\ | BEARING,(WELDED) (KIT) | 61376- | |
| 3 | \6\ | BEARING,(WELDED) (KIT) | 61376- | |
| 3 | \6\ | BEARING,(WELDED) (KIT) | 60942-61375 | |
| 4 | 14Y-71-12230 | BRACKET (WELDED) | 60942- | |
| 5 | 14Y-71-13181 | BRACKET (WELDED) | 62110- | |
| 5 | 14Y-71-13180 | BRACKET (WELDED) | 60942-62109 | |
| 6 | 14Y-71-22150 | CAP (KIT) | 65001- | |
| 6 | 14Y-71-12150 | CAP (KIT) | 60942-65000 | |
| 7 | 01011-82465 | BOLT (KIT) | 60942- | |
| 8 | 01643-32460 | WASHER (KIT) | 60942- | |
| 9 | 130-70-13241 | NUT (KIT) | 60942- | |
| 10 | 14Y-71-22280 | SHIM, T=1.0 (KIT) | 65001- | |
| 11 | 14X-71-12230 | BEARING | 60942- | |
| 12 | 14Z-71-33212 | TRUNNION | 65775- | |
| 12 | \0\14Y-71-13211 | TRUNNION | 60942-65774 | |
| 13 | 01010-82065 | BOLT | 60942- | |
| 14 | 01643-32060 | WASHER | 60942- | |
| SERVICE KIT | ||||
| 3 | 14Y-71-00081 | PIVOT ASS'Y,L.H. | 65001- | |
| 3 | \0\14Y-71-00080 | PIVOT ASS'Y,L.H. | 61376-65000 | |
| 3 | 14Y-71-00091 | PIVOT ASS'Y,R.H. | 65001- | |
| 3 | \0\14Y-71-00090 | PIVOT ASS'Y,R.H. | 61376-65000 | |
| 3 | \0\14Y-71-00070 | PIVOT ASS'Y | 60942-61375 | |
| 3 | \6\ | BEARING,L.H. | 61376- | |
| 3 | \6\ | BEARING,R.H. | 61376- | |
| 3 | \6\ | BEARING | 60942-61375 | |
| 6 | 14Y-71-22150 | CAP | 65001- | |
| 6 | 14Y-71-12150 | CAP | 60942-65000 | |
| 7 | 01011-82465 | BOLT | 60942- | |
| 8 | 01643-32460 | WASHER | 60942- | |
| 9 | 130-70-13241 | NUT | 60942- | |
| 10 | 14Y-71-22280 | SHIM, T=1.0 | 65001- |
