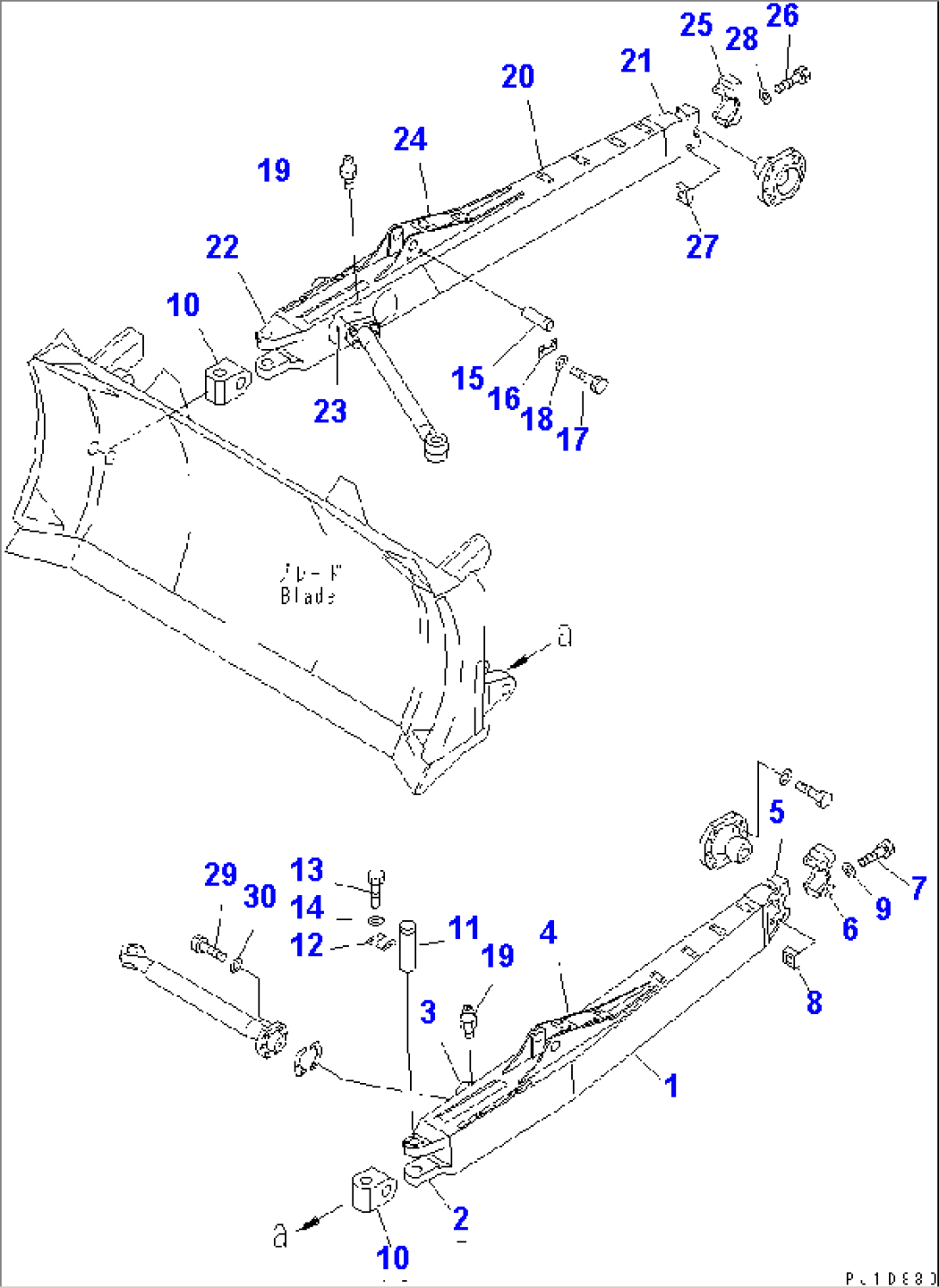

| Item | Part No. | Part Name | Qty | Serial No. |
| 17M-71-00130 | FRAME ASS'Y,L.H. | 10001- | ||
| 1 | 17M-71-22710 | FRAME,L.H. | 10001- | |
| 2 | 17M-71-21180 | BRACKET,L.H. (WELDED) | 10001- | |
| 3 | 17M-71-21211 | BRACKET,L.H. (WELDED) | 10001- | |
| 4 | 17M-71-21350 | BRACKET,L.H. (WELDED) | 10001- | |
| 5 | 17M-71-21951 | BRACKET,L.H. (WELDED) | 10001- | |
| 6 | 17M-71-21970 | CAP | 10001- | |
| 7 | 175-71-11491 | BOLT | 10001- | |
| 8 | 175-71-11520 | NUT | 10001- | |
| 9 | 01643-32260 | WASHER | 10001- | |
| 10 | 17M-71-21380 | JOINT | 10001- | |
| 11 | 17M-71-21390 | PIN | 10001- | |
| 12 | 17M-71-21610 | LOCK | 10001- | |
| 13 | 01010-61640 | BOLT | 10001- | |
| 14 | 01643-31645 | WASHER | 10001- | |
| 15 | 17M-71-21720 | PIN | 10001- | |
| 16 | 17M-71-21730 | LOCK | 10001- | |
| 17 | 01010-61640 | BOLT | 10001- | |
| 18 | 01643-31645 | WASHER | 10001- | |
| 19 | 07020-00000 | FITTING,GREASE | 10001- | |
| 17M-71-00140 | FRAME ASS'Y,R.H. | 10001- | ||
| 20 | 17M-71-22720 | FRAME,R.H. | 10001- | |
| 21 | 17M-71-21951 | BRACKET,R.H. (WELDED) | 10001- | |
| 22 | 17M-71-21190 | BRACKET,R.H. (WELDED) | 10001- | |
| 23 | 17M-71-21221 | BRACKET,R.H. (WELDED) | 10001- | |
| 24 | 17M-71-21360 | BRACKET,R.H. (WELDED) | 10001- | |
| 25 | 17M-71-21970 | CAP | 10001- | |
| 26 | 175-71-11491 | BOLT | 10001- | |
| 27 | 175-71-11520 | NUT | 10001- | |
| 28 | 01643-32260 | WASHER | 10001- | |
| 29 | 195-71-31360 | BOLT | 10001- | |
| 30 | 01643-32780 | WASHER | 10001- |
