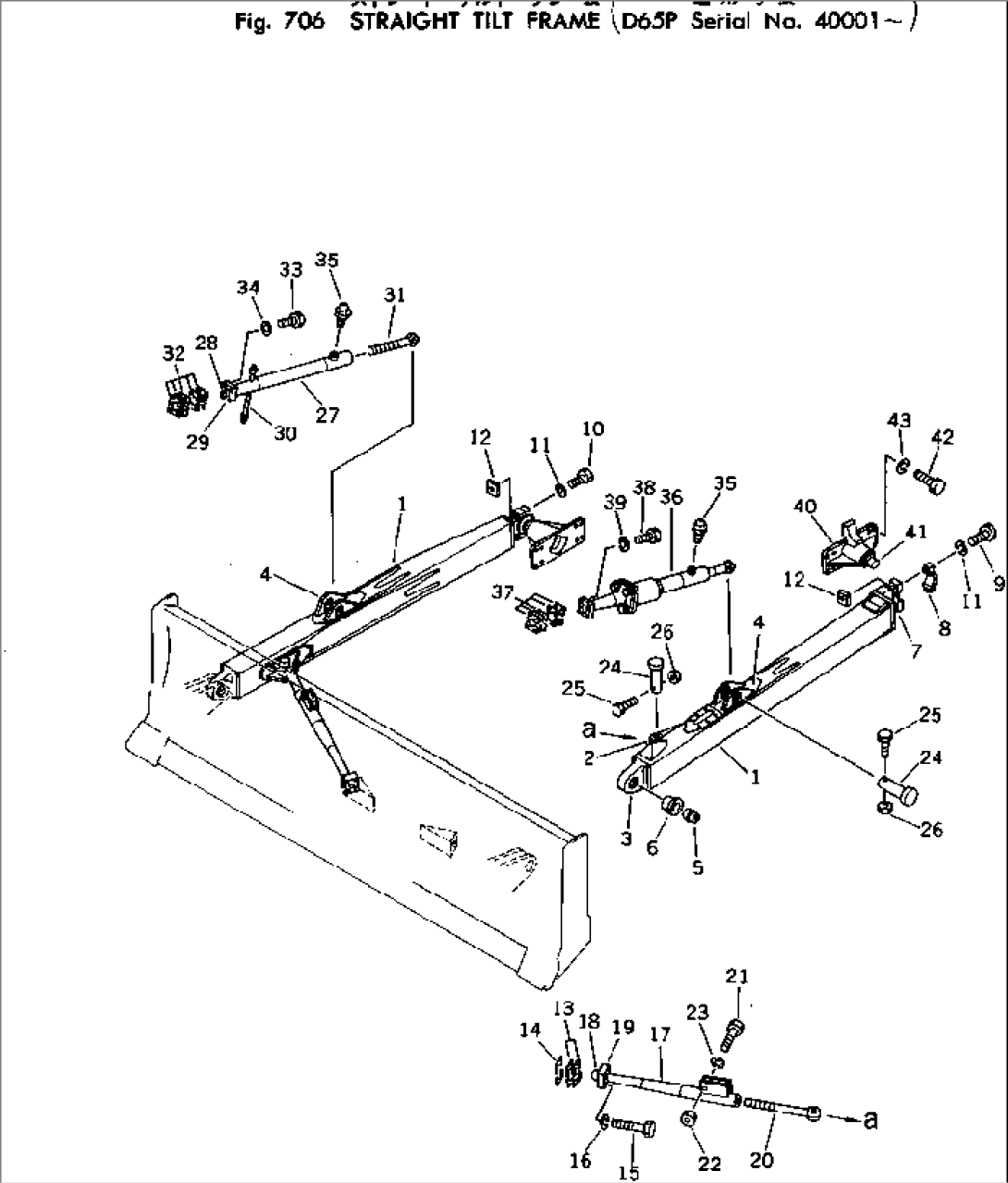

| Item | Part No. | Part Name | Qty | Serial No. |
| 144-Z17-0010 | FRAME ASS'Y,L.H. | 40001- | ||
| 144-Z17-0020 | FRAME ASS'Y,R.H. | 40001- | ||
| 1 | 144-Z17-3110 | FRAME,L.H. | 40001- | |
| 144-Z17-3120 | FRAME,R.H. | 40001- | ||
| 2 | 144-920-3172 | BRACKET (WELDED) | 40001- | |
| 3 | 144-917-3232 | JOINT (WELDED) | 40001- | |
| 4 | 144-Z20-3180 | BRACKET,L.H. (WELDED) | 40001- | |
| 144-920-3172 | BRACKET,R.H. (WELDED) | 40001- | ||
| 5 | 13F-Z27-2260 | BUSHING | 40001- | |
| 6 | 13F-Z27-2250 | BUSHING | 40001- | |
| 144-Z20-0110 | PIVOT ASS'Y,L.H. | 40001- | ||
| 140-70-00032 | PIVOT ASS'Y,R.H. | 40001- | ||
| 7 | \6\ | BEARING,L.H. | 40001- | |
| \6\ | PIVOT,R.H. | 40001- | ||
| 8 | \6\ | CAP,L.H. | 40001- | |
| \6\ | CAP,R.H. | 40001- | ||
| 9 | 01011-82465 | BOLT,L.H. | 40001- | |
| 10 | 01011-82430 | BOLT,R.H. | 40001- | |
| 11 | 01602-22472 | WASHER | 40001- | |
| 12 | 130-70-13241 | NUT | 40001- | |
| 13 | 144-817-2381 | SHIM¤ 1.0MM | 40001- | |
| 14 | 144-817-2391 | SHIM¤ 0.5MM | 40001- | |
| 15 | 01010-52070 | BOLT | 40001- | |
| 16 | 01602-22060 | WASHER | 40001- | |
| 144-817-0023 | BRACE ASS'Y | 40001- | ||
| 17 | 144-817-2324 | BRACE | 40001- | |
| 18 | 144-920-2610 | JOINT | 40001- | |
| 19 | 144-817-2420 | RETAINER | 40001- | |
| 20 | 144-817-2570 | JOINT | 40001- | |
| 21 | 01011-52025 | BOLT | 40001- | |
| 22 | 01580-12016 | NUT | 40001- | |
| 23 | 01643-22045 | WASHER | 40001- | |
| 24 | 13F-Z27-5610 | PIN | 40001- | |
| 25 | 01010-51265 | BOLT | 40001- | |
| 26 | 01598-01214 | NUT | 40001- | |
| 144-817-0034 | BRACE ASS'Y | 40001- | ||
| 27 | 144-817-2343 | BRACE | 40001- | |
| 28 | 144-817-2171 | JOINT | 40001- | |
| 29 | 144-817-2361 | RETAINER | 40001- | |
| 30 | 144-817-2280 | ROD | 40001- | |
| 31 | 144-Z17-2110 | JOINT | 40001- | |
| 32 | 144-817-0620 | SHIM ASS'Y | 40001- | |
| 144-817-2260 | SHIM¤ 0.5MM | 40001- | ||
| 144-817-2250 | SHIM¤ 1.0MM | 40001- | ||
| 33 | 01010-51865 | BOLT | 40001- | |
| 34 | 01643-21845 | WASHER | 40001- | |
| 35 | 07020-00000 | FITTING | 40001- | |
| 36 | (144-63-52200) | CYLINDER ASS'Y | 40001- | |
| 37 | 144-817-0620 | SHIM ASS'Y | 40001- | |
| 144-817-2260 | SHIM¤ 0.5MM | 40001- | ||
| 144-817-2250 | SHIM¤ 1.0MM | 40001- | ||
| 38 | 01010-51865 | BOLT | 40001- | |
| 39 | 01643-21845 | WASHER | 40001- | |
| 40 | 144-Z17-3160 | TRUNNION,L.H. | 40001- | |
| 144-Z17-3180 | TRUNNION,R.H. | 40001- | ||
| 41 | 144-Z20-3150 | SHAFT,L.H. (WELDED) | 40001- | |
| 144-920-3191 | SHAFT,R.H. (WELDED) | 40001- | ||
| 42 | 01010-52045 | BOLT | 40001- | |
| 43 | 01643-32060 | WASHER | 40001- |
