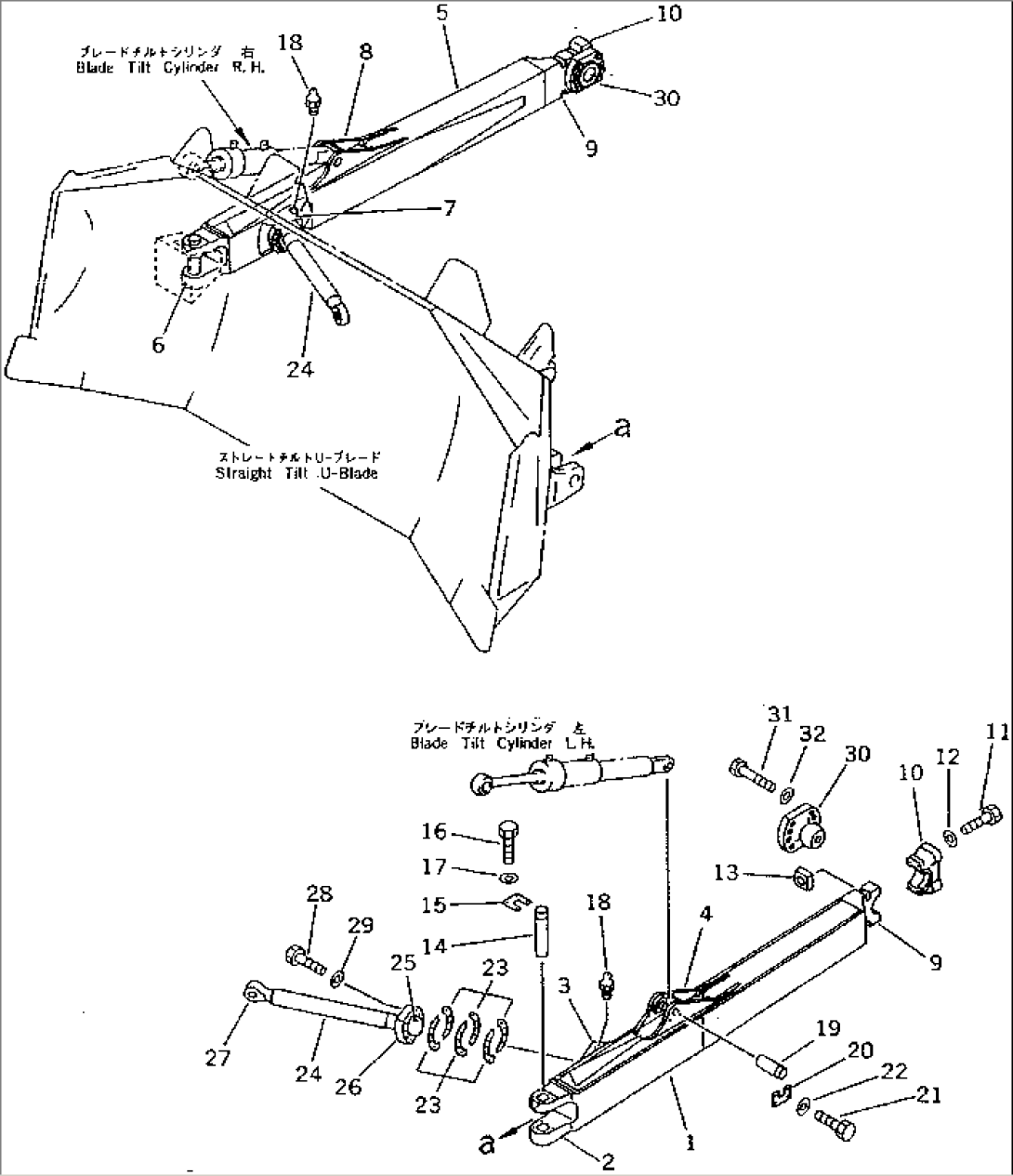

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\198-71-X6200) | FRAME GROUP,STRAIGHT TILT | 10201- | |
| ==================== | ||||
| 1 | 198-71-31332 | FRAME,L.H. | 10280- | |
| \0\198-71-31331 | FRAME,L.H. | 10201-10279 | ||
| 2 | 198-71-31180 | BRACKET,L.H. (WELDED) | 10201- | |
| 3 | 198-71-31211 | BRACKET,L.H. (WELDED) | 10201- | |
| 4 | 198-71-31351 | BRACKET,L.H. (WELDED) | 10201- | |
| 5 | 198-71-31342 | FRAME,R.H. | 10280- | |
| \0\198-71-31341 | FRAME,R.H. | 10201-10279 | ||
| 6 | 198-71-31190 | BRACKET,R.H. (WELDED) | 10201- | |
| 7 | 198-71-31221 | BRACKET,R.H. (WELDED) | 10201- | |
| 8 | 198-71-31361 | BRACKET,R.H. (WELDED) | 10201- | |
| 198-71-00241 | BRACKET ASS'Y | 10280- | ||
| \0\198-71-00240 | BRACKET ASS'Y | 10201-10279 | ||
| 9 | 198-71-21191 | BRACKET | 10280- | |
| \0\198-71-21190 | BRACKET | 10201-10279 | ||
| 10 | 198-71-21211 | CAP | 10280- | |
| \0\198-71-21210 | CAP | 10201-10279 | ||
| 11 | 198-61-11250 | BOLT | 10201- | |
| 12 | 01643-33380 | WASHER | 10201- | |
| 13 | 195-71-11510 | NUT | 10201- | |
| 14 | 198-71-31390 | PIN | 10201- | |
| 15 | 09275-01219 | LOCK | 10201- | |
| 16 | 01010-52460 | BOLT | 10201- | |
| 17 | 01643-32460 | WASHER | 10201- | |
| 18 | 07020-00000 | FITTING,GREASE | 10201- | |
| 19 | 198-71-21561 | PIN | 10201- | |
| 20 | 198-71-21620 | LOCK | 10201- | |
| 21 | 01010-52050 | BOLT | 10201- | |
| 22 | 01643-32060 | WASHER | 10201- | |
| ==================== | ||||
| G-2 | (\8\198-71-X5200) | ARM GROUP | 10201- | |
| ==================== | ||||
| 23 | 198-71-00340 | SHIM ASS'Y | 10201- | |
| \6\ | SHIM¤ 2.0MM | 10201- | ||
| \6\ | SHIM¤ 1.0MM | 10201- | ||
| \6\ | SHIM¤ 0.5MM | 10201- | ||
| 24 | 198-71-31441 | ARM | 10236- | |
| \0\198-71-31440 | ARM | 10201-10235 | ||
| 25 | 198-71-31271 | BALL,STUD (WELDED) | 10236- | |
| 198-71-31270 | BALL,STUD (WELDED) | 10201-10235 | ||
| 26 | 198-71-31291 | CAP | 10236- | |
| 198-71-31290 | CAP | 10201-10235 | ||
| 27 | 198-71-31261 | JOINT (WELDED) | 10236- | |
| 198-71-31260 | JOINT (WELDED) | 10201-10235 | ||
| 28 | 01011-83335 | BOLT | 10201- | |
| 29 | 01643-33380 | WASHER | 10201- | |
| G-3 | (\8\198-71-X3400) | TRUNNION GROUP | 10201- | |
| ==================== | ||||
| 30 | 198-71-21292 | TRUNNION | 10201- | |
| 31 | 01011-83005 | BOLT | 10201- | |
| 32 | 01643-33080 | WASHER | 10201- | |
| ==================== |
