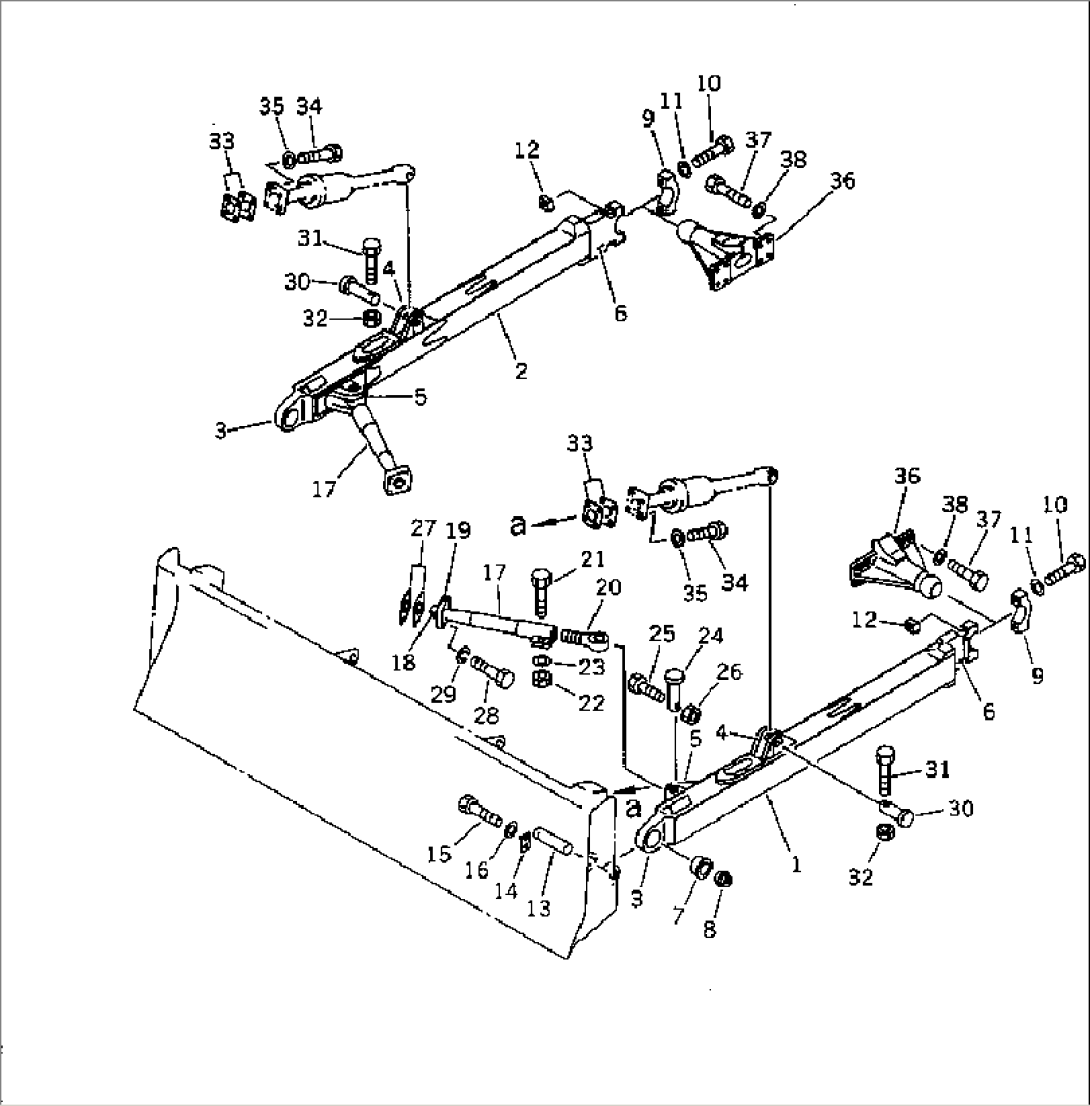

| Item | Part No. | Part Name | Qty | Serial No. |
| 14F-70-00011 | FRAME ASS'Y,L.H. | 51168- | ||
| 14F-70-00010 | FRAME ASS'Y,L.H. | 50001-51167 | ||
| 14F-70-00021 | FRAME ASS'Y,R.H. | 51168- | ||
| 14F-70-00020 | FRAME ASS'Y,R.H. | 50001-51167 | ||
| 1 | \6\ | FRAME,L.H. | 51168- | |
| \6\ | FRAME,L.H. | 50001-51167 | ||
| 2 | \6\ | FRAME,R.H. | 51168- | |
| \6\ | FRAME,R.H. | 50001-51167 | ||
| 3 | 14F-70-81530 | JOINT | 51168- | |
| 14F-70-81230 | JOINT (WELDED) | 50001-51167 | ||
| 4 | 144-Z20-3180 | BRACKET (WELDED) | 50001- | |
| 5 | 144-920-3172 | BRACKET (WELDED) | 50001- | |
| 6 | \6\ | BEARING,(WELDED) (KIT) | 50001- | |
| 7 | 13F-Z27-2250 | BUSHING | 50001- | |
| 8 | 13F-Z27-2260 | BUSHING | 50001- | |
| 9 | 144-Z20-3351 | CAP (KIT) | 50001- | |
| 10 | 01011-82465 | BOLT (KIT) | 50001- | |
| 11 | 01643-32460 | WASHER (KIT) | 50001- | |
| 12 | 130-70-13241 | NUT (KIT) | 50001- | |
| 13 | 144-817-1260 | SHAFT | 50001- | |
| 14 | 144-920-1780 | LOCK | 50001- | |
| 15 | 01010-51635 | BOLT | 50001- | |
| 16 | 01643-31645 | WASHER | 50001- | |
| 17 | 144-817-2324 | BRACE,CENTER | 50001- | |
| 18 | 144-920-2610 | JOINT (WELDED) | 50001- | |
| 19 | 144-817-2420 | RETAINER | 50001- | |
| 20 | 144-817-2570 | JOINT | 50001- | |
| 21 | 01011-52025 | BOLT | 50001- | |
| 22 | 01580-12016 | NUT | 50001- | |
| 23 | 01643-22045 | WASHER | 50001- | |
| 24 | 13F-Z27-5610 | PIN | 50001- | |
| 25 | 01010-51265 | BOLT | 50001- | |
| 26 | 01598-01214 | NUT | 50001- | |
| 27 | 144-817-0611 | SHIM ASS'Y | 50001- | |
| \6\ | SHIM¤ 0.5MM | 50001- | ||
| \6\ | SHIM¤ 1.0MM | 50001- | ||
| 28 | 01010-52070 | BOLT | 50001- | |
| 29 | 01602-22060 | WASHER,SPRING | 50001- | |
| 30 | 13F-Z27-5610 | PIN | 50001- | |
| 31 | 01010-51265 | BOLT | 50001- | |
| 32 | 01598-01214 | NUT | 50001- | |
| 33 | 144-817-0620 | SHIM ASS'Y | 50001- | |
| \6\ | SHIM¤ 0.5MM | 50001- | ||
| \6\ | SHIM¤ 1.0MM | 50001- | ||
| 34 | 01010-51865 | BOLT | 50001- | |
| 35 | 01643-21845 | WASHER | 50001- | |
| 36 | 144-Z17-3160 | TRUNNION | 50001- | |
| 144-Z20-3150 | SHAFT (WELDED) | 50001- | ||
| 37 | 01010-52045 | BOLT | 50001- | |
| 38 | 01643-32060 | WASHER | 50001- | |
| SERVICE KIT | ||||
| 144-Z20-0010 | PIVOT ASS'Y | 50001- | ||
| 6 | \6\ | BEARING | 50001- | |
| 9 | 144-Z20-3351 | CAP | 50001- | |
| 10 | 01011-82465 | BOLT | 50001- | |
| 11 | 01643-32460 | WASHER | 50001- | |
| 12 | 130-70-13241 | NUT | 50001- |
