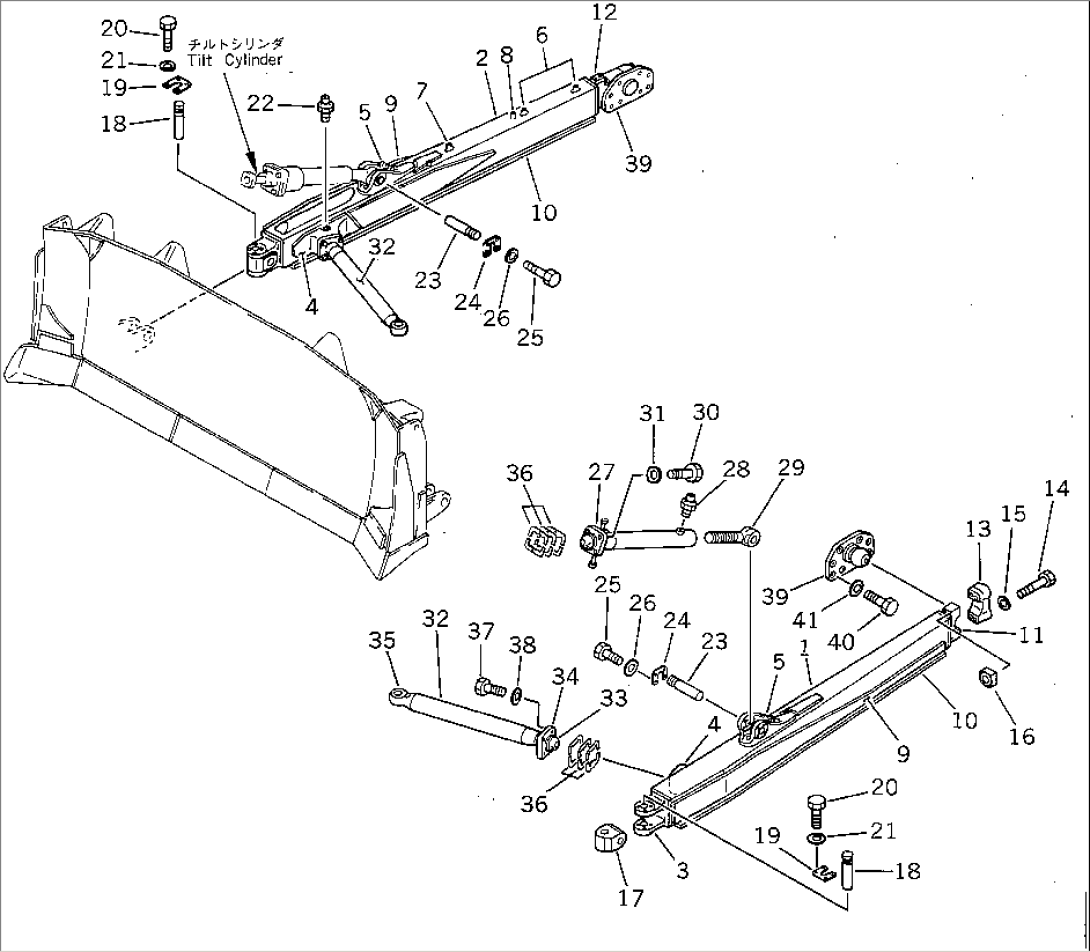

| Item | Part No. | Part Name | Qty | Serial No. |
| G-1 | (\8\175-71-X4200) | FRAME GROUP | 50001- | |
| ==================== | ||||
| 1 | 175-71-31152 | FRAME,L.H. | 50001- | |
| 2 | 175-71-31166 | FRAME,R.H. | 50001- | |
| 3 | 175-71-21182 | BRACKET (WELDED) | 50001- | |
| 4 | 175-71-31173 | BRACKET,L.H. (WELDED) | 50001- | |
| 175-71-31622 | BRACKET,R.H. (WELDED) | 50001- | ||
| 5 | 175-71-31650 | BRACKET,L.H. (WELDED) | 50001- | |
| 175-71-31660 | BRACKET,R.H. (WELDED) | 50001- | ||
| 6 | 195-71-31660 | SEAT (WELDED) | 50001- | |
| 7 | 195-71-31670 | SEAT (WELDED) | 50001- | |
| 8 | 195-71-32160 | SEAT (WELDED) | 50001- | |
| 9 | 175-71-22244 | PLATE,L.H. (WELDED) | 50001- | |
| 175-71-22381 | PLATE,R.H. (WELDED) | 50001- | ||
| 10 | 175-71-22421 | PLATE,L.H. (WELDED) | 50001- | |
| 175-71-22431 | PLATE,R.H. (WELDED) | 50001- | ||
| 11 | 175-71-11272 | BRACKET (WELDED) | 50001- | |
| 12 | 175-71-31311 | BRACKET (WELDED) | 50001- | |
| 13 | 175-71-11482 | CAP | 50001- | |
| 14 | 175-71-11491 | BOLT | 50001- | |
| 15 | 01643-32260 | WASHER | 50001- | |
| 16 | 175-71-11520 | NUT | 50001- | |
| 17 | 175-71-21261 | JOINT | 50001- | |
| 18 | 175-71-21221 | PIN | 50001- | |
| 19 | 175-71-21230 | PLATE,LOCK | 50001- | |
| 20 | 01010-51440 | BOLT | 50001- | |
| 21 | 01643-31445 | WASHER | 50001- | |
| 22 | 07020-00000 | FITTING,GREASE | 50001- | |
| 23 | 154-71-21290 | PIN | 50001- | |
| 24 | 175-71-21330 | PLATE,LOCK | 50001- | |
| 25 | 01010-51435 | BOLT | 50001- | |
| 26 | 01643-31445 | WASHER | 50001- | |
| ==================== | ||||
| G-2 | (\8\15A-71-X1220) | ARM AND BRACE GROUP | 50001- | |
| ==================== | ||||
| 175-71-00233 | BRACE ASS'Y | 50001- | ||
| 27 | 175-71-21272 | BRACE | 50001- | |
| 28 | 07020-00000 | FITTING,GREASE | 50001- | |
| 29 | 175-71-11281 | SCREW | 50001- | |
| 30 | 01011-82700 | BOLT | 50001- | |
| 31 | 01643-32780 | WASHER | 50001- | |
| 32 | 175-71-31293 | ARM | 50001- | |
| 33 | 175-71-31562 | BALL (WELDED) | 50001- | |
| 34 | 175-71-31190 | CAP | 50001- | |
| 35 | 195-71-22681 | JOINT (WELDED) | 50001- | |
| 36 | 175-71-00302 | SHIM ASS'Y | 50001- | |
| \6\ | SHIM¤ 0.5MM | 50001- | ||
| \6\ | SHIM¤ 1.0MM | 50001- | ||
| \6\ | SHIM¤ 2.3MM | 50001- | ||
| 37 | 01011-82700 | BOLT | 50001- | |
| 38 | 01643-32780 | WASHER | 50001- | |
| ==================== | ||||
| G-3 | (\8\15A-71-X1230) | TRUNNION GROUP | 50001- | |
| ==================== | ||||
| 175-70-23133 | TRUNNION | 50001- | ||
| 39 | 175-70-23293 | BALL,STUD (WELDED) | 50001- | |
| 40 | 01010-52450 | BOLT | 50001- | |
| 41 | 01643-32460 | WASHER | 50001- | |
| ==================== |
