| Item | Part No. | Part Name | Qty | Serial No. |

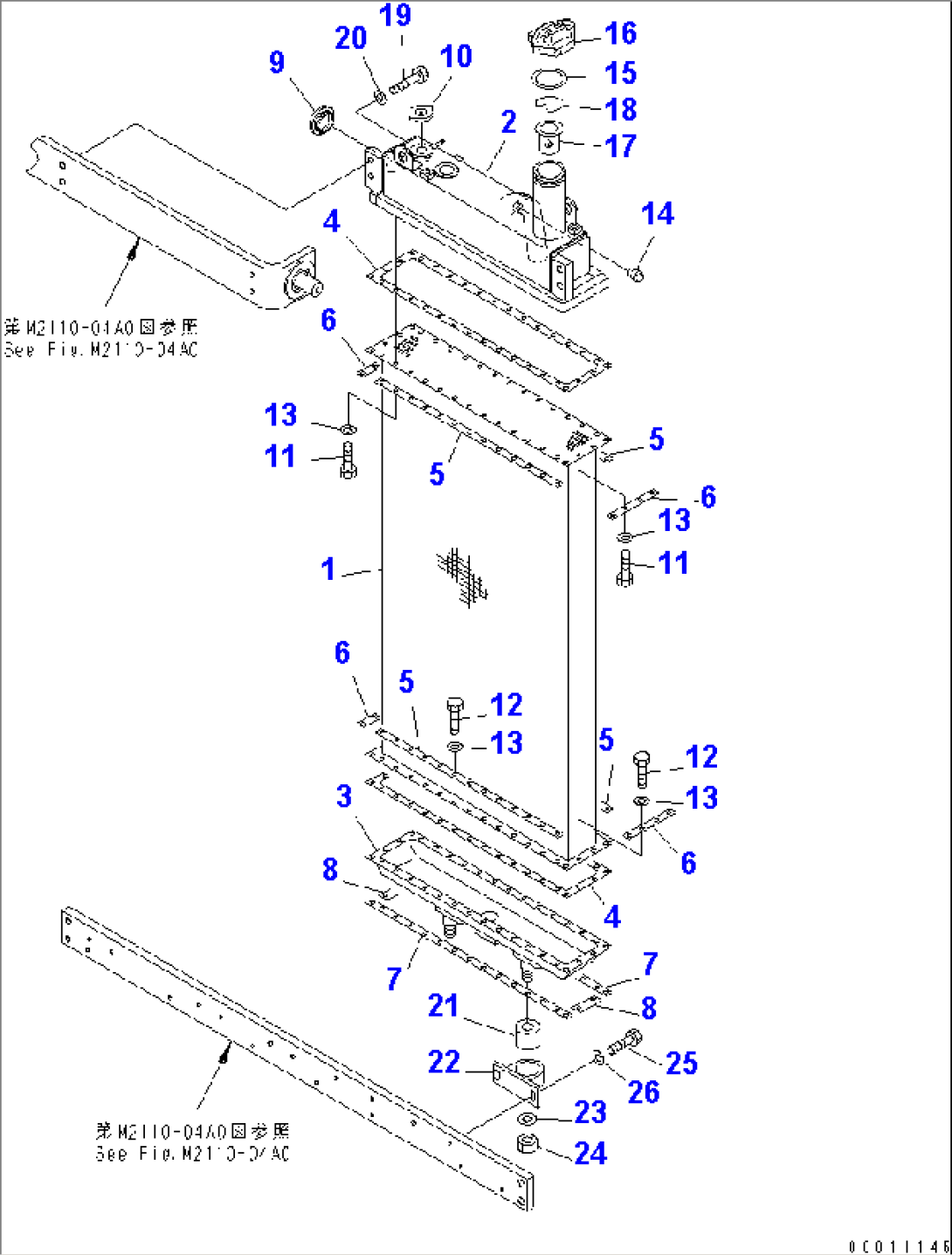

| 198-03-72500 | RADIATOR ASS'Y | 20001- | ||
| 1 | 198-03-71510 | CORE | 20001- | |
| 2 | 198-03-72670 | TANK,UPPER | 20001- | |
| 3 | 198-03-62430 | TANK LOWER,LOWER | 20001- | |
| 4 | 198-03-62441 | GASKET | 20001- | |
| 5 | 198-03-62450 | PLATE | 20001- | |
| 6 | 198-03-62460 | PLATE | 20001- | |
| 7 | 198-03-62470 | PLATE | 20001- | |
| 8 | 198-03-62480 | PLATE | 20001- | |
| 9 | 198-03-62490 | GAUGE | 20001- | |
| 10 | 201-03-51310 | CAP | 20001- | |
| 11 | 01010-81035 | BOLT | 20001- | |
| 12 | 01010-81040 | BOLT | 20001- | |
| 13 | 01643-31232 | WASHER | 20001- | |
| 14 | 07042-70108 | PLUG | 20001- | |
| 15 | 07053-00002 | GASKET | 20001- | |
| 16 | 07093-20000 | CAP | 20001- | |
| 17 | 07056-00048 | STRAINER | 20001- | |
| 18 | 07057-03271 | RING,SNAP | 20001- | |
| 19 | 01010-81650 | BOLT | 20001- | |
| 20 | 01643-31645 | WASHER | 20001- | |
| 21 | 19M-03-11440 | CUSHION | 20001- | |
| 22 | 198-03-51272 | BRACKET | 20001- | |
| 23 | 01643-32460 | WASHER | 20001- | |
| 24 | 01580-12419 | NUT | 20001- | |
| 25 | 01010-81240 | BOLT | 20001- | |
| 26 | 01643-31232 | WASHER | 20001- |
