| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22T-75-21540 | BRACKET | 15301- | |
| 2 | 22T-75-28750 | COVER | 15301- | |
| 3 | 01435-01020 | BOLT | 15301- | |
| 4 | 23W-05-19120 | SWITCH,PROXIMITY | 15301- | |
| 5 | 01641-21223 | WASHER | 15301- |
- Главная
- Каталог запчастей
- Автокраны
- Lw100 1x s/n 15001 up (x type)
- Work equipment
- Sub winch (support and cover and proximity switch) (high speed winch)(#15301 )
Поиск по каталогу

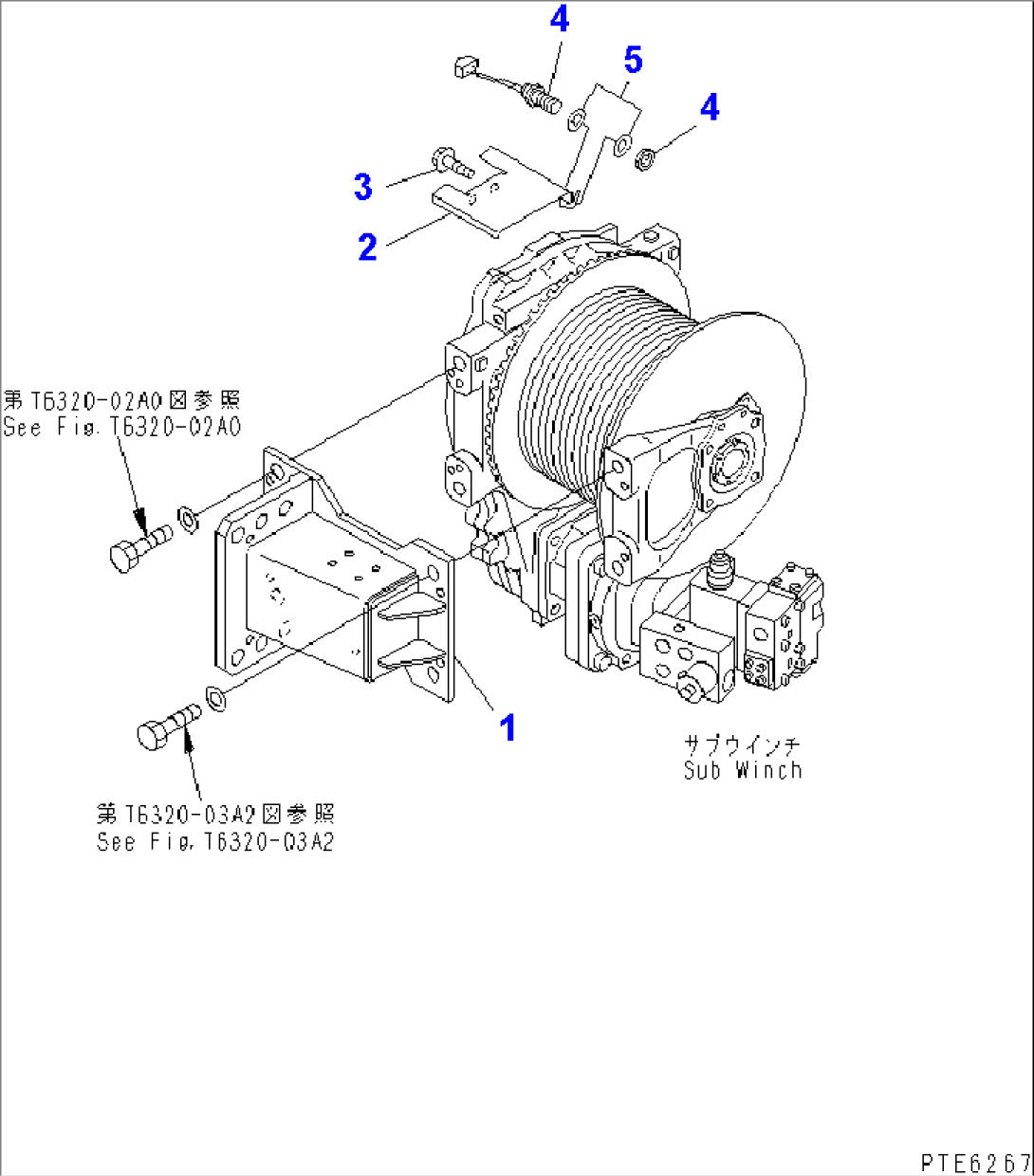

SUB WINCH (SUPPORT AND COVER AND PROXIMITY SWITCH) (HIGH SPEED WINCH)(#15301-)
