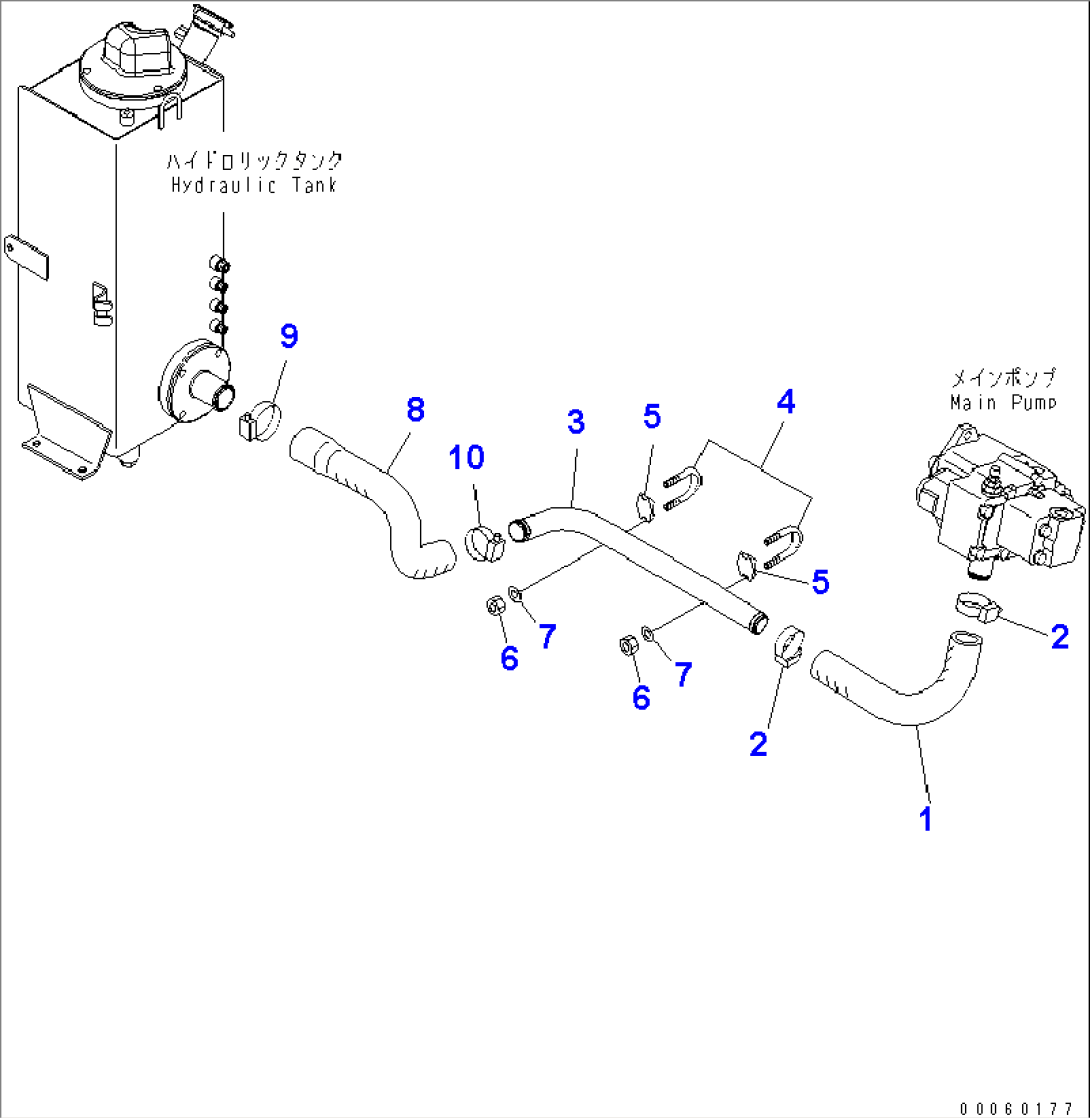

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22K-62-22211 | HOSE | 15001- | |
| 2 | 07289-00045 | CLAMP | 15001- | |
| 3 | 22K-62-22231 | TUBE | 15001- | |
| 4 | 07283-33450 | CLIP | 15001- | |
| 5 | 07283-53444 | SEAT | 16268- | |
| 6 | 01597-01009 | NUT | 15001- | |
| 7 | 01643-31032 | WASHER | 15001- | |
| 8 | 22K-62-22221 | HOSE | 15001- | |
| 9 | 07289-00055 | CLAMP | 15001- | |
| 10 | 07289-00045 | CLAMP | 15001- |
