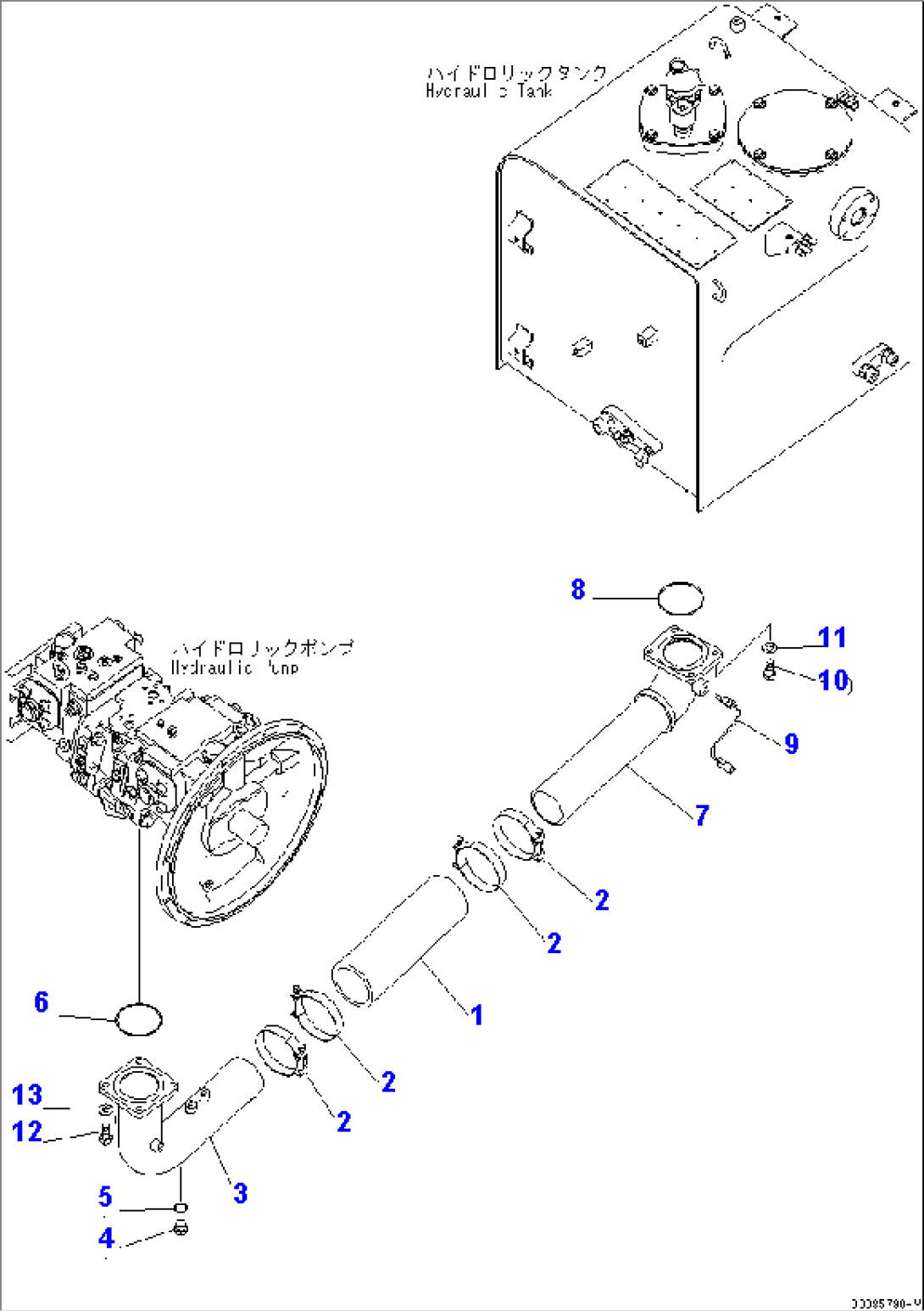

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-09936 | HOSE | 1001- | |
| 2 | 208-62-73910 | CLAMP | 1001- | |
| 3 | 208-62-74870 | TUBE | 1023- | |
| 4 | 07040-12414 | PLUG | 1001- | |
| 5 | 07002-12434 | O-RING | 1001- | |
| 6 | 07000-12105 | O-RING | 1001- | |
| 7 | 207-62-71141 | TUBE | 1001- | |
| 8 | 07000-12105 | O-RING | 1001- | |
| 9 | 7861-93-3320 | SENSOR | 1001- | |
| 10 | 01010-81240 | BOLT | 1023- | |
| 11 | 01643-31232 | WASHER | 1023- | |
| 12 | 01010-81255 | BOLT | 1023- | |
| 13 | 01643-31232 | WASHER | 1023- |
