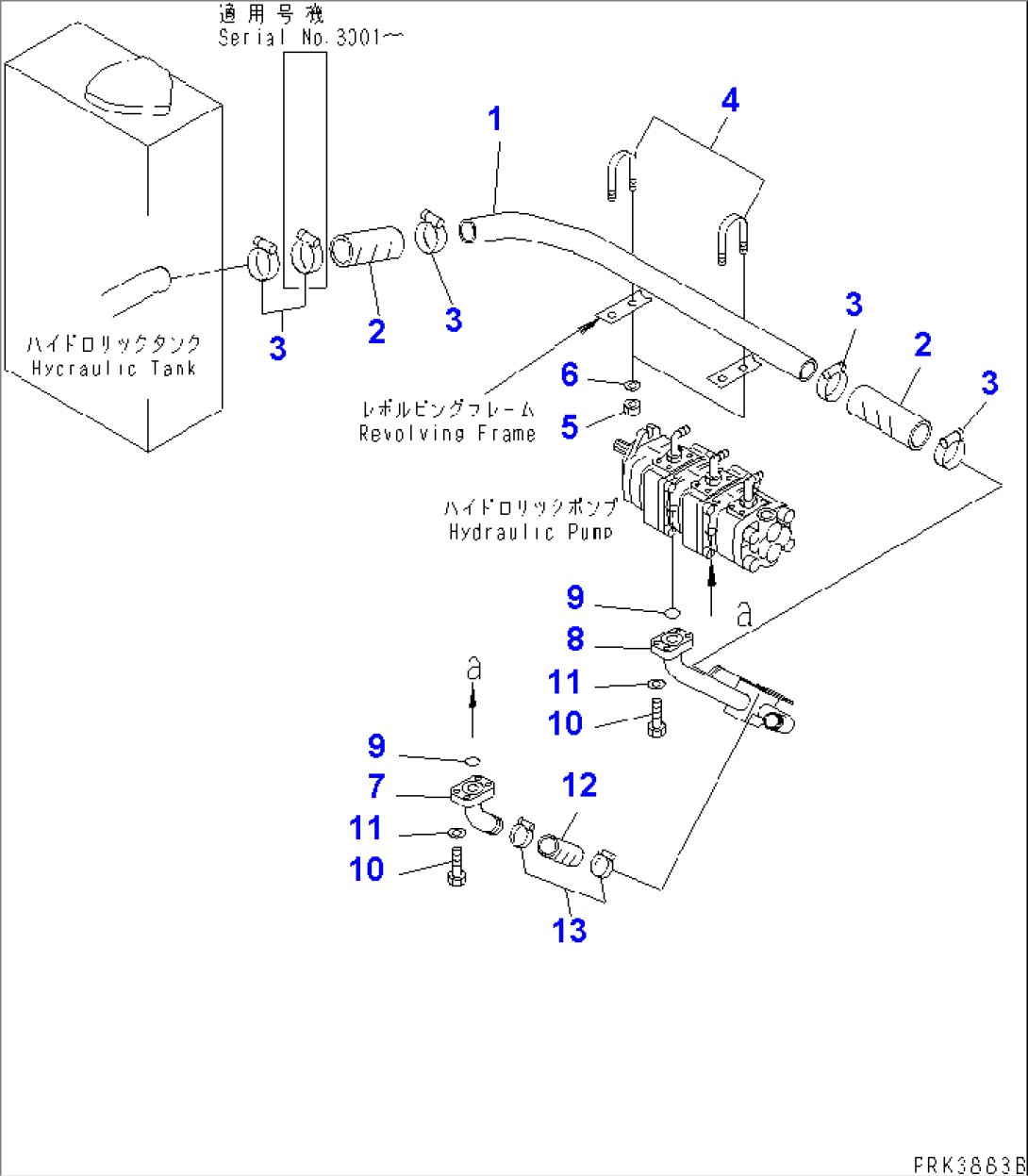

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21X-62-21221 | TUBE | 3001- | |
| 2 | 07260-04117 | HOSE | 3001- | |
| 3 | 07289-00055 | CLAMP | 5884- | |
| 07281-00609 | CLAMP | 3001-5883 | ||
| 4 | 07283-24346 | CLIP | 3001- | |
| 5 | 01599-01011 | NUT | 3001- | |
| 6 | 01643-31032 | WASHER | 3001- | |
| 7 | 21X-62-21243 | PIPE | 5872- | |
| 21X-62-21242 | PIPE | 4483-5871 | ||
| 8 | 21X-62-21233 | PIPE | 5872- | |
| 21X-62-21232 | PIPE | 4483-5871 | ||
| 9 | 07000-03025 | O-RING | 3001- | |
| 10 | 01010-80830 | BOLT | 3001- | |
| 11 | 01602-20825 | WASHER | 3001- | |
| 12 | 07260-02611 | HOSE | 5884- | |
| 07260-02609 | HOSE | 3001-5883 | ||
| 13 | 07289-00045 | CLAMP | 5884- | |
| 07281-00419 | CLAMP | 3001-5883 |
