| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-62-41321 | TUBE | C60001- | |
| 2 | 07000-12100 | O-RING | C60001- | |
| 3 | 7861-93-3320 | SENSOR | C60001- | |
| 4 | 07260-08732 | HOSE | C60001- | |
| 5 | 20Y-62-51671 | CLAMP | C62001- | |
| 6 | 01010-81235 | BOLT | C60001- | |
| 7 | 01643-31232 | WASHER | C60001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc200 8 s/n c60001 up
- Hydraulic system
- Suction line(#c62001 )
Поиск по каталогу

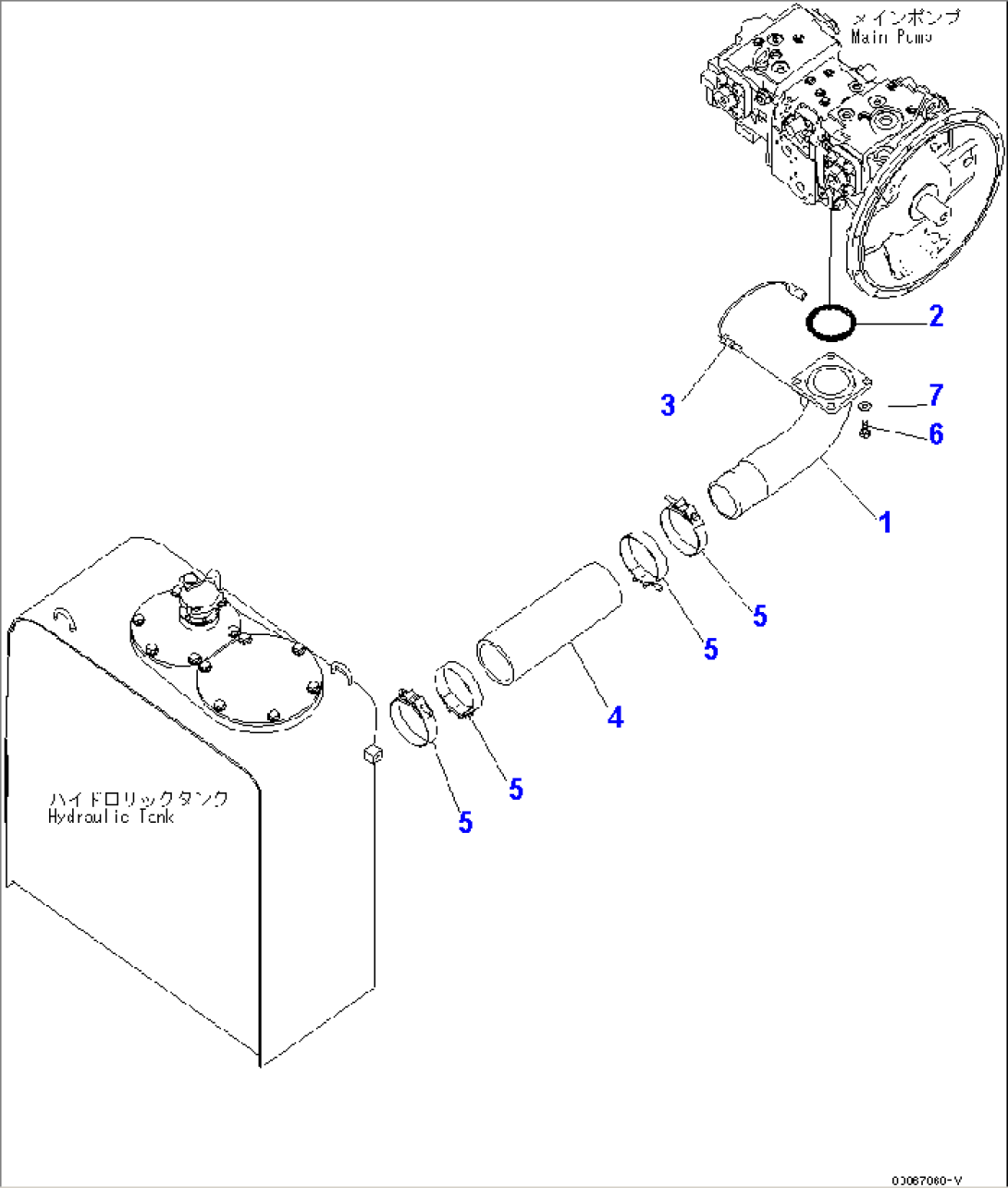

SUCTION LINE(#C62001-)
