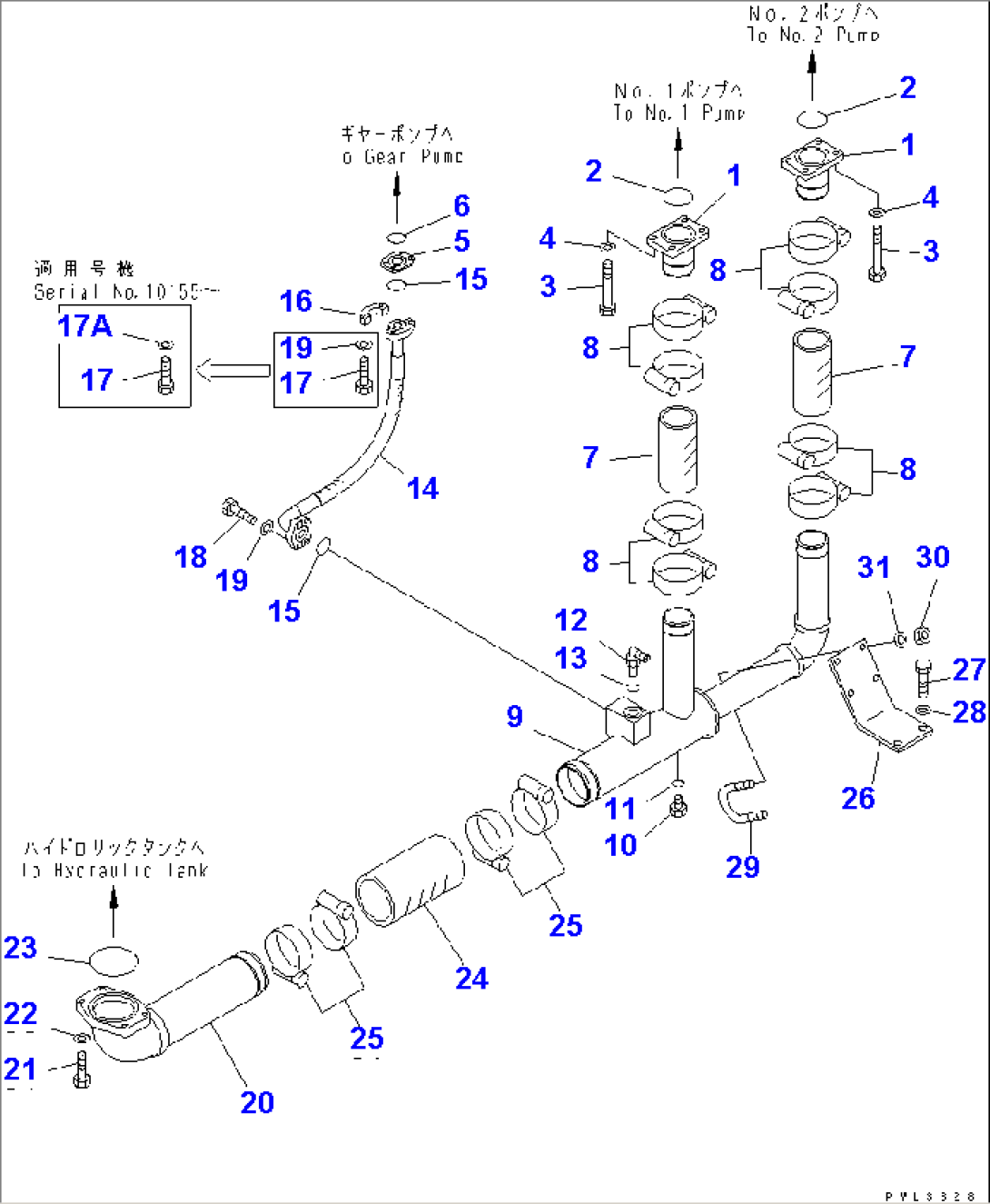

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21N-62-31140 | TUBE | 10001-@ | |
| 2 | 07000-12080 | O-RING | 10001-@ | |
| 3 | 01010-81240 | BOLT | 10001-@ | |
| 4 | 01643-31232 | WASHER | 10001-@ | |
| 5 | 07373-31400 | SPACER | 10001-@ | |
| 6 | 07000-13048 | O-RING | 10001-@ | |
| 7 | 07260-07420 | HOSE | 10001-10999 | |
| 8 | 07289-00095 | CLAMP | 10001-10999 | |
| 9 | 21M-62-11541 | TUBE | 10001-10999 | |
| 10 | 07040-12412 | PLUG | 10001-10999 | |
| 11 | 07002-12434 | O-RING | 10001-10999 | |
| 12 | 07235-10628 | ELBOW | 10001-10999 | |
| 13 | 07002-12434 | O-RING | 10001-10999 | |
| 14 | 07298-01407 | HOSE | 10001-@ | |
| 15 | 07000-13048 | O-RING | 10001-@ | |
| 16 | 07371-31465 | FLANGE | 10001-@ | |
| 17 | 07372-21245 | BOLT | 10001-@ | |
| 17A | 01643-51232 | WASHER | 10155-@ | |
| 18 | 07372-21240 | BOLT | 10001-@ | |
| 19 | 01643-51232 | WASHER | 10155-@ | |
| 01643-51232 | WASHER | 10001-10154 | ||
| 20 | 21M-62-11530 | TUBE | 10001-@ | |
| 21 | 01010-81245 | BOLT | 10001-@ | |
| 22 | 01643-31232 | WASHER | 10001-@ | |
| 23 | 07000-12120 | O-RING | 10001-@ | |
| 24 | 209-62-55141 | HOSE | 10001-@ | |
| 25 | 07289-00145 | CLAMP | 10001-@ | |
| 26 | 21M-62-11640 | BRACKET | 10001-10999 | |
| 27 | 01010-81230 | BOLT | 10001-@ | |
| 28 | 01643-31232 | WASHER | 10001-@ | |
| 29 | 07283-37671 | CLIP | 10001-@ | |
| 30 | 01597-01009 | NUT | 10001-@ | |
| 31 | 01643-31032 | WASHER | 10001-@ |
