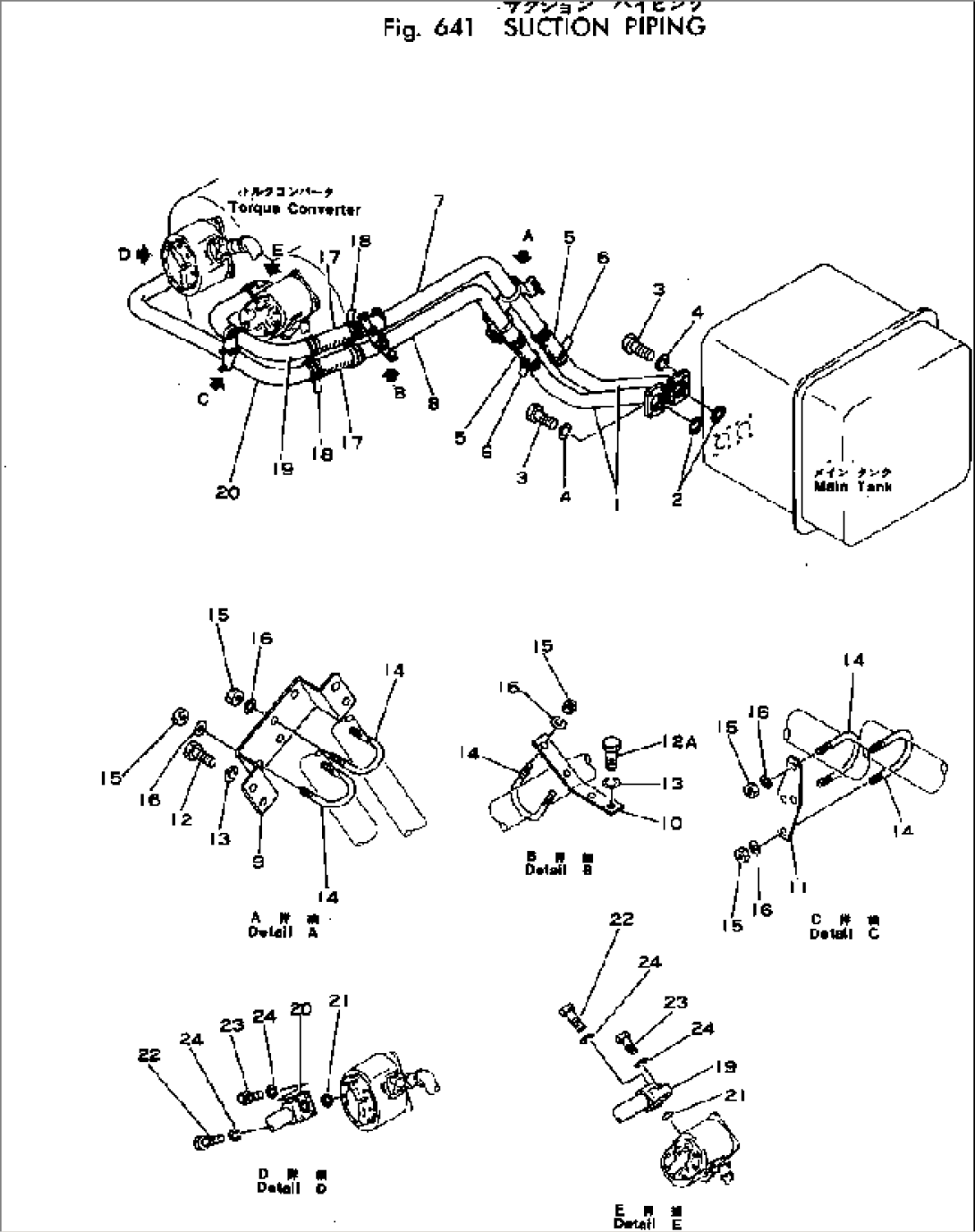

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-61-11111 | TUBE | 1002- | |
| 2 | 07000-12075 | O-RING | 1069- | |
| 2 | \0\07000-22075 | O-RING | 1002-1068 | |
| 3 | 01010-51235 | BOLT | 1002- | |
| 4 | 01602-21236 | WASHER | 1002- | |
| 5 | 07260-25822 | HOSE | 1002- | |
| 6 | 07281-10809 | CLAMP | 1002- | |
| 7 | 569-61-11121 | TUBE | 1002- | |
| 8 | 569-61-11131 | TUBE | 1002- | |
| 9 | 566-61-11282 | BRACKET | 1069- | |
| 9 | 566-61-11281 | BRACKET | 1002-1068 | |
| 10 | 569-61-11311 | BRACKET | 1069- | |
| 10 | 569-61-11310 | BRACKET | 1002-1068 | |
| 11 | 569-61-11330 | PLATE | 1002- | |
| 12 | 01010-51225 | BOLT | 1002- | |
| 12A | 01010-51230 | BOLT | 1069- | |
| 12A | 01010-51225 | BOLT | 1002-1068 | |
| 13 | 01602-21236 | WASHER | 1002- | |
| 14 | 07283-26155 | CLIP | 1002- | |
| 15 | 01599-01011 | NUT | 1002- | |
| 16 | 01643-31032 | WASHER | 1002- | |
| 17 | 07260-25822 | HOSE | 1002- | |
| 18 | 07281-10809 | CLAMP | 1002- | |
| 19 | 569-61-11140 | TUBE | 1002- | |
| 20 | 569-61-11150 | TUBE | 1002- | |
| 21 | 07000-12075 | O-RING | 1069- | |
| 21 | \0\07000-22075 | O-RING | 1002-1068 | |
| 22 | 01010-51275 | BOLT | 1002- | |
| 23 | 01010-51260 | BOLT | 1002- | |
| 24 | 01602-21236 | WASHER | 1002- |
