| Item | Part No. | Part Name | Qty | Serial No. |
| 700-81-81000 | VALVE ASSEMBLY, SUCTION | |||
| 1 | 700-80-62310 | SLEEVE | ||
| 2 | 07002-03034 | O-RING | ||
| 3 | 700-80-62250 | SPRING | ||
| 4 | 700-80-63320 | VALVE | ||
| 5 | 700-80-62350 | SEAL |
- Главная
- Каталог запчастей
- Колесные погрузчики
- 518 s/n c005001 up
- Work equipment control system
- Suction valve 2 spool or 3 spool control valve
Поиск по каталогу

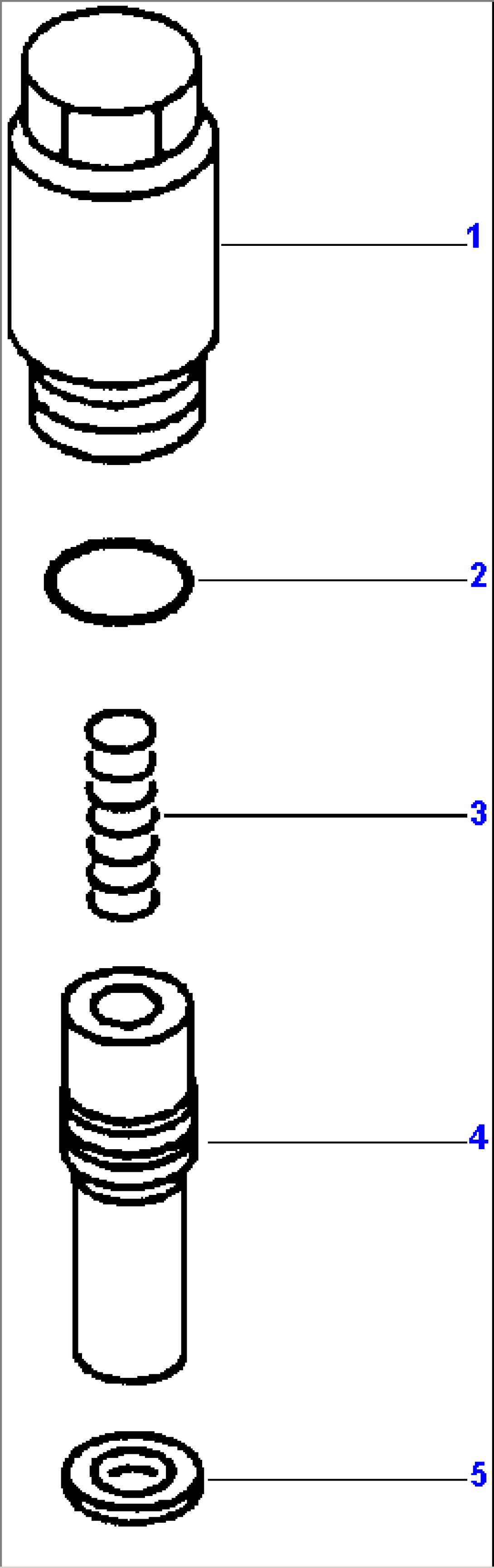

SUCTION VALVE 2-SPOOL OR 3-SPOOL CONTROL VALVE
